Delta 500 all terrain

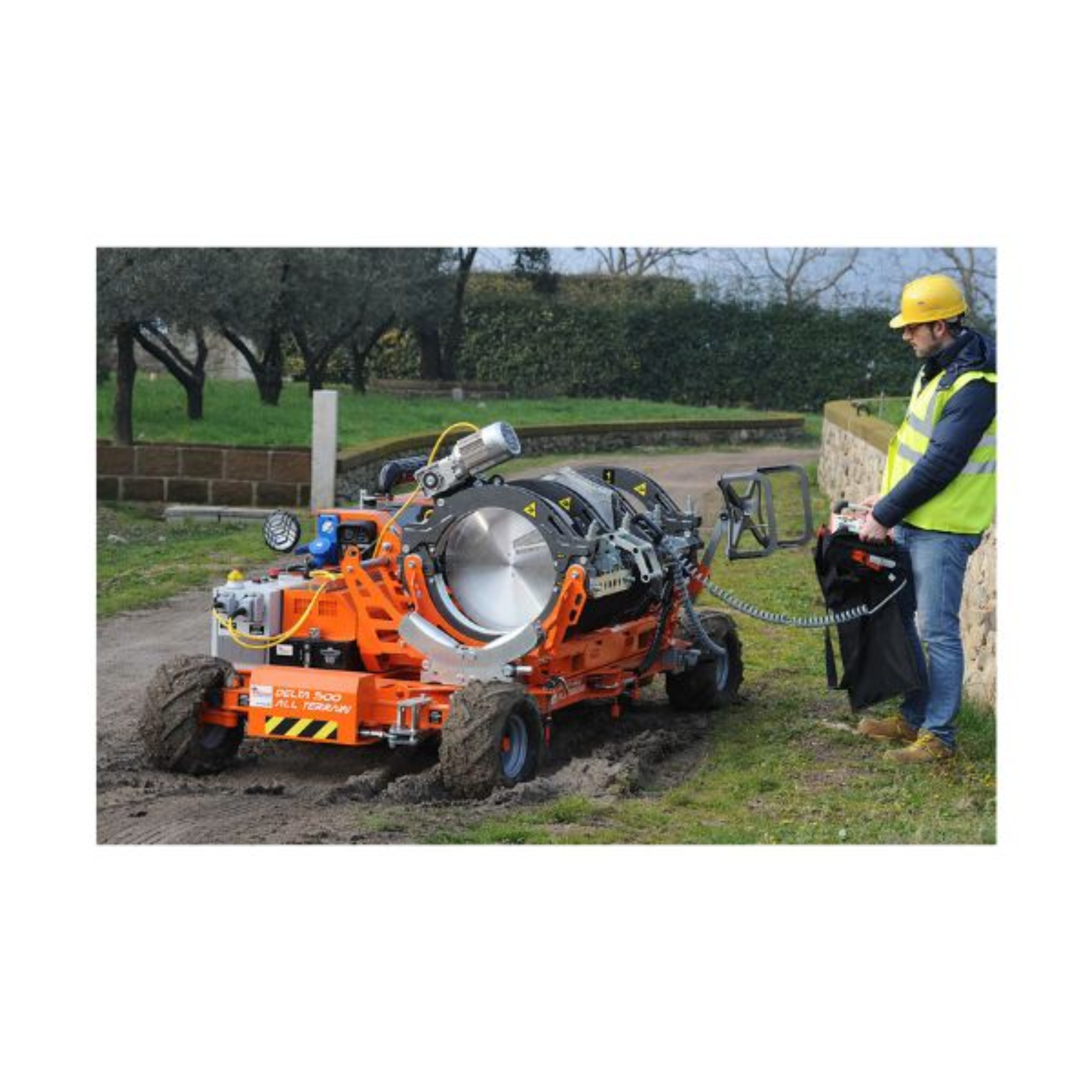

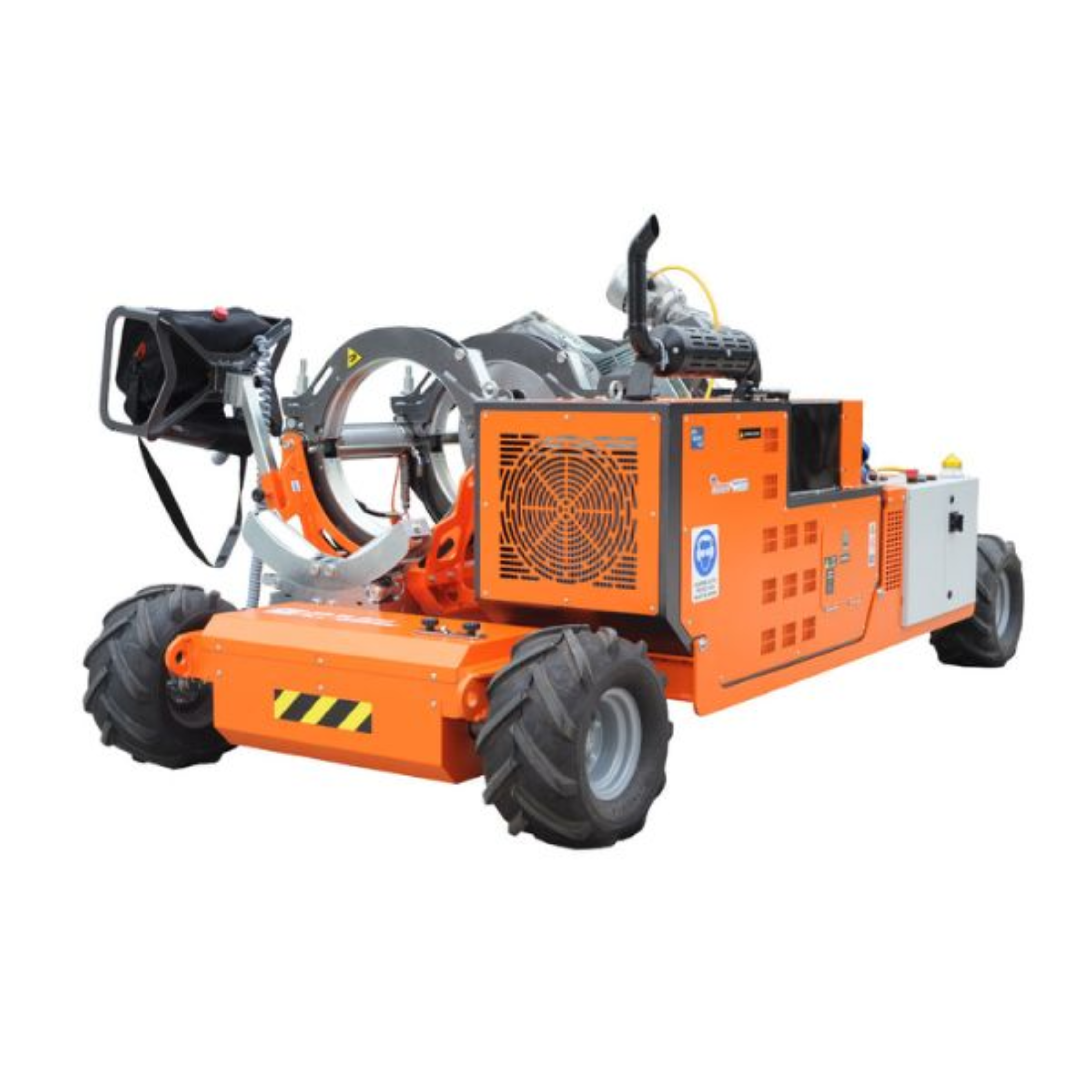

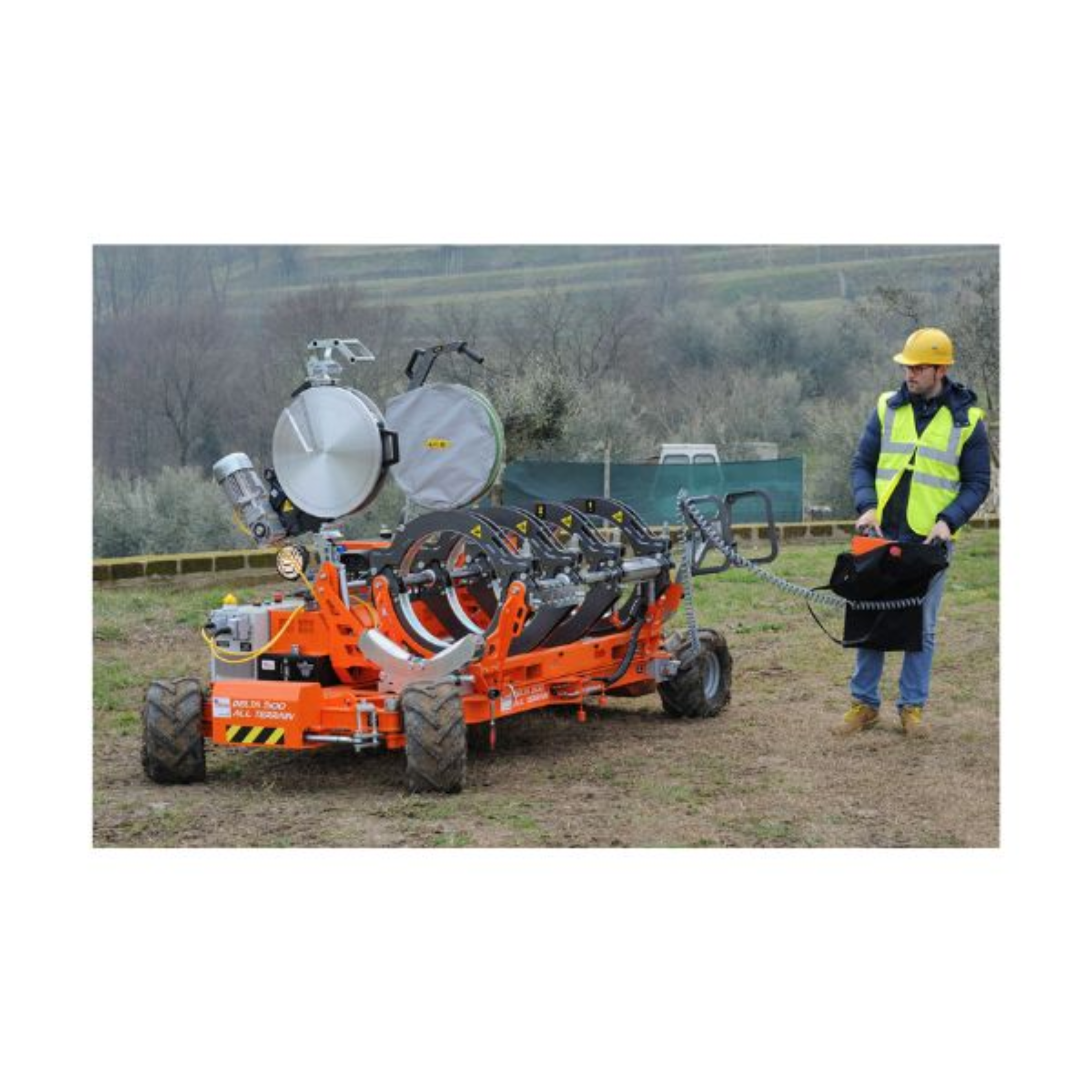

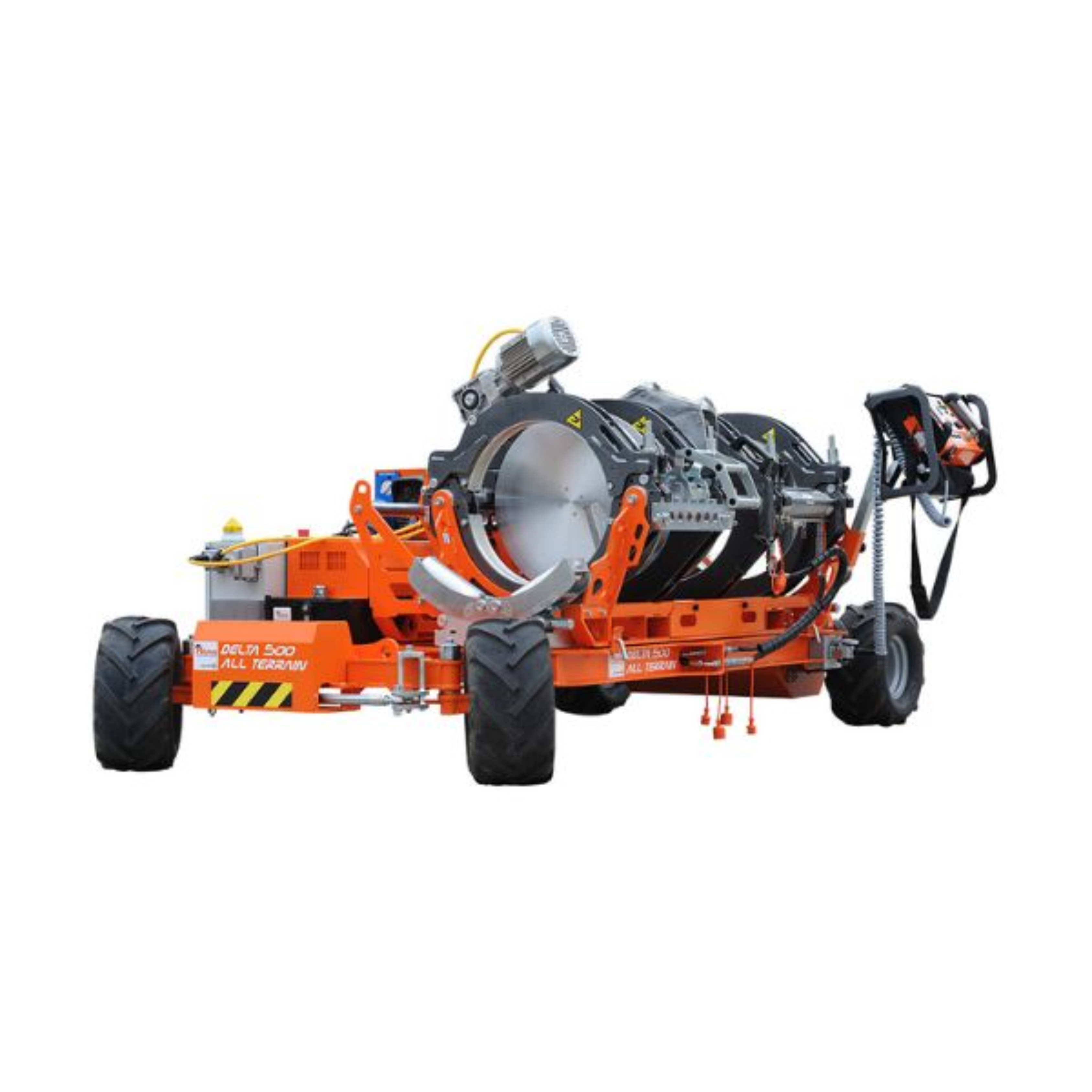

DELTA 500 ALL TERRAIN is powered by a low-vibration diesel engine and equipped with front steering wheels and rear traction. The machine is suitable for welding pressure pipes (HDPE, PP) for the transportation of water, gas and other fluids up to Ø 500 mm (20 “IPS).
Built according to the International standards ISO 21307 HIGH PRESSURE.
- Delivered across India
- Operator training offered
- 1 Year Warranty
- Call +91 9003096815 for Queries
DELTA 500 ALL TERRAIN is powered by a low-vibration diesel engine and equipped with front steering wheels and rear traction. The machine is suitable for welding pressure pipes (HDPE, PP) for the transportation of water, gas and other fluids up to Ø 500 mm (20 “IPS).
Built according to the International standards ISO 21307 HIGH PRESSURE.
– Working range from Ø 200 to 500 mm (6″ IPS ÷ 20″ IPS)
– Welds fittings like elbows, tees, Y-branches and stub flanges
– New RITMO assisted system to open/close/lift clamps-heater-facer
– Fast-locking system which allows to place and remove inserts in seconds
– Easy Life welding system
– GPS traceability
– Data-logging included
– Memory up to 4000 joint reports – downloadable straight into a PDF file
– Possibility to pre-set 20 customized
– USB port for firmware upgrade

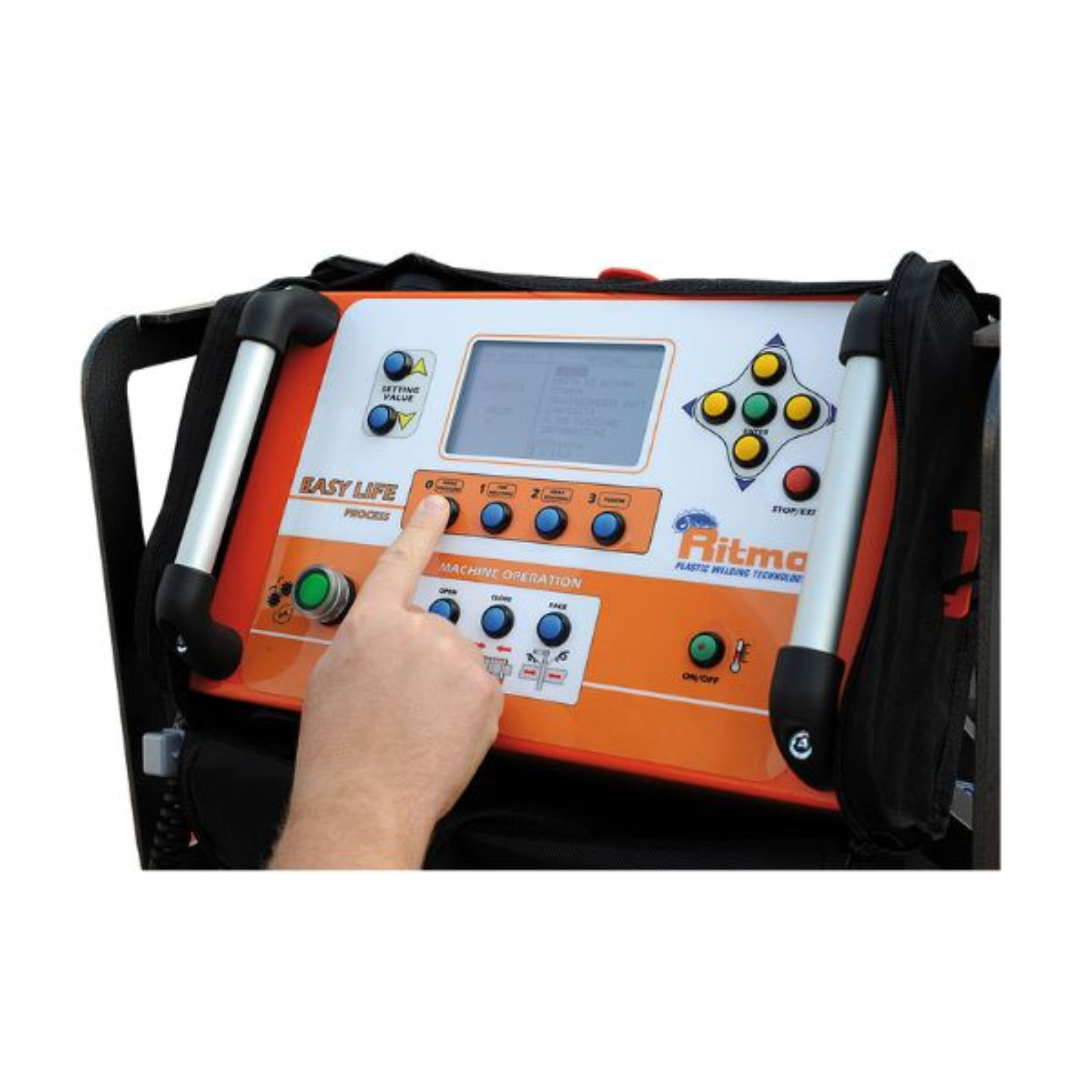

– Intuitive control panel and large graphic display

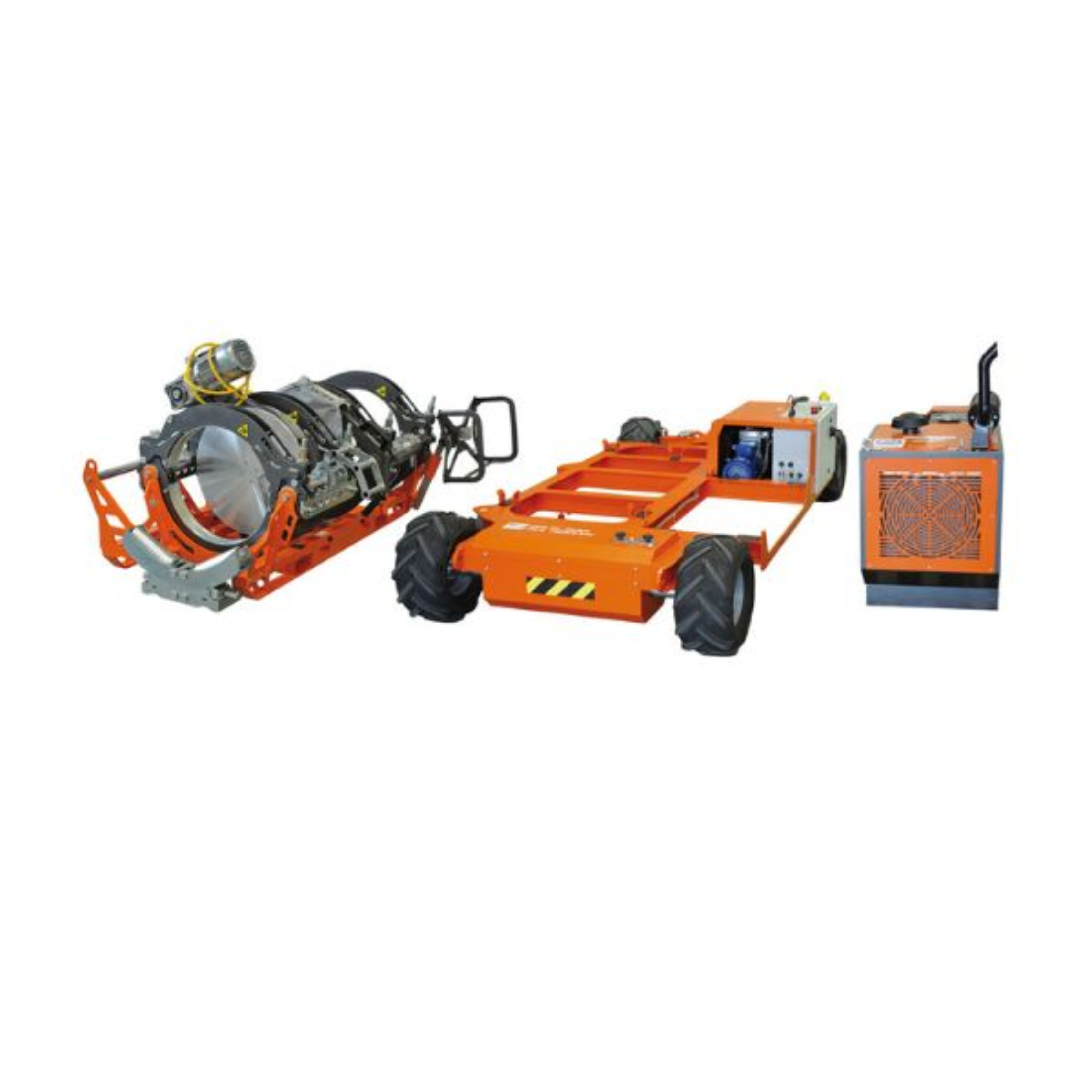

– Machine body and on-board generator easily removable for working in tight spaces
– Machine can be powered using 230 V Three phase 50/60 Hz
– Wheeled chassis designed to be lifted using a forklift
– Two lateral rollers that can be operated by a cordless drill
– On-board electric facer that is equipped with a safety microswitch
– On-board generator removable for independent use
Patented by Ritmo
EP2860430
ON REQUEST (ACCESSORIES)
– Clamps’ inserts from Ø 200 to 500 mm; 6″ ÷ 18″ IPS; 6″ ÷ 18 ” DIPS
– Tool for flange necks
– Track Conversion Systems
– Kit for data transfer to printer ESC-POS
– HS ROLLERS 630
Materials | HDPE/PP |
Working range | Ø 200 ÷ 500 mm 6″ IPS ÷ 20″ IPS |
Power supply | Self contained – diesel engine KUBOTA on-board
or 230 V Three Phase 50/60 Hz |
Total abdorbed power | 7250 W |
Working temperature | 180° ÷ 280° |
Outside temperature range | -10° ÷ 40° C |
Weight machine body | 580 Kg |
Weight standard composition | 1350 Kg |
Dimensions machine body | 1822 x 1152 x 990 mm |
Dimensions trolley | 2955 x 1578 x 1370 mm |
