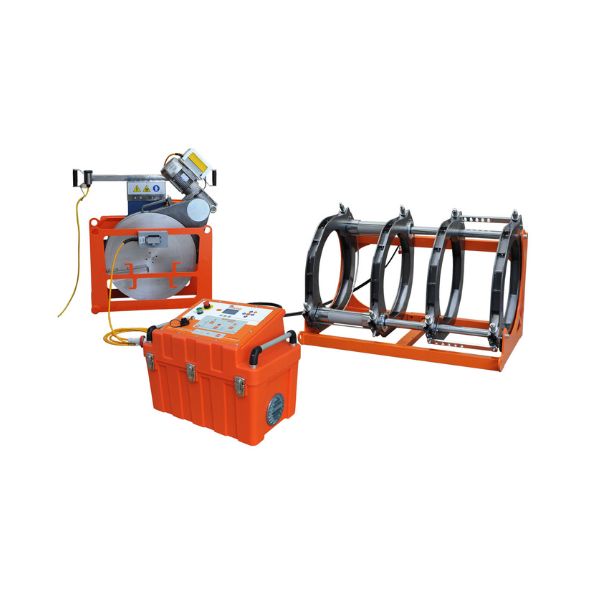

Basic 500 Easy Life

Thanks to a special gearcase, the DELTA 500 EASY LIFE is able to manage the welding process in a semi-automatic way from OD 200 to 500 mm.

With DELTA 500 EASY LIFE is possible to weld fittings such as elbows, tees, wyes and stub ends. This is possible because the 3rd clamp can be anchored to the 1st and 2nd (movable) and slide along with the pipe. The fitting have to be locked in the 4th clamp. Short neck stub ends can be welded with the help of a special tool (on request).

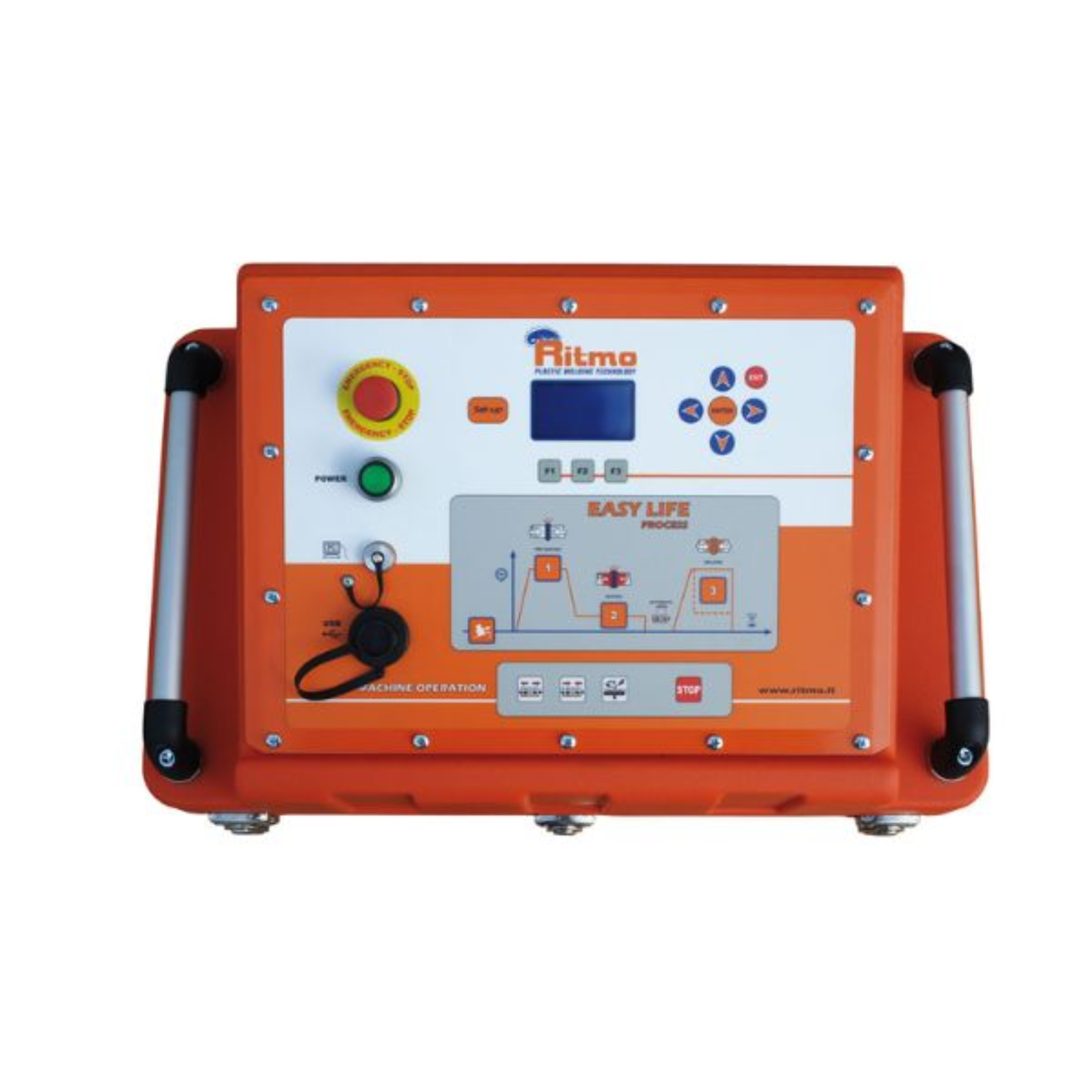

The electronic system guarantees the continuous repeat of the welding cycles and automatic control of the preset parameters, therefore the operator needs only to validate the welding phases. The user-friendly graphic display allows a quick setting of the desired parameters.

The EASY LIFE system can store up to 4000 welding cycles and sum them up into a PDF file. This report can be transferred to a PC/laptop through a USB port.
Possibility to pre-set 50 customized.
The EASY LIFE system data-logging now shows the time!

– A machine body with a steel bearing frame

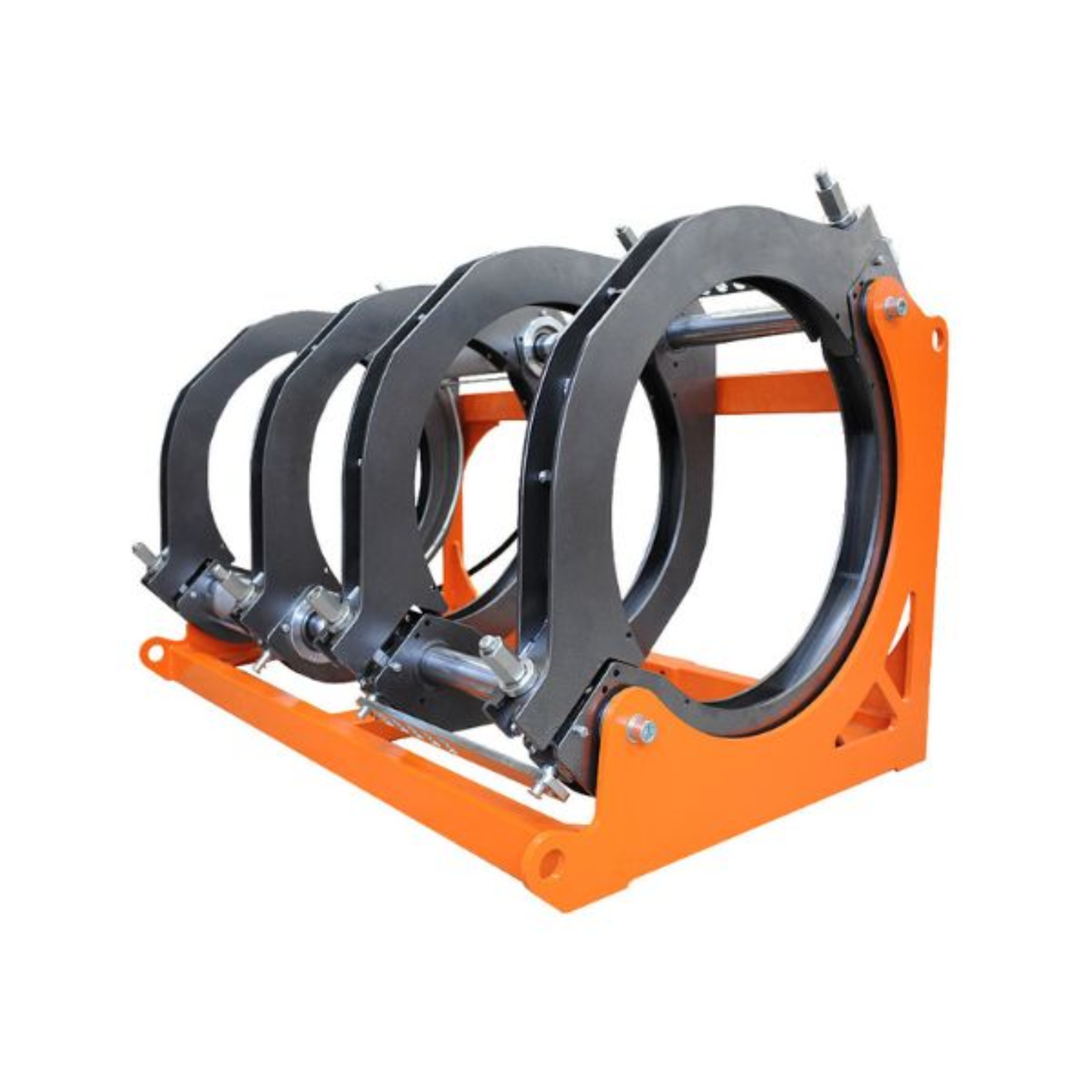

– Clamps in steel
– Insert in steel with quick locking/unlocking system. No tools required
– Self detaching device: helps removing the heating plate during welding procedure
– An extractable heating plate with separate thermometer for reading the working temperature
– An extractable electric milling cutter with a safety microswitch and overload cutout
– Milling cutter’s plastic control box is protected by a metal frame
– Unlocking Milling Cutter, fast removing system to speed up the extraction from machine body
– An electrohydraulic gearcase EASY LIFE
– A milling cutter/heating plate support

ON REQUEST (ACCESSORIES)
– Clamps’ inserts from Ø 200 to 450 mm
– Tool for flange necks
– Electrical crane
– Special transport wooden case (DELTA 500 only)
– Special transport wooden case (machine body with trolley)
– Wooden case for inserts
– Machine body trolley
– Rollers
