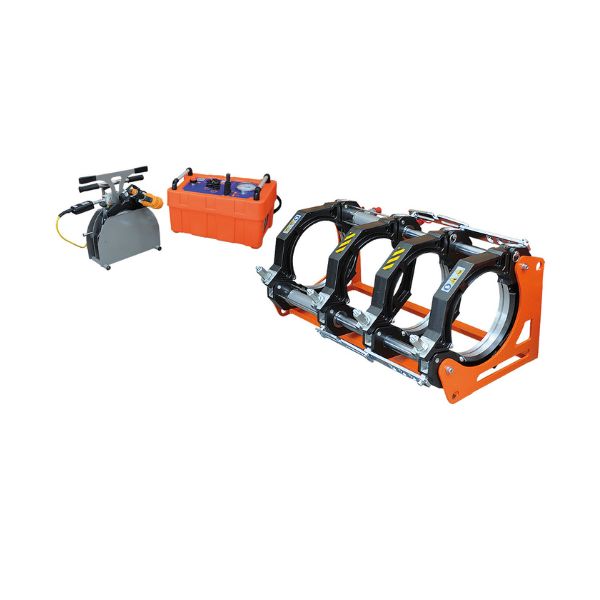

Basic 250

BASIC 250 is able to weld fittings such as elbows, tees, Y-branches and flange necks without any additional equipment by simply fixing the clamps’ drag bar.

– A machine body with 4 clamps and 2 hydraulic cylinders with fast non-drip couplings
– An extractable heating plate with DIGITAL DRAGON, high – precision electronic thermo-regulator
– An extractable milling cutter, with safety micro-switch
– An electrohydraulic gearcase, with a clamp opening and closing lever
– A hydraulic hoses with non – drip quick couplings
– Adapters SMARTLocK from Ø 75 to 225 mm

Request Quote
  • Check Mark Delivered across India
  • Check Mark Operator training offered
  • Check Mark 1 Year Warranty
  • Check Mark Call +91 9003096815 for Queries
    Guaranteed Safe And Secure Delivery

    BASIC 250 is able to weld fittings such as elbows, tees, Y-branches and flange necks without any additional equipment by simply fixing the clamps’ drag bar.

    – A machine body with 4 clamps and 2 hydraulic cylinders with fast non-drip couplings
    – An extractable heating plate with DIGITAL DRAGON, high – precision electronic thermo-regulator
    – An extractable milling cutter, with safety micro-switch
    – An electrohydraulic gearcase, with a clamp opening and closing lever
    – A hydraulic hoses with non – drip quick couplings
    – Adapters SMARTLocK from Ø 75 to 225 mm

    Patent by Ritmo
    EP1743741 B1 – US 7334785

    ON REQUEST (ACCESSORIES)
    – Tool for flange necks;
    – Trolley;
    – Rollers;
    – THE INSPECTOR Data-logging

    Materials HDPE – PP – PB – PVDF
    Working range Ø 75 ÷ 250 mm
    Power supply 110 V; 230 V 50/60 Hz
    Total absorbed power 3450 W
    Working temperature 180° ÷ 280° C
    Pressure working range 0 ÷ 150 bar
    Weight only body machine 63 Kg
    Dimension 850x470x400 mm
