Delta 500 trailer

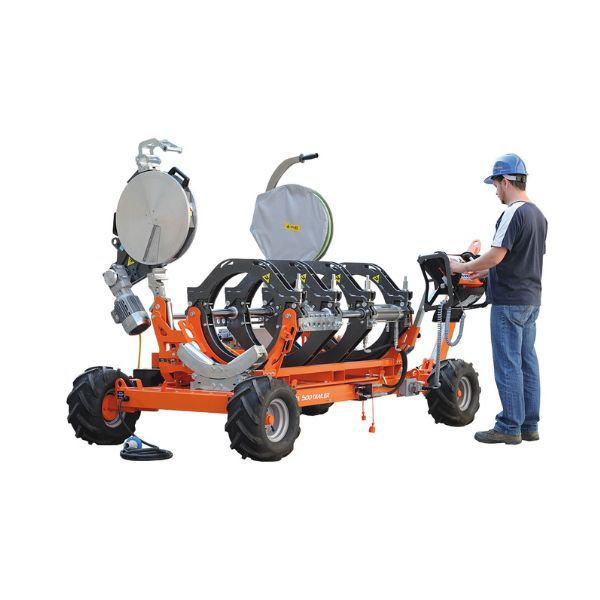

DELTA 500 TRAILER is a self-aligning fusion machine, suitable for welding thermoplastic pipes for the transport of water, gas and other fluids under pressure, up to Ø 500 mm.

Machine can fuse pipe according to the ISO 21307 High Pressure standard.

Standard machine features:

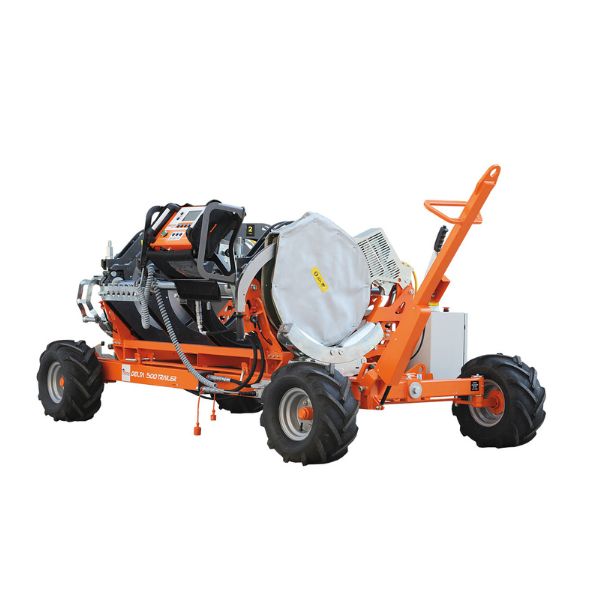

– Machine body mounted on a 4 wheeled chassis, easily removable for working in tight spaces
– New RITMO Patented assisted system to open/close/lift clamps-heater-facer
– Machine body with an automatic heating plate detaching device: helps removing the heating plate safely and fast
– Features the RITMO fast-locking inserts, which allows to place and remove inserts in seconds
– 4 wheeled chassis with 2 steering wheels and a safety brake
– An on-board electric facer that is equipped with a safety microswitch to prevent from accidental starts, a thermal circuit breaker to protect motor and also features an ergonomic docking system and on/off switches
– An on-board heating plate Teflon-coated (PTFE) which comes with a high-temperature-proof bag, which also avoid the heating element from being scratched

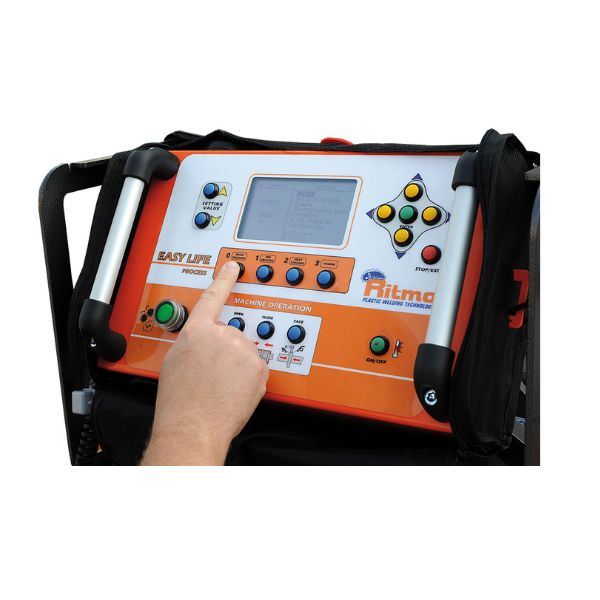

– An EASY LIFE control panel with a large graphic display and GPS traceability, which is also removable from the machine body to be able to weld from outside the ditch. Allows the operator to program and pilot all the welding cycle in an easy, fast and very intuitive way. Includes a data-logging system to store full welding data, downloadable through a USB port straight into PDF files. The EASY LIFE system has the capability store up to 4000 joint reports.
Possibility to pre-set 20 customized.

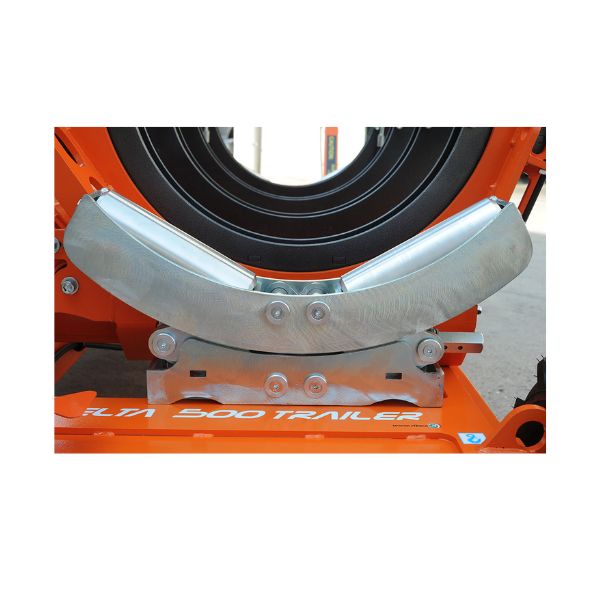

– Two innovative lateral rollers that can be operated by a cordless drill

DELTA 500 TRAILER allows to easily weld fittings like elbows, tees, Y-branches and stub flanges.
Available in 230V single phase or three phase.

Patented by Ritmo
EP2860430
