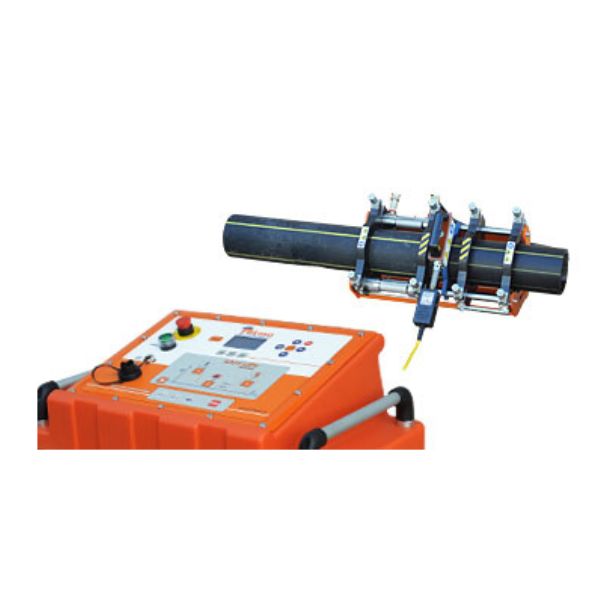

Basic 160 Easy Life
BASIC 160 EASY LIFE, thanks to a special gearcase, is able to manage the welding process in a semi-automatic way. The electronic system guarantees the continuous repeat of the welding cycles and automatic control of the preset parameters, therefore the operator needs only to validate the welding phases. The user-friendly graphic display allows a quick setting of the desired parameters.

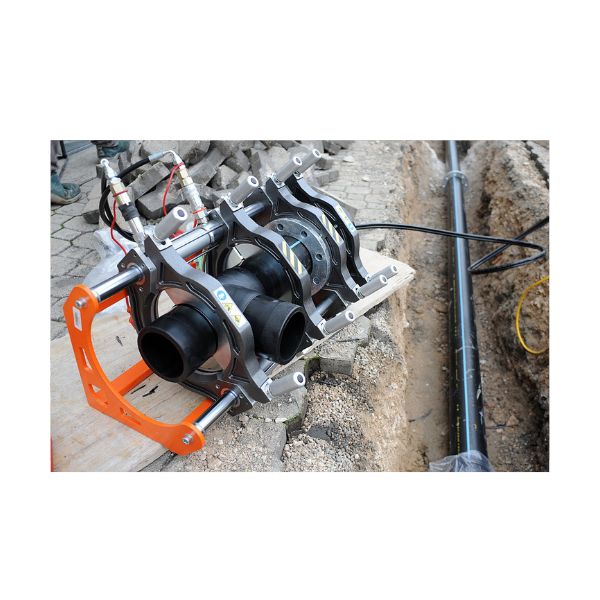

The EASY LIFE system can store up to 4000 welding cycles and sum them up into a PDF file. This report can be transferred to a PC/laptop through a USB port. Possibility to pre-set 50 customized. The EASY LIFE system data logging now shows the time! BASIC 160 EASY LIFE is able to weld fittings such as elbows, tees, Y-branches and flange necks without any additional equipment by simply fixing the clamps’ drag bar.
- Delivered across India
- Operator training offered
- 1 Year Warranty
- Call +91 9003096815 for Queries
BASIC 160 EASY LIFE, thanks to a special gearcase, is able to manage the welding process in a semi-automatic way. The electronic system guarantees the continuous repeat of the welding cycles and automatic control of the preset parameters, therefore the operator needs only to validate the welding phases. The user-friendly graphic display allows a quick setting of the desired parameters.
The EASY LIFE system can store up to 4000 welding cycles and sum them up into a PDF file. This report can be transferred to a PC/laptop through a USB port. Possibility to pre-set 50 customized. The EASY LIFE system data logging now shows the time! BASIC 160 EASY LIFE is able to weld fittings such as elbows, tees, Y-branches and flange necks without any additional equipment by simply fixing the clamps’ drag bar.
– A machine body with 4 clamps and 2 hydraulic cylinders with fast non-drip couplings
– An extractable heating plate – An extractable milling cutter, with safety micro-switch

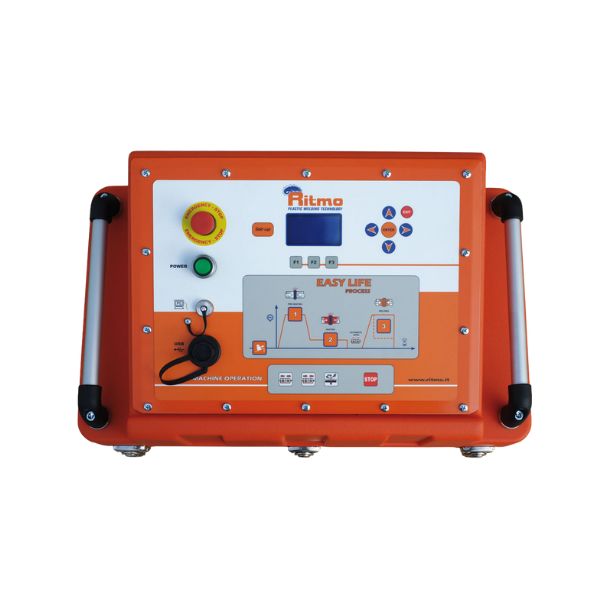

– An electrohydraulic gearcase EASY LIFE – A hydraulic hoses with non – drip quick couplings
– Adapters from Ø 40 to 140 mm
ON REQUEST (ACCESSORIES)
– Trolley
– Rollers
| Materials | HDPE – PP – PB – PVDF |
| Working range | Ø 40 ÷ 160 mm |
| Power supply | 110V; 230V 50/60 Hz |
| Total absorbed power | 2250 W |
| Gearcase | 1100 W |
| Report | 4000 welding cycles |
| Working temperature | 180° ÷ 280° C |
| Pressure working range | 0 ÷ 150 bar |
| Weight only body machines | 21 Kg |
| Weight gearcase | 37 Kg |
| Dimension machine | 606x365x375 mm |
| Dimension gearcase | 585x384x463 mm |
