Delta 630 trailer

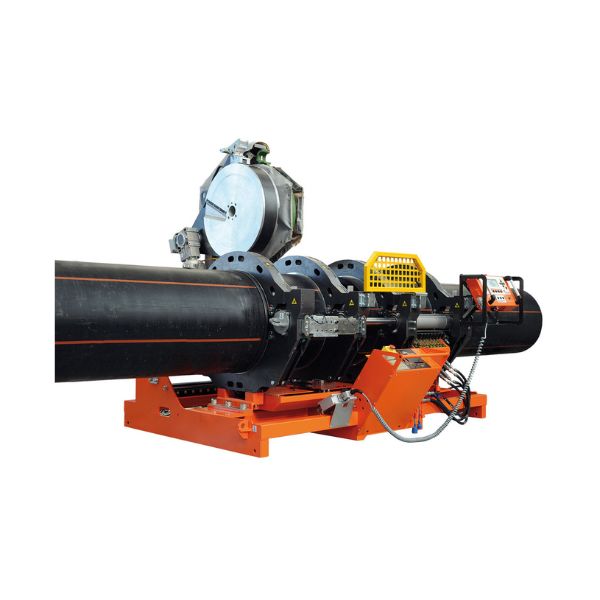

DELTA 630 TRAILER is a self-aligning fusion machine, suitable for welding thermoplastic pipes for the transport of water, gas and other fluids under pressure, up to Ø 630 mm ( 24″ DIPS)
DELTA 630 TRAILER allows to easily weld fittings like elbows, tees, Y-branches and stub flanges
Machine can fuse pipe according to the ISO 21307 High Pressure standard.
- Delivered across India
- Operator training offered
- 1 Year Warranty
- Call +91 9003096815 for Queries
DELTA 630 TRAILER is a self-aligning fusion machine, suitable for welding thermoplastic pipes for the transport of water, gas and other fluids under pressure, up to Ø 630 mm ( 24″ DIPS)
DELTA 630 TRAILER allows to easily weld fittings like elbows, tees, Y-branches and stub flanges
Machine can fuse pipe according to the ISO 21307 High Pressure standard.
Standard machine features:

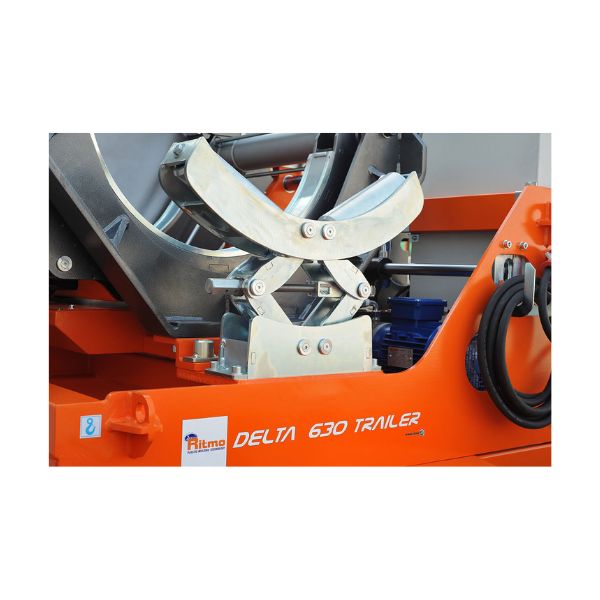

– Machine body mounted on a 4 wheeled chassis, easily removable for working in tight spaces; steel hydraulic clamping with the RITMO Patented fast-locking inserts, which allows to place and remove inserts in seconds; self detaching device: helps removing the heating plate during welding procedure

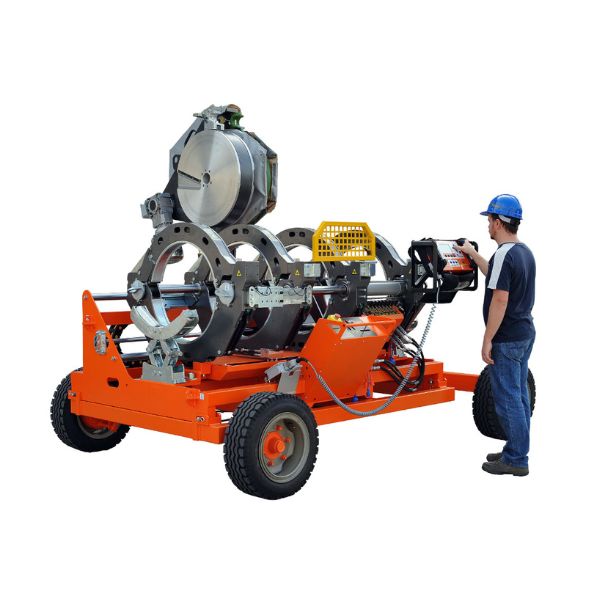

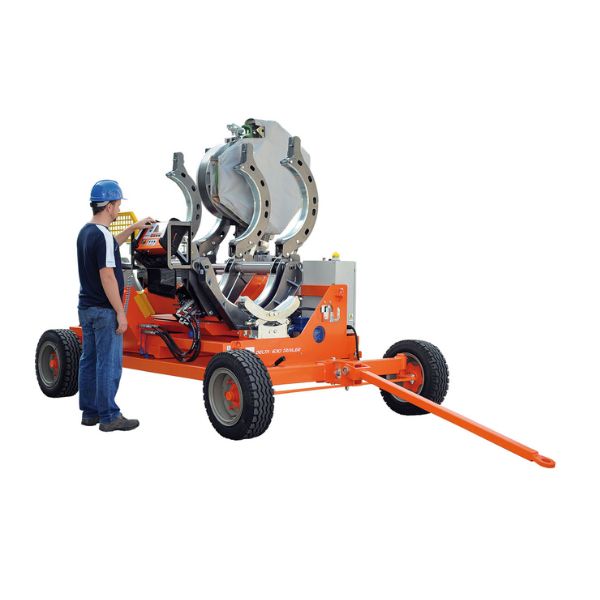

– 4 wheeled chassis with 2 steering wheels and a safety brake
– An on-board hydraulic electric facer that is equipped with a safety microswitch to prevent from accidental starts, a thermal circuit breaker to protect motor
– An on-board hydraulic heating plate Teflon-coated (PTFE) which comes with a high-temperature-proof bag, which also avoid the heating element from being scratched
– An EASY LIFE control panel with a large graphic display and GPS traceability, which is also removable from the machine body to be able to weld from outside the ditch. Allows the operator to program and pilot all the welding cycle in an easy, fast and very intuitive way. Includes a data-logging system to store full welding data, downloadable through a USB port straight into PDF files. Possibility to pre-set 20 customized. The EASY LIFE system has the capability store up to 4000 joint reports
– Two innovative lateral rollers that can be operated by a cordless drill

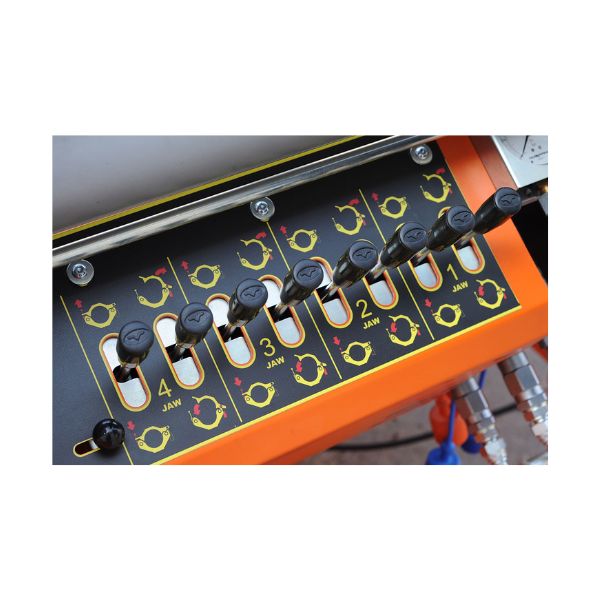

– Control panel for hydraulic movements
Materials | HDPE/PP |
Working range | Ø 225* ÷ 630 mm; 8″ IPS ÷ 24″ DIPS *from SDR 26 to 7 |
Power supply | 400 V Three Phase 50/60 Hz |
Total abdorbed power | 9300 W |
Working temperature | 180° ÷ 280° |
Outside temperature range | -10° ÷ 40° C |
Weight machine body | 1320 Kg |
Weight trolley | 435 Kg |
Dimensions machine body | 2500x1860x1475 mm |
Dimensions trolley | 3140×2100 mm |
