REMEDY 355

SMALL DIAMETERS FUSION

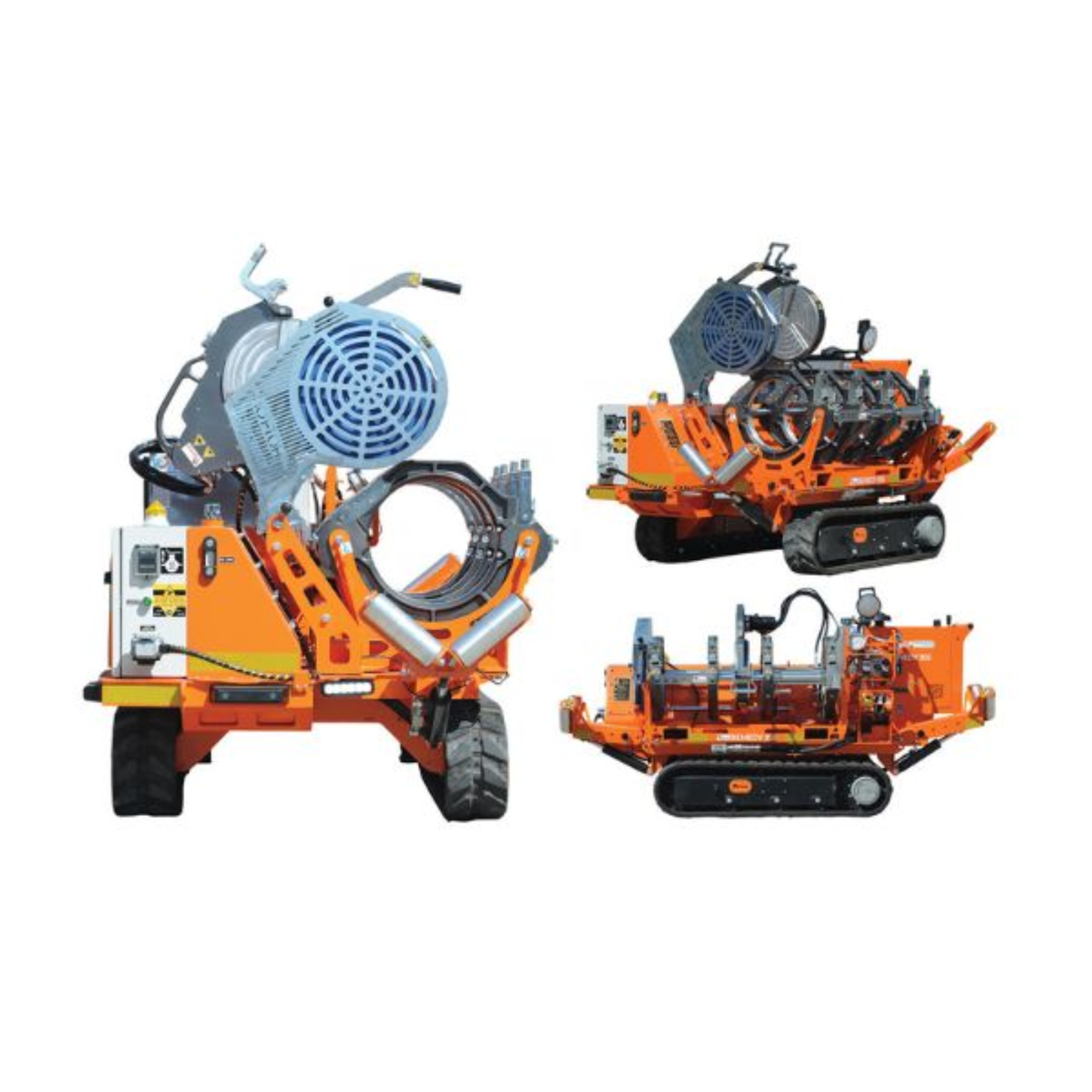

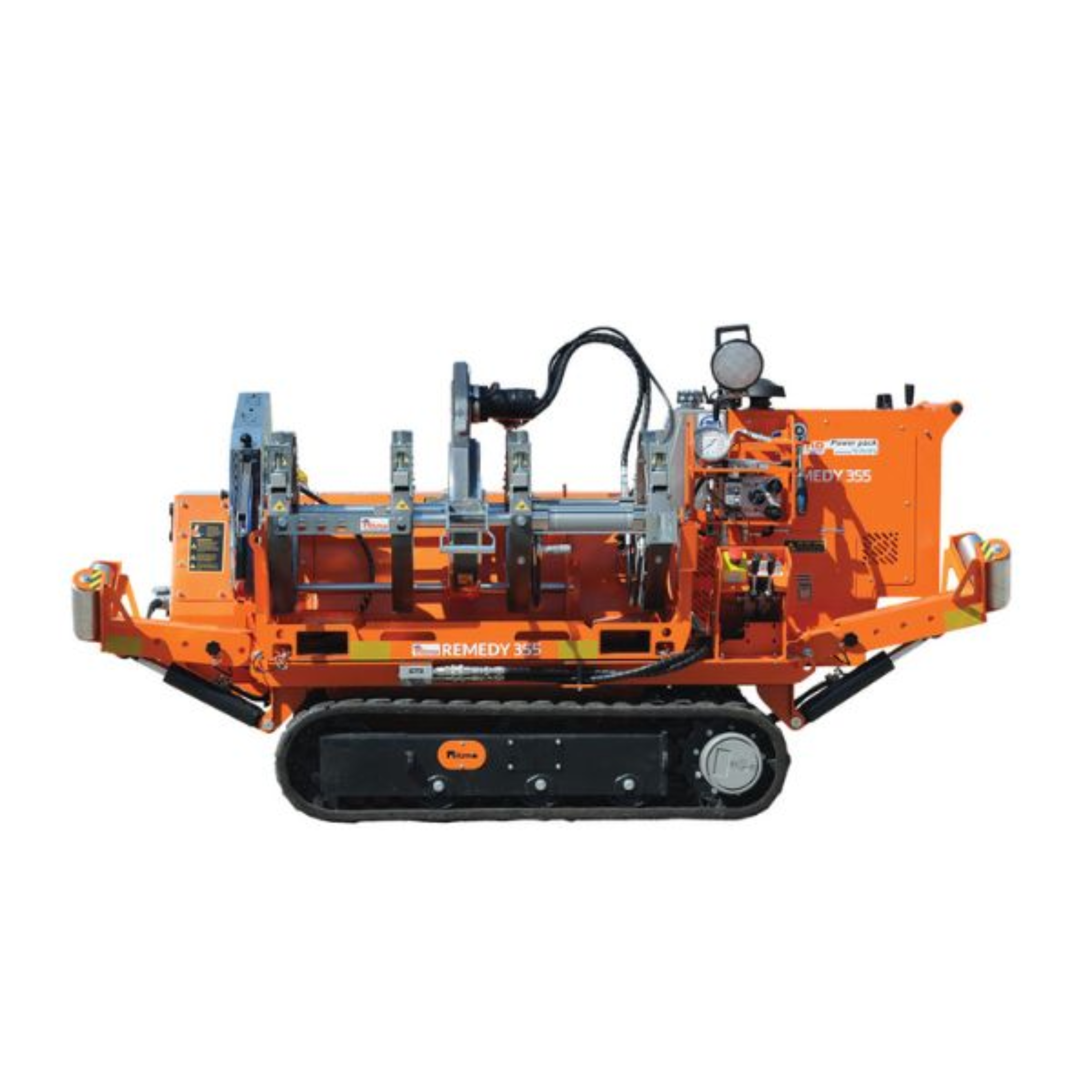

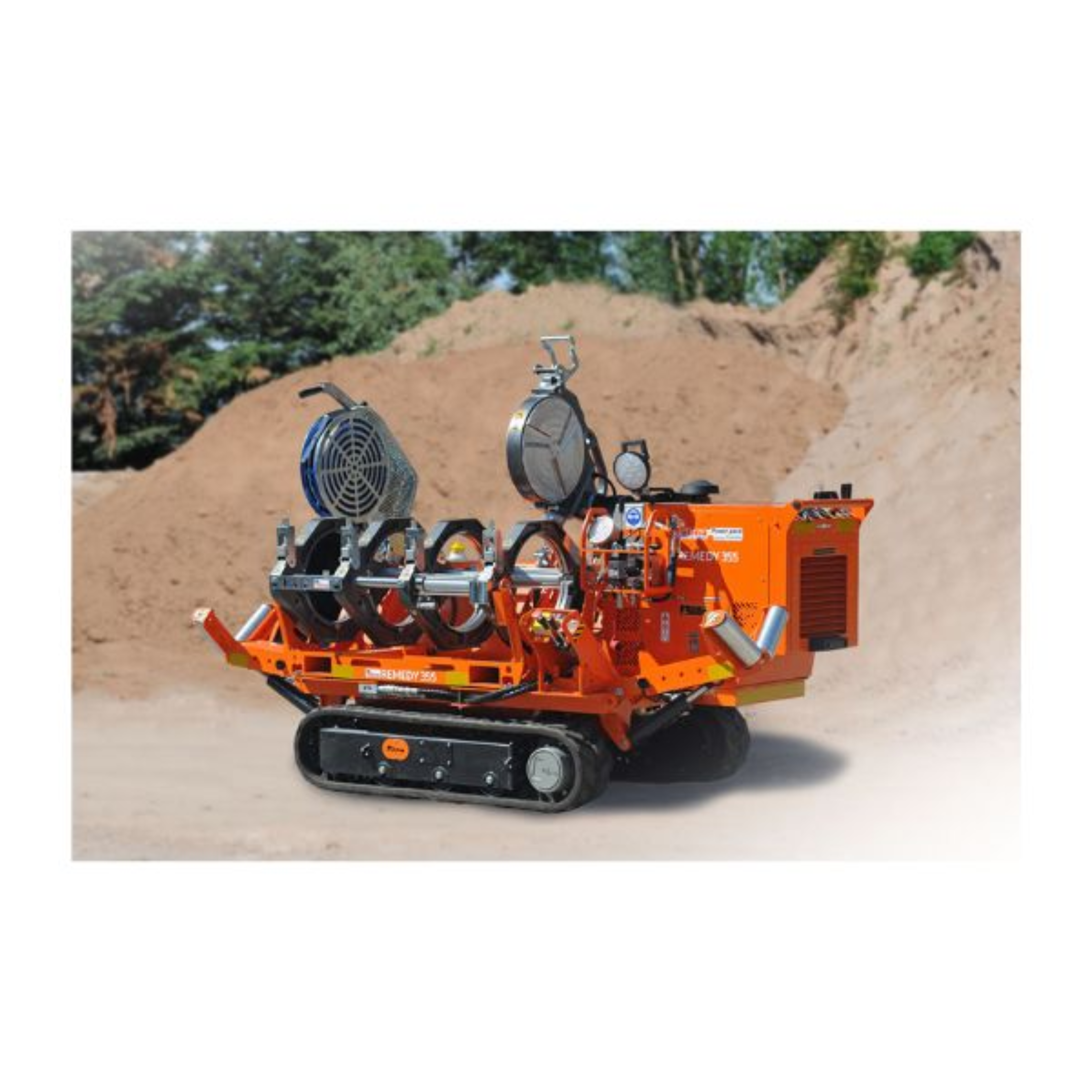

REMEDY 355 is an independent, high-productivity welding machine driven by tracks and powered by a Diesel on-board generator. Designed for butt
welding HDPE and PP pipes from Ø 125 to 355 mm (from 4” to 14” IPS; from 4” to 12” DIPS). Suitable for ISO 21307 High Pressure and ASTM F2620 fusion standards.

  • Check Mark Delivered across India
  • Check Mark Operator training offered
  • Check Mark 1 Year Warranty
  • Check Mark Call +91 9003096815 for Queries
    Guaranteed Safe And Secure Delivery

    SMALL DIAMETERS FUSION
    REMEDY 355 is an independent, high-productivity welding machine driven by tracks and powered by a Diesel on-board generator. Designed for butt
    welding HDPE and PP pipes from Ø 125 to 355 mm (from 4” to 14” IPS; from 4” to 12” DIPS). Suitable for ISO 21307 High Pressure and ASTM F2620 fusion standards.

    Versatile
    – Working range
    from Ø 125 to 355 mm
    from Ø 4” to 14”IPS
    from Ø 4” to 12” DIPS
    – Materials: HDPE, PP
    – Manual controls
    – Tracked welding machine
    – Drives over 35% slopes
    – In-ditch/user friendly
    – In-ditch hoses/cables range/length 7 m – 23 ft

    Accurate
    – Designed to weld according to:
    ISO 21307 High Pressure
    ASTM F2620 standards
    – Removable auxiliary panel to control
    facer/heating plate
    – Easily welds fittings/quick set-up time
    – Heating plate with a high temperature
    protection
    – Spotlights on welding area
    – Insert with fast-locking system

    Complete
    – Self-propelled on track
    – Self-contained generator on-board
    – Heater/facer on-board
    – Patented System to open/close
    Heating plate and Facer
    – Hydraulic side rollers
    – Facer with safety microswitch

    FREE TO CONTROL
    Remedy 355 is available with Manual Welding Control System. Intuitive control panel allow an easy menagement of the welding
    cycle and every phase is manually controlled.

    Materials HDPE/PP
    Working range Ø 125 ÷ 355 mm
    Ø 4” ÷ 14” IPS
    Ø 4” ÷ 12” DIPS
    On board generator * 719 cc – 14 Kw
    Fuel Diesel
    Fuel tank 43 litres (11.3 gal)
    Autonomy 21 Hours
    Max operating slope 35%
    Emmission compliance EPA US TIER 4 FINAL, UE STAGE V
    Total weight 1170 Kg (2579 lb)
    Body machine sizes Max dimentions on site 3007 x 1479 x 1690 mm
    9.86 x 4.85 x 5.54 ft
