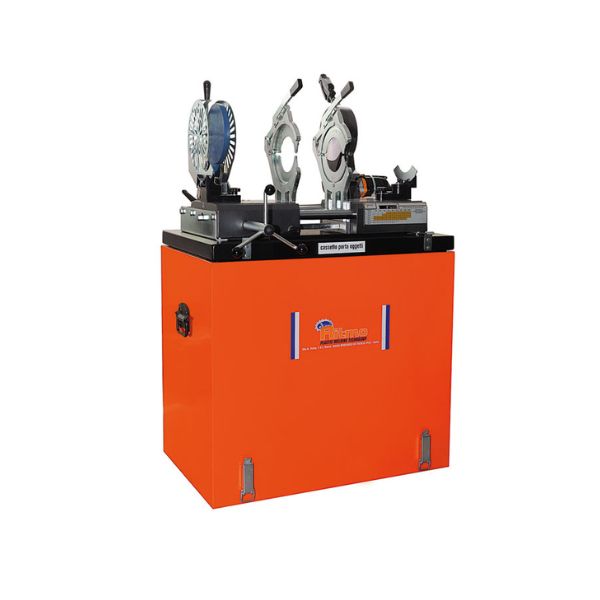

VR 160 JOYT

VR 160 JOYT is portable butt fusion welder for drainage pipes up to Ø 160 mm.

This machine is characterized by the extractable heating plate, the safety microswitches on the milling cutter to avoid accidental starting, the articulated lateral supports.

Technical features:

Materials HDPE – PP – PB – PVDF
Working range Ø 40 ÷ 160 mm
Power supply TF 230 V single phase 50/60 Hz
TE 230 V single phase 50/60 Hz
Total abdorbed power 2100 W
Working temperature TE: 180° ÷ 280° C
TF: 210° C ± 5%
Dimensions 1055 x 925 x 1310 mm
Weight standard composition 95 Kg
Request Quote
  • Check Mark Delivered across India
  • Check Mark Operator training offered
  • Check Mark 1 Year Warranty
  • Check Mark Call +91 9003096815 for Queries
    Guaranteed Safe And Secure Delivery

    VR 160 JOYT is portable butt fusion welder for drainage pipes up to Ø 160 mm.

    This machine is characterized by the extractable heating plate, the safety microswitches on the milling cutter to avoid accidental starting, the articulated lateral supports.

    The VR 160 JOYT has steel box that can used either as a work bench or as a protection for transportation.
    The machine body includes a spring-loaded pressure-regulating device and the rack-feed movement of the carriage provided by a handwheel.
    The rapid-lock clamps, in order to be able to lock elbows (also with a very short neck), tees and Y-branches without the need of any additional device.  The protection housing around the heating element.
    Available in two versions: one with a fixed mechanical thermostat (TF) and one with an adjustable electronic thermoregulator (TE).

    STANDARD COMPOSITION
    – Machine body with a milling cutter and lateral supports
    – TP 200 TE plate or TF plate
    – Right and Left clamp with inserts Ø 40 ÷ 160 mm
    – Frame VR 160 JOYT
    – Working/transport steel case
