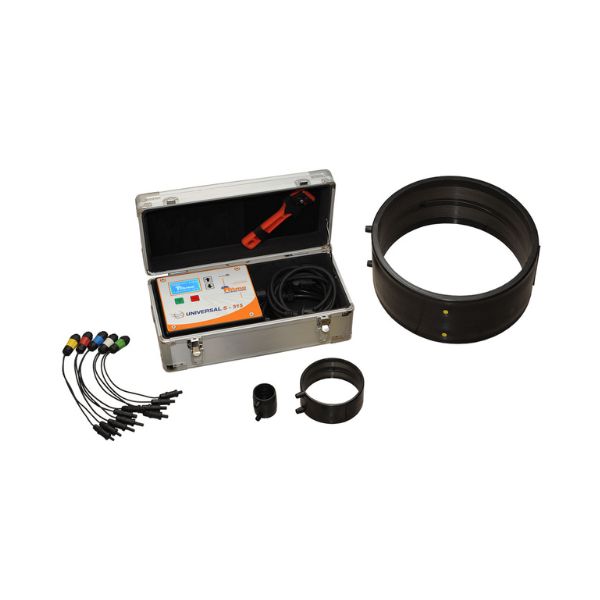

Universal 315 V1

UNIVERSAL 315 V1 Electrofusion welding machine:
– Low pressure HDPE Ø 32 ÷ 315 mm;

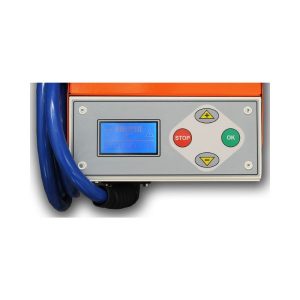

– Graphic display
– Auto recognition of fittings
– Memory with 350 welding reports
– Report in PDF File
– Serial/USB connector (optional)
– Self-compensation of the current supplied
(according to the ambient temperature)

Request Quote
  • Check Mark Delivered across India
  • Check Mark Operator training offered
  • Check Mark 1 Year Warranty
  • Check Mark Call +91 9003096815 for Queries
    Guaranteed Safe And Secure Delivery

    UNIVERSAL 315 V1 Electrofusion welding machine:
    – Low pressure HDPE Ø 32 ÷ 315 mm;
    – Graphic display
    – Auto recognition of fittings
    – Memory with 350 welding reports
    – Report in PDF File
    – Serial/USB connector (optional)
    – Self-compensation of the current supplied
    (according to the ambient temperature)
    – Transport case
    – Firmware upgradable via USB



    STANDARD COMPOSITION
    – Carrying suitcase
    – Manual scraper
    – Shoulder belt

    WELDING CABLES – STANDARS COMPOSITION
    A00+    Ø 200 ÷ 315 mm – Wavin (Waviduo)
    A00      Ø 32 ÷ 160 mm – Valsir, Coes, Wavin (Waviduo), Geberit, Eurofusion, Akatherm, Cosmoplast, Polypipe Terrain
    A01       Ø 200 ÷ 315mm – Eurofusion, Akatherm, Wavin (Wavisolo), Valsir, Polypipe Terrain
    A02      Ø 200 ÷ 315mm – Geberit, Cosmoplast
    A04      Ø 200 ÷ 315mm Coes (Coestilen)


    ON REQUEST (ACCESSORIES)
    Welding cableson request
    A06      PE 100 Ø 20 ÷ 110 mm – Wavin, Rollmaplast (serie 1)
                  PE 80  Ø 20 ÷ 160 mm – Wavin, Rollmaplast (serie 1)
                  PP-R   Ø 20 ÷ 110 mm – Tigris Green (Serie LI)
    A07      PE 100 Ø 125 ÷ 315 mm – Wavin, Rollmaplast (serie LI)
    – serial/USB adapter (welding data transfer)

    Materials – HDPE – low pressure- PP-R (ON REQUEST)
    Working range Ø 32 ÷ 315 mm
    Power supply 230 V single phase 50/60 Hz
    110 V  single phase 50/60 Hz
    Total abdorbed power 2470 W (230 V)
    2700 W (110 V)
    Outside temperature range -10° ÷ 45° C
    Temperature compensation Automatic Electronic
    Protection degree IP 54
    Dimensions machine 255 x 180 x 110 mm (230 V)
    330 x 270 x 220 mm (110 V )
    Dimensions carrying case 220 x 450 x 180 mm (230 V)
    410 x 290 x 485 mm (110 V)
    Weight machine 3,4 Kg (230 V)
    19 Kg (110 V)
    Weight machine and carrying case 7,2 Kg (230 V)
