TOPGEAR 630

TOPGEAR 630 is the perfect solution to jobsite plastic pipe cutting difficulties, where while safety remains one of the most important points, the cutting time is a key factor for productivity.

– CUT PRECISION
– SAFETY CONDITIONS
– OVILIZED PIPE CUTTING
– CUTTING CAPACITY PIPE WALL THICKNESS UP TO 80 mm
– USER FRIENDLY

Request Quote
  • Check Mark Delivered across India
  • Check Mark Operator training offered
  • Check Mark 1 Year Warranty
  • Check Mark Call +91 9003096815 for Queries
    Guaranteed Safe And Secure Delivery

    TOPGEAR 630 is the perfect solution to jobsite plastic pipe cutting difficulties, where while safety remains one of the most important points, the cutting time is a key factor for productivity.

    – CUT PRECISION
    – SAFETY CONDITIONS
    – OVILIZED PIPE CUTTING
    – CUTTING CAPACITY PIPE WALL THICKNESS UP TO 80 mm
    – USER FRIENDLY

    Patent pending

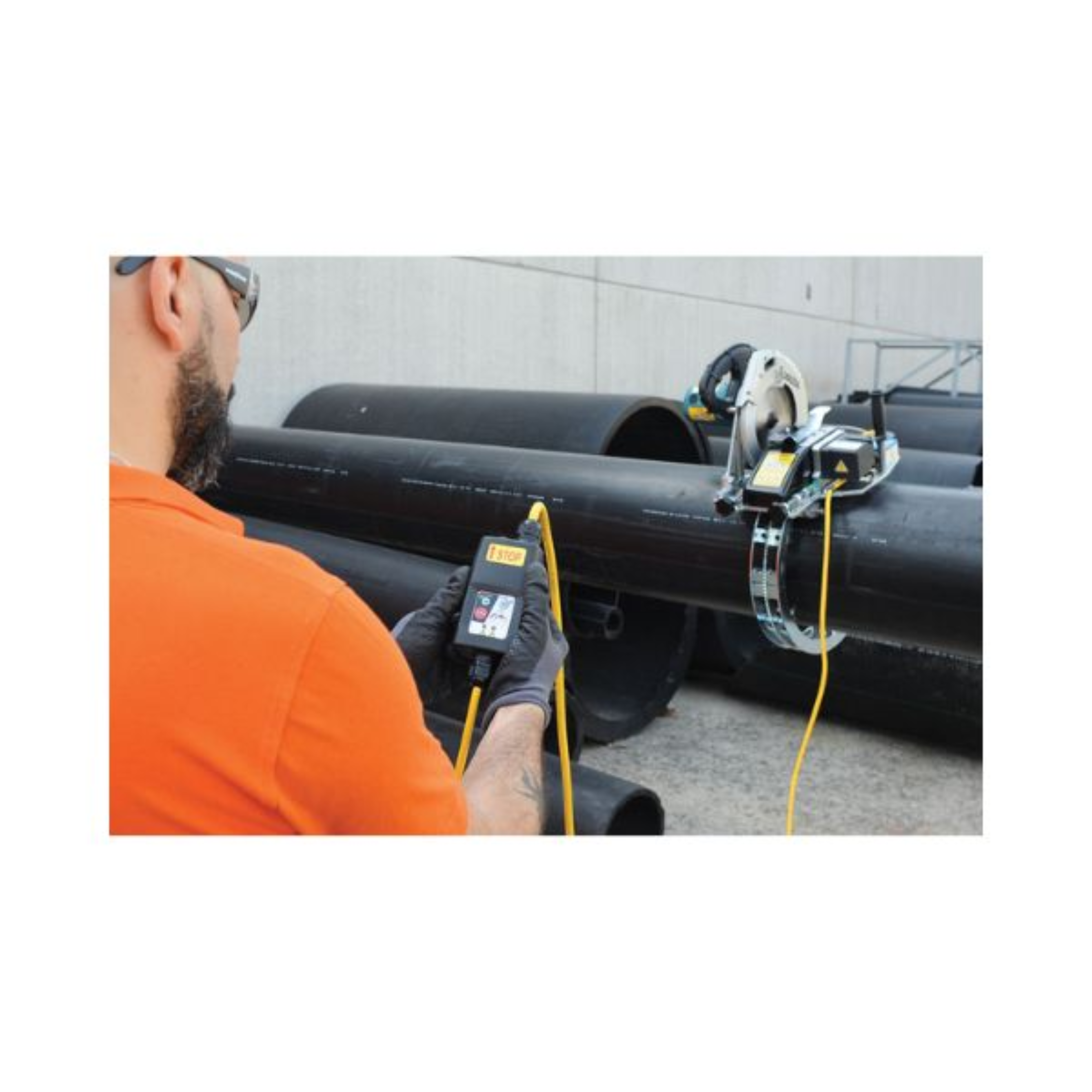

    With the aim of combining these two aspects Ritmo developed an innovative portable pipe saw for jobsite pipe cutting. Whatever the job-site conditions are and wherever the pipe is located,
    TOPGEAR 630 can be set up for the cutting process and operated in an easy and quick way, ensuring a significative reduction of both preparation and cutting time.

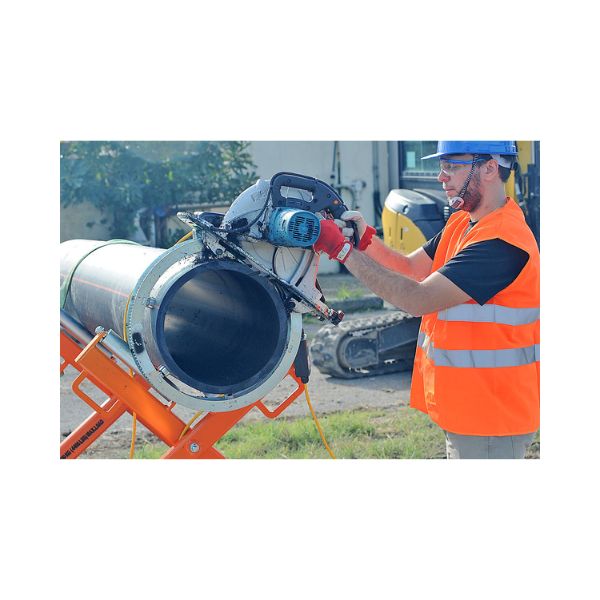

    Thanks to its clamps which are fastened around the pipe and on which the band-saw moves in a stable and safe way, the cut results accurate and straight even on ovalized pipes.

    TOPGEAR 630 is available in 115 V at 50 or 60 Hz and in 230V at 50 Hz.
    According to the chosen clamp configuration, it is possible to cut pipes with a diameter from 250 to 630 mm; IPS pipes from Ø 10” to 24” and DIPS ones from Ø 8” to 20”.

    Wherever a pipe has to be cut, TOPGEAR saw is ready!

    On request

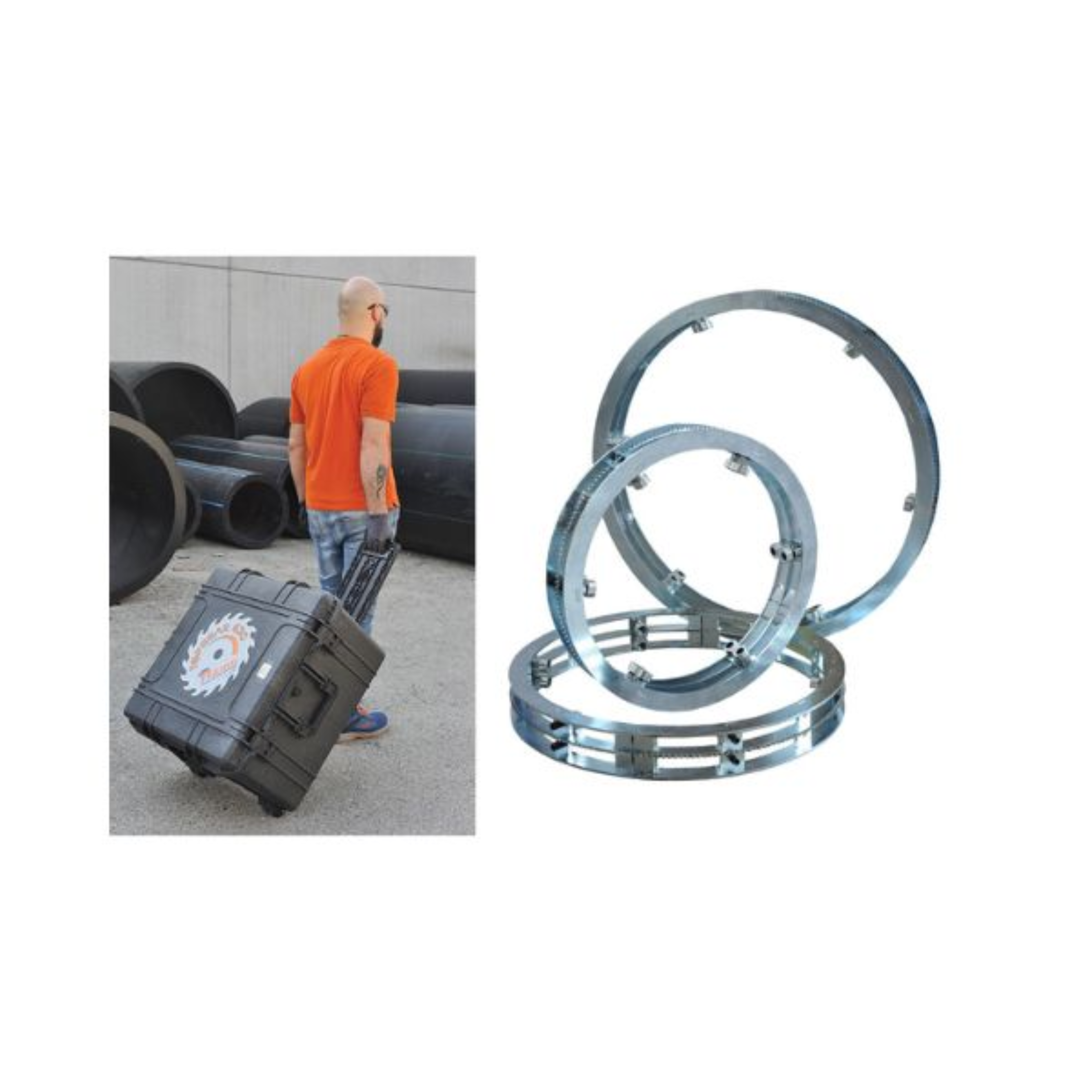

    Metrical – IPS – DIPS clamps

    Working range Ø 250 ÷ 630 mm
    10” ÷ 24” IPS
    8” ÷ 20” DIPS
    Materials PE, PP
    Maximum cut thickness 80 mm (3.15”) – 230 V
    75 mm (2.95”) – 115 V
    Available Power tensions 230 V – 50 Hz
    115 V – 50 Hz
    115 V – 60 Hz
    Power 2100 W
    Overall saw dimensions 380 x 577 x 569 mm
    15” x 22.7” x 22.4”
    Saw weight 20 Kg (44 lb)
    Transportation case dimensions 700 x 700 x 400 mm
    27.5” x 27.5” x 16”
    Case weight 14,3 Kg (31.5 lb)
