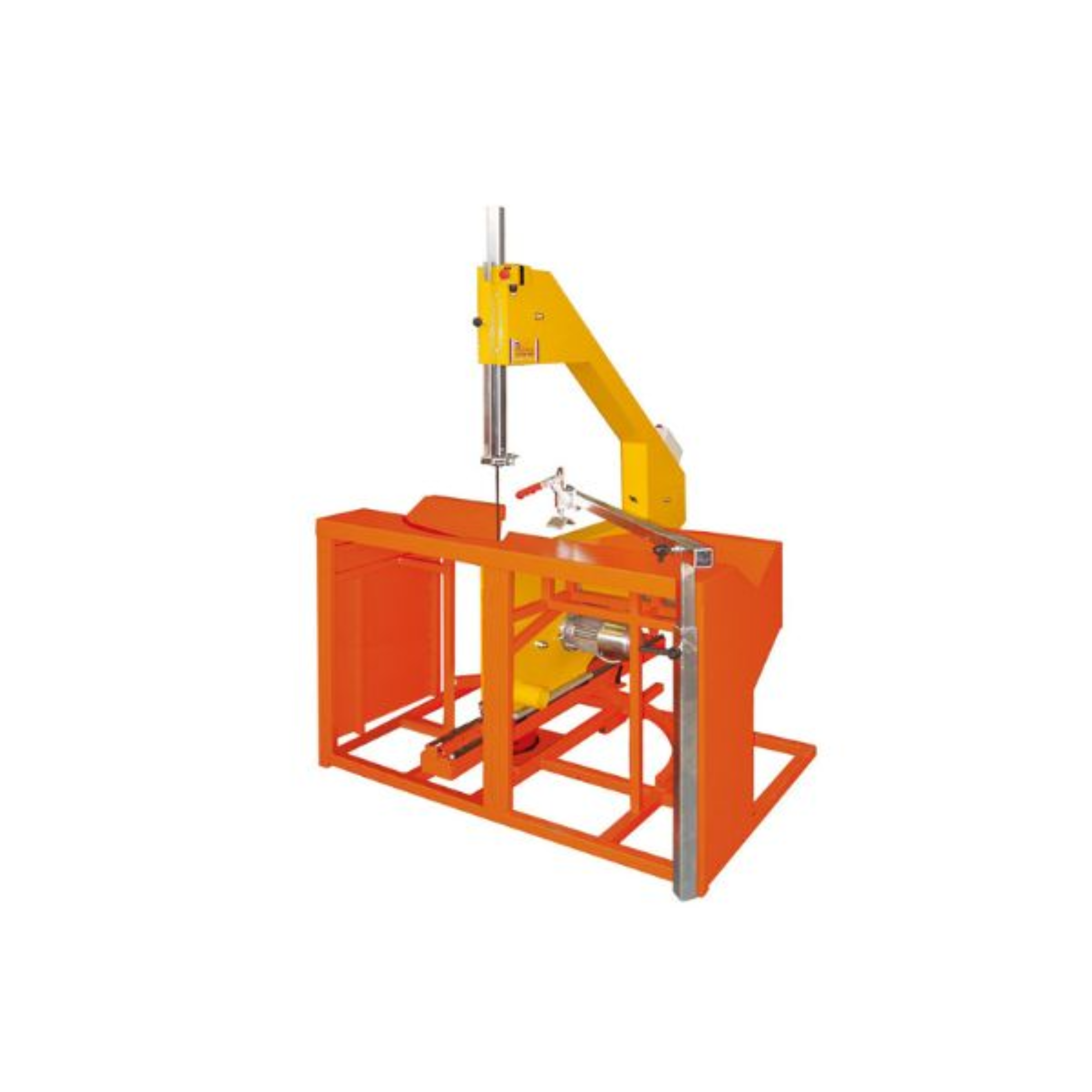

Sigma 400 Pro
SIGMA 400 PRO is electric workshop band saw machine for plastic pipes HDPE, PP, PVDF, PVC; the ideal equipment to match Alfa fittings fabrication machines.
The SIGMA 400 PRO is designed to make angular cut, featuring a wide range of angles (from – 30° to 67,5°). Both the preparation and cutting phases are extremely simple and safe to perform.
- Delivered across India
- Operator training offered
- 1 Year Warranty
- Call +91 9003096815 for Queries
SIGMA 400 PRO is electric workshop band saw machine for plastic pipes HDPE, PP, PVDF, PVC; the ideal equipment to match Alfa fittings fabrication machines.
The SIGMA 400 PRO is designed to make angular cut, featuring a wide range of angles (from – 30° to 67,5°). Both the preparation and cutting phases are extremely simple and safe to perform.
The machine is provided with special spherical bearings guides where the machine body can easily move sideward.
The equipment includes a control panel, located at a safety distance from the cutting area.
Special auxiliary devices can relieve the stress on the blade and help reducing the ordinary technical maintenance.
STANDARD COMPOSITION
– Auxiliary bench for cutting tees
ON REQUEST (ACCESSORIES)
– Pipe supporting trolley
| Materials | HDPE/PP/PVDF/PVC |
| Working range | Ø 60 ÷ 450 mm (2″ IPS ÷ 18″ IPS) |
| Power supply | 400 V Three phase 50/60 Hz |
| Total abdorbed power | 860 W |
| Dimensions | 2980 x 2650 x 2290 mm |
| Weight | 330 Kg |
