RADIUS 40-315

The saw performs precise radial cuts, and thanks to a trolley that slide gradually on a scaled instrument, allows a fast
configuration of the cutting radius. Even the pipe support can slide and block small pieces of pipes down to 15 cm

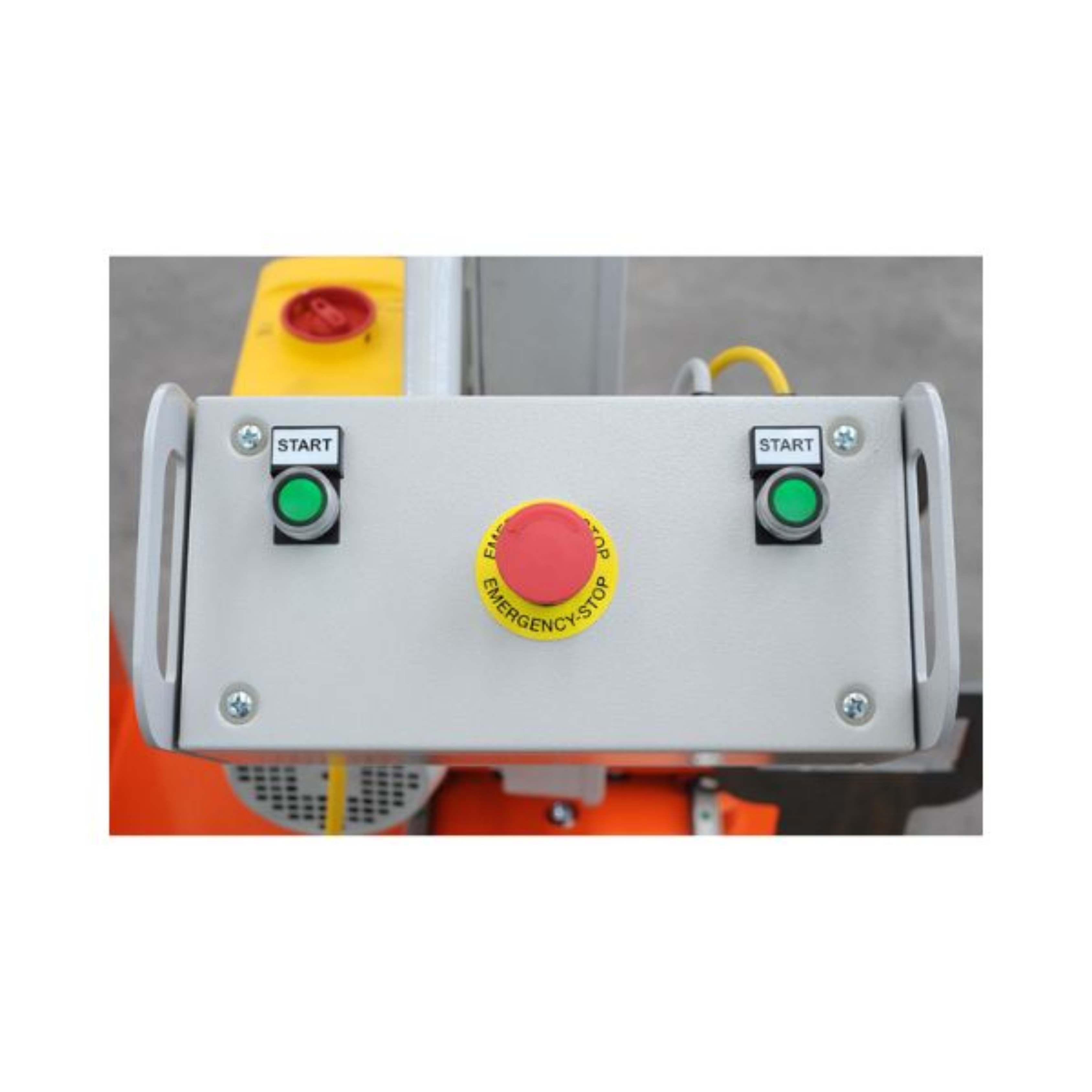

length (6″). The saw rotation during cutting is executed manually and in complete safe conditions since the control
panel and its handles are located behind the machine away from the cutting area.



Request Quote
  • Check Mark Delivered across India
  • Check Mark Operator training offered
  • Check Mark 1 Year Warranty
  • Check Mark Call +91 9003096815 for Queries
    Guaranteed Safe And Secure Delivery

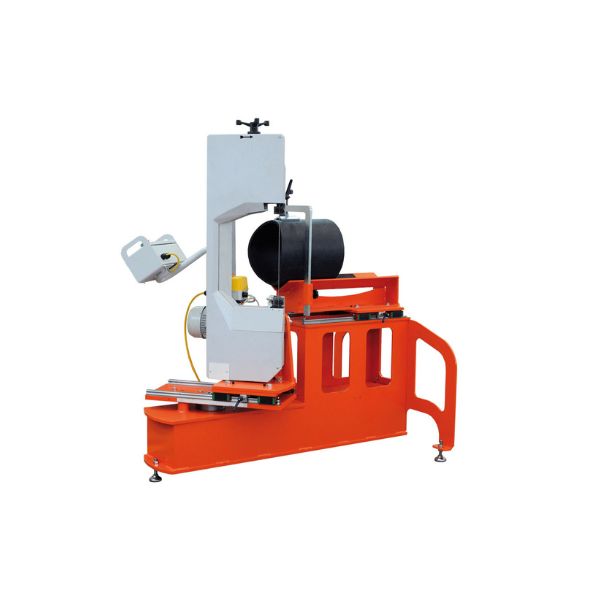

    RADIUS  40 – 315 is designed to perform saddle cuts on plastic pipes made of  HDPE, PP, PVC.

    The saw performs precise radial cuts, and thanks to a trolley that slide gradually on a scaled instrument, allows a fast
    configuration of the cutting radius. Even the pipe support can slide and block small pieces of pipes down to 15 cm
    length (6″). The saw rotation during cutting is executed manually and in complete safe conditions since the control
    panel and its handles are located behind the machine away from the cutting area.

    This machine is not suitable to cut different materials from those specified above, including composite pipes that may
    contain other substances (polymers, metals, alloys, etc.).

    STANDARD COMPOSITION
    – Machine body with control panel and saw

    INTEGRATIVE SYSTEMS for
    OMEGA 630-315 and OMEGA 400-315

    Materials HDPE/PP/PVC
    Branch pipe OD 40 ÷ 323 mm (1.6″ ÷ 12.7″)
    Main pipe OD Up to 630 mm (24.8″)
    Shortest branch length 15 cm (6″)
    Power supply 110 Vac Single Phase 50 Hz
    230 Vac Single Phase 60 Hz
    Total abdorbed power 1100 W
    Dimensions 1000 x 1566 x 1642 mm
    Weight 425 Kg (937 lb)
