Polyfusion 4

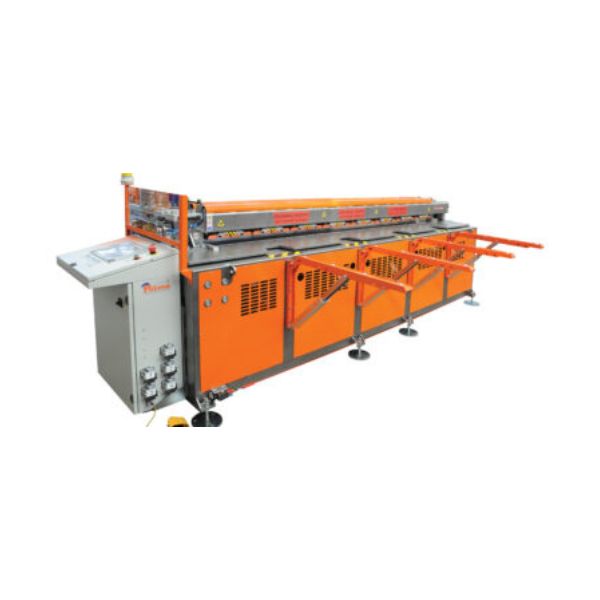

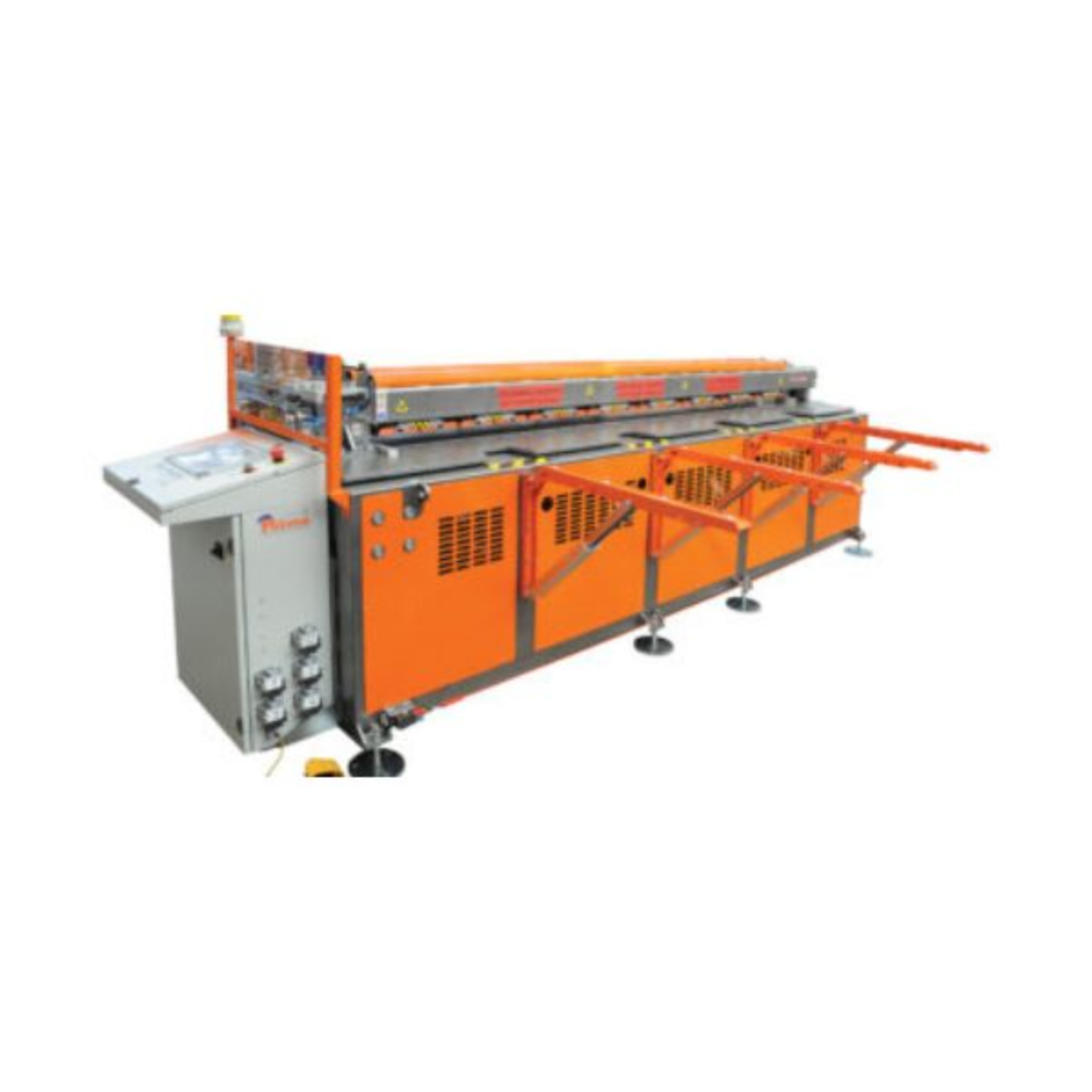

POLYFUSION 4 Pneumatic sheet welding machine
CNC welding cycle
Compliant with welding standards DVS 2207
PE (DVS 2207-1); PP (DVS 2207-11); PVC-U (DVS 2207-12); PVC-C (DVS2207-13); PVDF (DVS 2207-15)
Weldable materials: sheet in PVC, PE, PP, PVDF; twin walls in PE and PP.
Welding range 3 ÷ 50 mm (contact RITMO S.P.A for more details) solid wall; max 60 mm twin walls

  • Check Mark Delivered across India
  • Check Mark Operator training offered
  • Check Mark 1 Year Warranty
  • Check Mark Call +91 9003096815 for Queries
    Guaranteed Safe And Secure Delivery

    POLYFUSION 4 Pneumatic sheet welding machine
    CNC welding cycle
    Compliant with welding standards DVS 2207
    PE (DVS 2207-1); PP (DVS 2207-11); PVC-U (DVS 2207-12); PVC-C (DVS2207-13); PVDF (DVS 2207-15)
    Weldable materials: sheet in PVC, PE, PP, PVDF; twin walls in PE and PP.
    Welding range 3 ÷ 50 mm (contact RITMO S.P.A for more details) solid wall; max 60 mm twin walls

    VERSATILE
    – Welds up to 4 mt length
    – Suitable for small size sheets welding
    – Working pressures: nominal 7 bar – maximum 8,5 bar
    – Type of butt fusion welding: Straight, 90 ° welding (accessory on request), T welding (accessory on request), Circular welding (accessory on request)

    PRECISE
    – High density locking clamps that provide an homogeneous pressure distribution
    – Led lights throughthe entire welding area
    – Graduated scales to set the sheet in position
    – Constant stabilizing pressure control
    – Unlimited store of welding report
    – Unlimited store of pre-setting parameters and possibility to recall them
    – Welding cycles management according to the standards or customizable

    Pre-set welding standards: – PE (DVS 2207-1) – PP (DVS 2207-11) – PVC-U (DVS 2207-12) – PVC-C (DVS2207-13) – PVDF (DVS 2207-15)
    Twin wall pre-set parameters on suggested values: PANELTIM – RÖCHLING – SIMONA

    COMPLETE
    – 4 independent welding areas
    – CNC welding cycle
    – Pre-setting store and recall parameters
    – PLC control panel
    – 12” touch screen
    – Remote control and analysis
    – Diagnostic feature
    – Upgradable Software via USB

    Standard composition:

    – Folding lateral supports with bearing balls for the easy sheet movements
    – High density of locking clamps: they provide an homogeneous pressure distribution capable of stopping both large and thin thicknesses sheets, and working with long or short sheets
    – Led lights through the entire welding area
    – New Ritmo “AirPlus” system allows to complete a welding cycle even in the event of an unexpected fault of the air supply in your building
    – A PLC control panel allows the operator to program the working cycle quickly with the help of an intuitive touch screen
    – The “Adjusty” system automatically adjusts the distance between heating plate and machine edge according to the thickness of the sheets. With thin sheets the system permits a welding without overlapping while for thick sheets enough space for the bead is guaranteed
    – Internal memory for unlimited number of welds
    – Download report in CSV format
    – USB port
    – Unlimited welding pre-setting (customized or preferred) easy to be recalled
    – Wide range of optionals and accessories to expand its functionality

    Materials PE/PP/PVC-C, PVC-U, PVDF
    Max.working width 4050 mm
    Weldable thickness solid wall 3 ÷ 50 mm (contact Ritmo S.P.A. for details)
    Weldable thickness twin walll up to 60 mm
    Types of welding Plane, 90°, T, Circular*
    Power supply 400 V
    Max. absorbed power 13600 W
    Minimum requirements pneumatic supply 7 bar capacity= 300 l/min
    Memory limitless
    Report CSV limitless
    Pre-set welding standards yes
    Weight 3200 Kg
    Dimensions unfolded bracket 5320 x 2673 x 1508 mm
