Polyfusion 3-30

POLYFUSION 3-30 is a CNC automatic butt fusion machine, suitable for welding thermoplastic sheets made of HDPE, PP, PVC, PVDF.

Materials HDPE/PP/PVDF/PVC
Max.working width 3000 mm
Min. weldable thickness 3 mm
Max. weldable thickness 30 mm
Types of welding Plane, Circular*, 90°
Power supply 400 V
Max. absorbed power 12500 W
Pneumatic feed (for 90° welding) Tank 1000 lt – 0.78 m3/h at 6 bar compressor
Memory 4000
Report PDF
Pre-set customized 15
Dimensions folded brackets 4200 x 1540 x 840 mm
Dimensions unfolded bracket 4200 x 1540 x 1960 mm
Request Quote
  • Check Mark Delivered across India
  • Check Mark Operator training offered
  • Check Mark 1 Year Warranty
  • Check Mark Call +91 9003096815 for Queries
    Guaranteed Safe And Secure Delivery

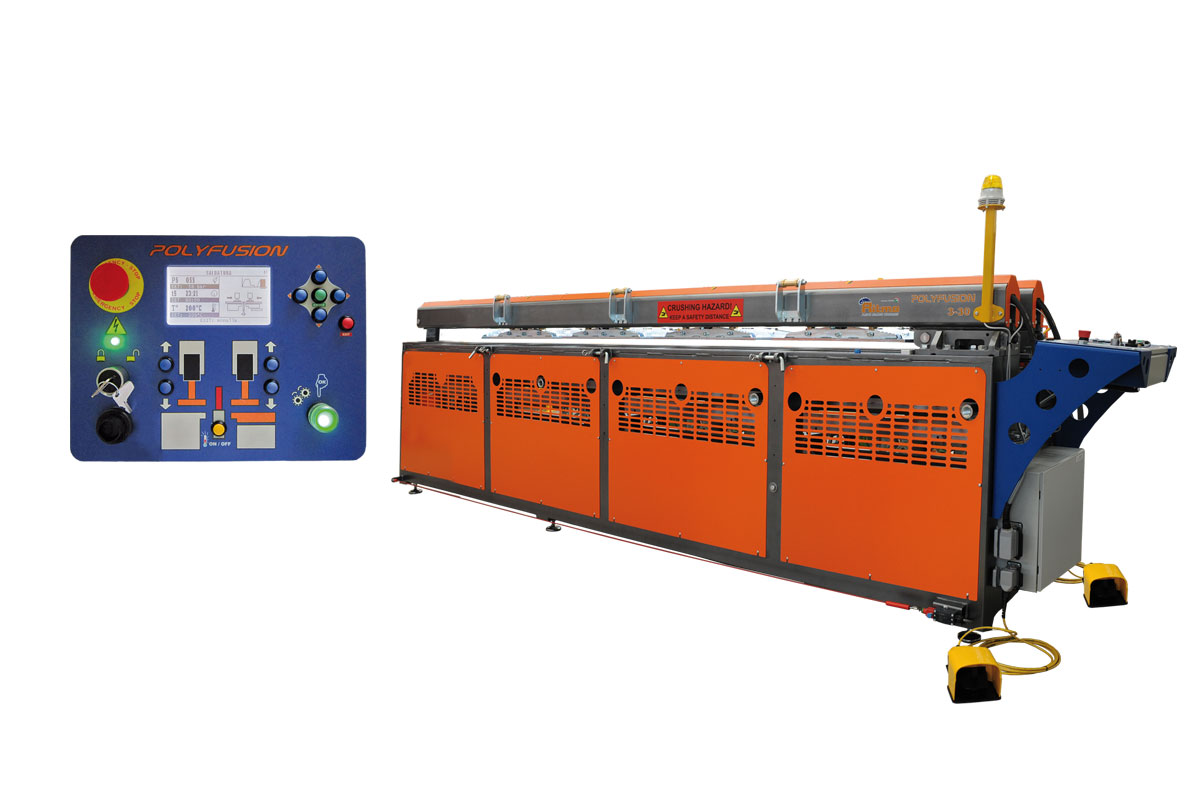

    POLYFUSION 3-30 is a CNC automatic butt fusion machine, suitable for welding thermoplastic sheets made of HDPE, PP, PVC, PVDF.

    POLYFUSION 3-30, besides operating to weld horizontally, allow you to perform different types of welds as circular and 90° thanks to special accessories available on request.

    The machine is equipped with a control panel, which allows easily and safely setting and performance of the whole welding process.The butt fusion machine is also able to weld twin-wall HDPE and PP sheets. The machine can operate in compliance with the D.V.S. 2207.

    Otherwise according to the user’s needs, it is also possible to input the type of material and the dimension of the thermoplastic sheet, and therefore proceed to weld.  It is possible to pre-set 15 customized welding cycles. Each welding cycle is automatically memorized (4000 welding cycles) and it’s possible to save it and transfer the data thanks to an USB storage device.

    The butt fusion machine is also able to weld twin-wall PE and PP sheets.

    Weldable plastic thickness: 3 ÷ 30 mm the indicated maximum thickness can be welded with materials that require a maximum welding pressure not higher than 0.17 N/mm2; Max. weldable length: 3000 mm.

    Welding types: horizontal (standard composition); 90 degrees and circular (on request)
