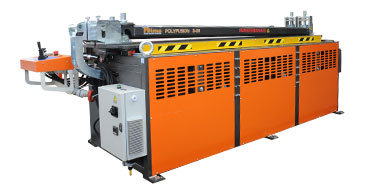

Polyfusion 2-50
POLYFUSION 2-50 is a hydraulic welder for HDPE and PP sheets up to two meters wide and 3 mm to 50 mm thickness. The machine can also weld twin-wall sheets.
The welding cycle is handled by a control panel which commands the hydraulic gearcase; “Dual Pressure” welding is also feasible
- Delivered across India
- Operator training offered
- 1 Year Warranty
- Call +91 9003096815 for Queries
POLYFUSION 2-50 is a hydraulic welder for HDPE and PP sheets up to two meters wide and 3 mm to 50 mm thickness. The machine can also weld twin-wall sheets.
The welding cycle is handled by a control panel which commands the hydraulic gearcase; “Dual Pressure” welding is also feasible.
The manual heating plate, located under the machine body, has a height adjustment handwheel. The temperature is controlled by a built-in high-precision electronic thermoregulator,
The sheets are fixed to the machine body by manual handwheels; the locking arm has an articulated joint that allows its opening and the easy extraction of the welded sheets.
The welding machine has a small modulated sustaining frame to perform 90° weldings (Kit on request).
| Materials | HDPE/PP and twin wall sheets |
| Max. working width | 2000 mm |
| Min. weldable thickness | 3 mm |
| Max. weldable thickness | 50 mm |
| Types of welding | Line – standard composition
90° – kit on request |
| Power supply | 400 V Three Phase 50/60 Hz |
| Max. absorbed power | 8300 W |
| Pressure working range | 0 ÷ 170 BAR |
| Dimensiones | 3169 x 1990 x 1162 mm |
| Weight | 1150 Kg |
