Polyfusion 1-25

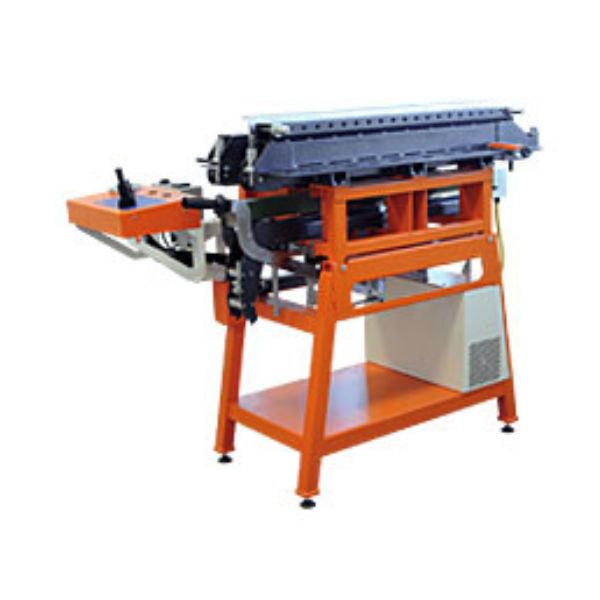

POLYFUSION 1-25 is a compact and easy to use Hydraulic welder for HDPE and PP sheets up to one meter wide and 3 mm to 25 thickness.
The welding cycle is handled by a control panel which commands the hydraulic gearcase; “Dual Pressure” welding is also feasible. The control panel can be adjusted horizontally to assist the operator.
- Delivered across India
- Operator training offered
- 1 Year Warranty
- Call +91 9003096815 for Queries
POLYFUSION 1-25 is a compact and easy to use Hydraulic welder for HDPE and PP sheets up to one meter wide and 3 mm to 25 thickness.
The welding cycle is handled by a control panel which commands the hydraulic gearcase; “Dual Pressure” welding is also feasible. The control panel can be adjusted horizontally to assist the operator.
The sheets are fixed to the machine body by manual handwheels; the locking arm has an articulated joint that allows its opening and the easy extraction of the welded sheets. The working surface of the machine body has a graduated scale on both sides, which speeds the positioning and centering of the pieces to be welded.
The manual heating plate, located under the machine body, has a height adjustment handwheel. The temperature is controlled by a built-in high-precision electronic thermoregulator, “Digital Dragon”.
The welding machine has a small modulated sustaining frame to perform 90 ° weldings. Circular welding is possible only manually.
The machine can also weld twin-wall HDPE sheets.
There’s a practical shelf at the base of the steel frame, which can be used to place some tools.
POLYFUSION 1 – 25 is available in 230 V (110V on request).
| Materials | HDPE/PP |
| Max. working width | 1000 mm |
| Min. weldable thickness | 3 mm |
| Max. weldable thickness | 25,4 mm |
| Types of welding | Line, 90°, Circular |
| Power supply | 230 V Single Phase 50/60 Hz (on request 110 V) |
| Max. absorbed power | 1710 W |
| Pressure working range | 0 ÷ 150 BAR |
| Dimensiones | 1540x950x1200 mm |
| Weight | 245 Kg |
