Paneltim venti panels

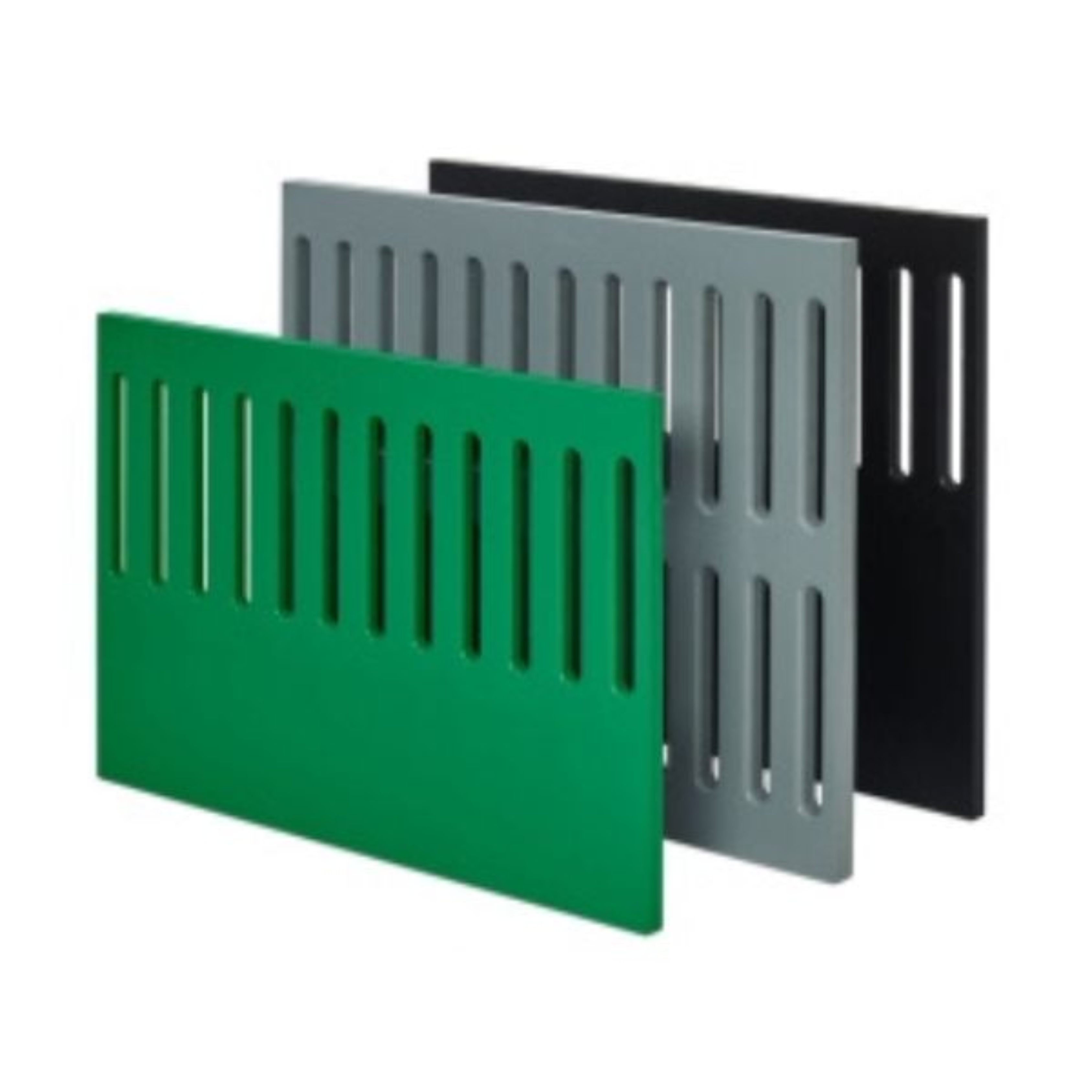

Paneltim venti30 panels are very light and strong and have vertical slots, offering good air circulation.

Thickness

• 35 mm (1 3/8″)
• 50 mm (2″)

Wall thickness

3,5 mm (0.14″)

Material

PP COPO

Vertical slots

30 mm x 350 mm per 100 mm (1.18″ x 13.78″ per 3.94″).

Internal structure

• 35 mm: 100 mm x 50 mm (4″ x 2″)
• 50 mm: 100 mm x 100 mm (4″ x 4″)

Standard dimensions

35 mm: 1.200 mm x 800 mm & 1.200 mm x 1.000 mm (47.24″ x 31.50″ & 47.24″ x 39.37″)
50 mm: 1.200 mm x 1.000 mm (47.24″ x 39.37″)

Weight

• 35 mm ± 8 kg/m² (1.6 lb/ft²)
• 50 mm ± 9 kg/m² (1.8 lb/ft²)

Colours (US:Colors)

PP near to prime: Light grey (RAL 7001), white (RAL 9010), blue (RAL 5002)
PP recycled: Light green, black
Other colours (colors) possible on request.
Paneltim advises against using dark colours (colors) for outside use.

No internal accumulation of dirt

The internal cell structure ensures that the panels are always closed all around, even when cutting to size, avoiding ingression of dirt or moisture into the panels.

Processing

The panel can be processed using regular technic to make plastic constructions: butt welding, extrusion welding or hot air welding. The short welding cycle considerably improves overall processing time.

The panels being manufactured in prime polypropylene or polyethyleen, joining with solid panels, tubes, etc is possible.
