Paneltim Multipower panels

The panel can be processed using regular technic to make plastic constructions: butt welding, extrusion welding or hot air welding. The short welding cycle considerably improves overall processing time.

The panels being manufactured in prime polypropylene or polyethyleen, joining with solid panels, tubes, etc is possible.

Request Quote
  • Check Mark Delivered across India
  • Check Mark Operator training offered
  • Check Mark 1 Year Warranty
  • Check Mark Call +91 9003096815 for Queries
    Guaranteed Safe And Secure Delivery

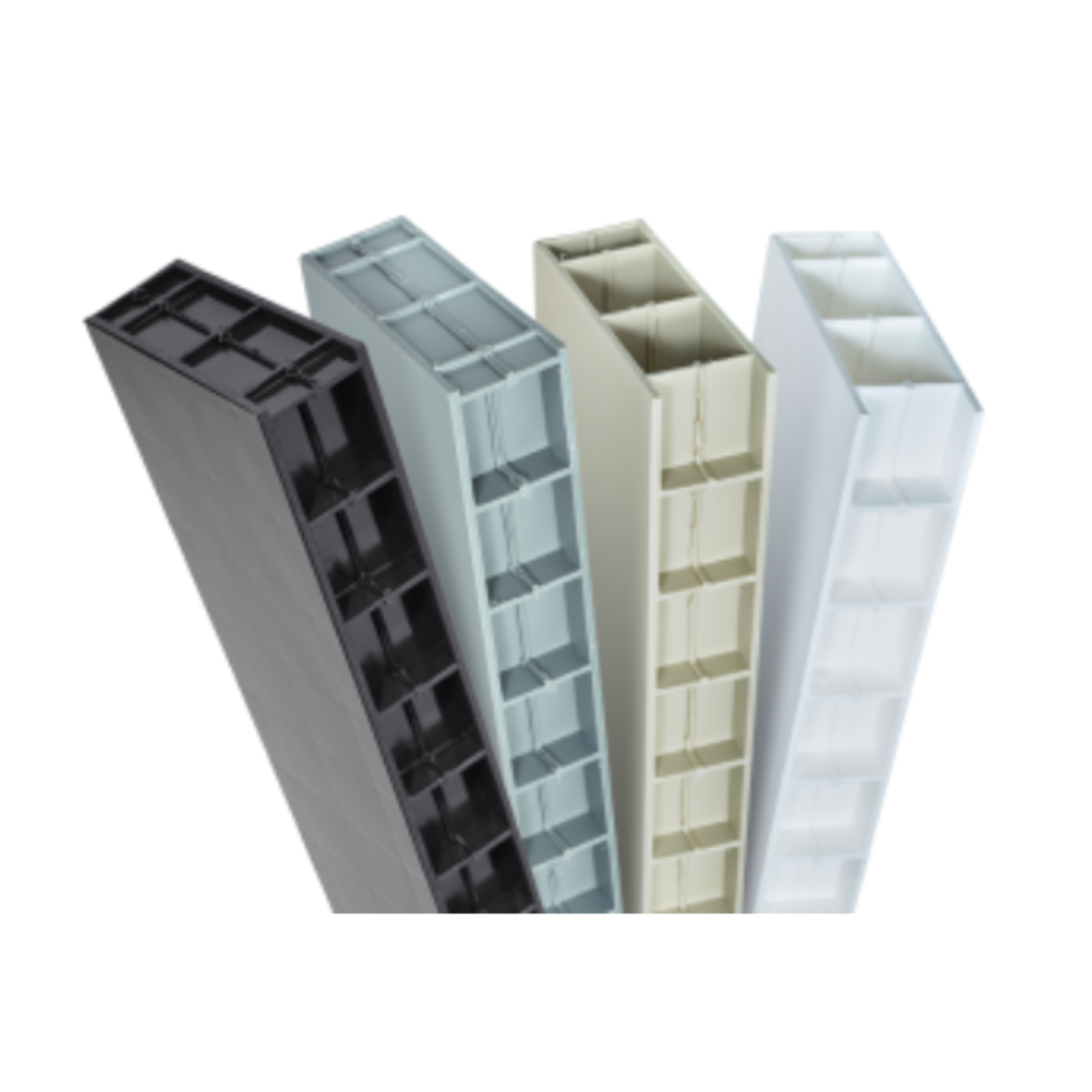

    Paneltim Multipower panels are the strongest and most robust panels in the Paneltim plastic sandwich panel assortment.

    Thickness

    50 mm (2″)

    Wall thickness

    4,5 mm (0.18″)

    Material

    • PP COPO
    • HDPE

    Internal structure

    50 mm x 50 mm (2″x2″)

    Standard dimensions

    2600 mm x 1000 mm x 50 mm (102.36″ x 39.37″ x 1.97″)

    Weight

    ± 12 kg/m² (2.5 lb/ft²)

    First internal rib at 25mm from the edge

    •Less losses during butt welding (2%)
    • Excellent symmetrical welding
    • Short welding cycle (± 1,5 min/cycle)

    Colours (US:Colors)

    PP prime: UV beige (RAL 7032), UV white (RAL 9010)
    PP near to prime: Light grey (RAL 7001, non UV)
    PE prime: UV white (RAL 9010), black
    Other colours (colors) possible on request.
    Paneltim advises against using dark colours (colors) for outside use.

    No internal accumulation of dirt

    The internal cell structure ensures that the panels are always closed all around, even when cutting to size, avoiding ingression of dirt or moisture into the panels.

    Processing

    The panel can be processed using regular technic to make plastic constructions: butt welding, extrusion welding or hot air welding. The short welding cycle considerably improves overall processing time.

    The panels being manufactured in prime polypropylene or polyethyleen, joining with solid panels, tubes, etc is possible.
