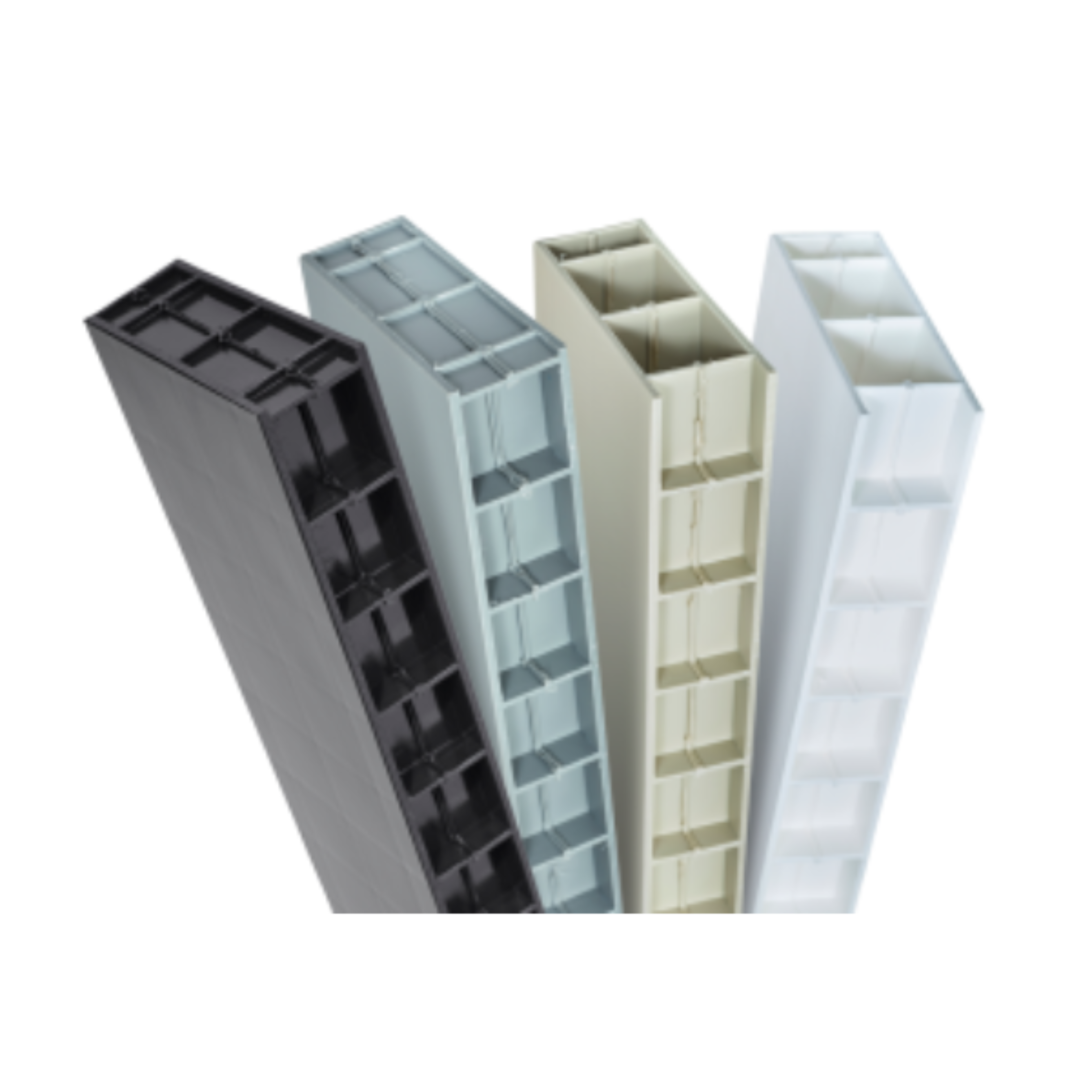

Paneltim Lightweight panels

Paneltim Lightweight panels have a light own weight, while still scoring well on rigidity and bending properties.

The panel can be processed using regular technic to make plastic constructions: butt welding, extrusion welding or hot air welding. The short welding cycle considerably improves overall processing time.

The panels being manufactured in prime polypropylene or polyethyleen, joining with solid panels, tubes, etc is possible.

Request Quote
  • Check Mark Delivered across India
  • Check Mark Operator training offered
  • Check Mark 1 Year Warranty
  • Check Mark Call +91 9003096815 for Queries
    Guaranteed Safe And Secure Delivery

    Paneltim Lightweight panels have a light own weight, while still scoring well on rigidity and bending properties.

    Thicknesses

    • 20 mm (0.8″)
    • 50 mm (2″)

    Wall thickness

    • 20 mm: 3,5 mm (0.8″: 0.14″)
    • 50 mm: 3,5 mm (2″: 0.14″)

    Materials

    • PP COPO
    • HDPE

    Internal structure

    100 mm x 50 mm (4″ x 2″)

    Standard dimensions

    Thickness Length x width
    20 mm (0.8″) 1200 x 800 mm (47.24″ x 31,50″)*
    1200 x 1000 mm (47.24″ x 39.37″)*
    50 mm (2″) 1200 x 800 mm (47.24″ x 31.50″)*
    1200 x 1000 mm (47.24″ x 39.37″)*
    2600 x 1000 mm (102.36″ x 39.37″)











    * Panelen with dimensions 1200 mm x 800 mm (47.24″ x 31.50″) and 1200 mm x 1000 mm (47.24″ x 39.37″) always have a dubbel rib (cross) in the middle. This facilitates production of 40 cm (15.75″), 50 cm (19.69″) and 60 cm (23.62) high panels.

    Weight

    Material 20 mm (0.8″) 50 mm (2″)
    PP +/- 8 kg/m²
    +/- 1.6 lb/ft²    		 +/- 10 kg/m²
    +/- 2.0 lb/ft²
    HDPE +/- 8 kg/m²
    +/- 1.6 lb/ft²    		 +/- 11 kg/m²
    +/- 2.2 lb/ft²









    Colours (US:Colors)

    PP prime: UV beige (RAL 7032), UV white (RAL 9010)
    PP near to prime: Light grey (RAL 7001), white (RAL 9010), blue (RAL 5002)
    PP recycled: Light green, black
    Other colours (colors) possible on request.
    Paneltim advises against using dark colours (colors) for outside use.

    Open half panels

    Also the half panels can be offered on demand. These open half panels with a thickenss of 11 or 27 mm (0.43″ or 1.06″) are smooth and flat on one side and have an open rib structure on the other side.

    Flexible

    Panels with dimensions 1200 mm x 800 mm (47.24″ x 31.50″) and 1200 mm x 1000 mm (47.24″ x 39.37″) always have a double rib (cross) in the middle. This facilitates the production of panels of height 40 cm, 50 cm and 60 cm (15.75″, 19.69″ and 23.62″).

    No internal accumulation of dirt

    The internal cell structure ensures that the panels are always closed all around, even when cutting to size, avoiding ingression of dirt or moisture into the panels.

    Processing

    The panel can be processed using regular technic to make plastic constructions: butt welding, extrusion welding or hot air welding. The short welding cycle considerably improves overall processing time.

    The panels being manufactured in prime polypropylene or polyethyleen, joining with solid panels, tubes, etc is possible.
