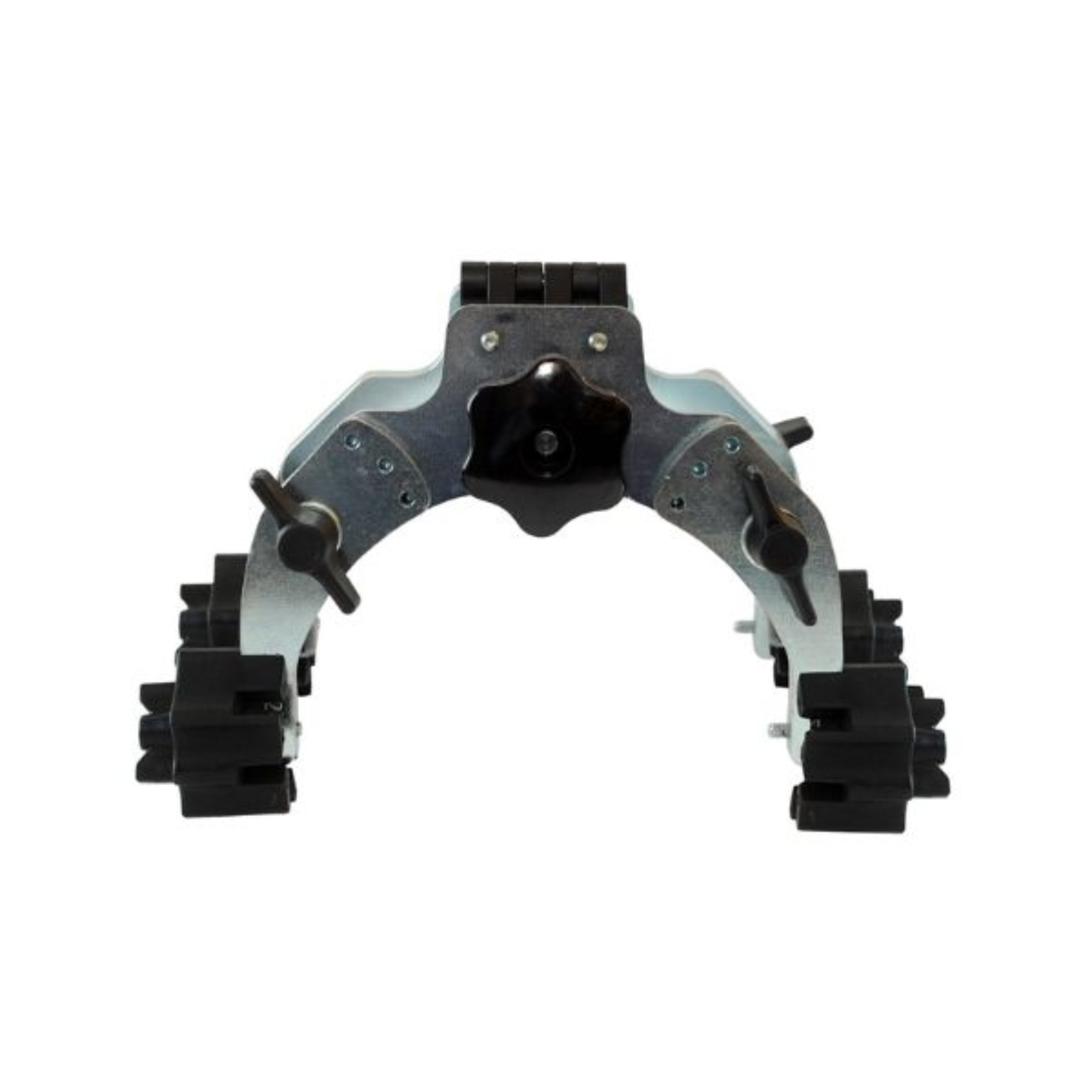

KELA 16-63
Kela is a universal and compact aligner suitable for plastic pipes, fittings and electrofusion saddles.
Thanks to its particular clamp design, it is possible to aligne pipes and fittings in a straight position or at 45° and 90°.
Techinical Featurs
| Working range | Metrical: Ø 16 ÷ 63 mm inches CTS: Ø ½” ÷ 2” inches IPS: ؽ” ÷ 2” |
| Type of alignement | Straight – 45° – 90° |
| Weight | 1,4 Kg |
| Weight including the transport bag | 2 Kg |
| Kela minimum dimensions | 206 x 155 x 104 mm |
| Kela maximum dimensions | 298 x 126 x 153 mm |
| Bag dimensions | 400 x 180 x 130 mm |
- Delivered across India
- Operator training offered
- 1 Year Warranty
- Call +91 9003096815 for Queries
Kela is a universal and compact aligner suitable for plastic pipes, fittings and electrofusion saddles.

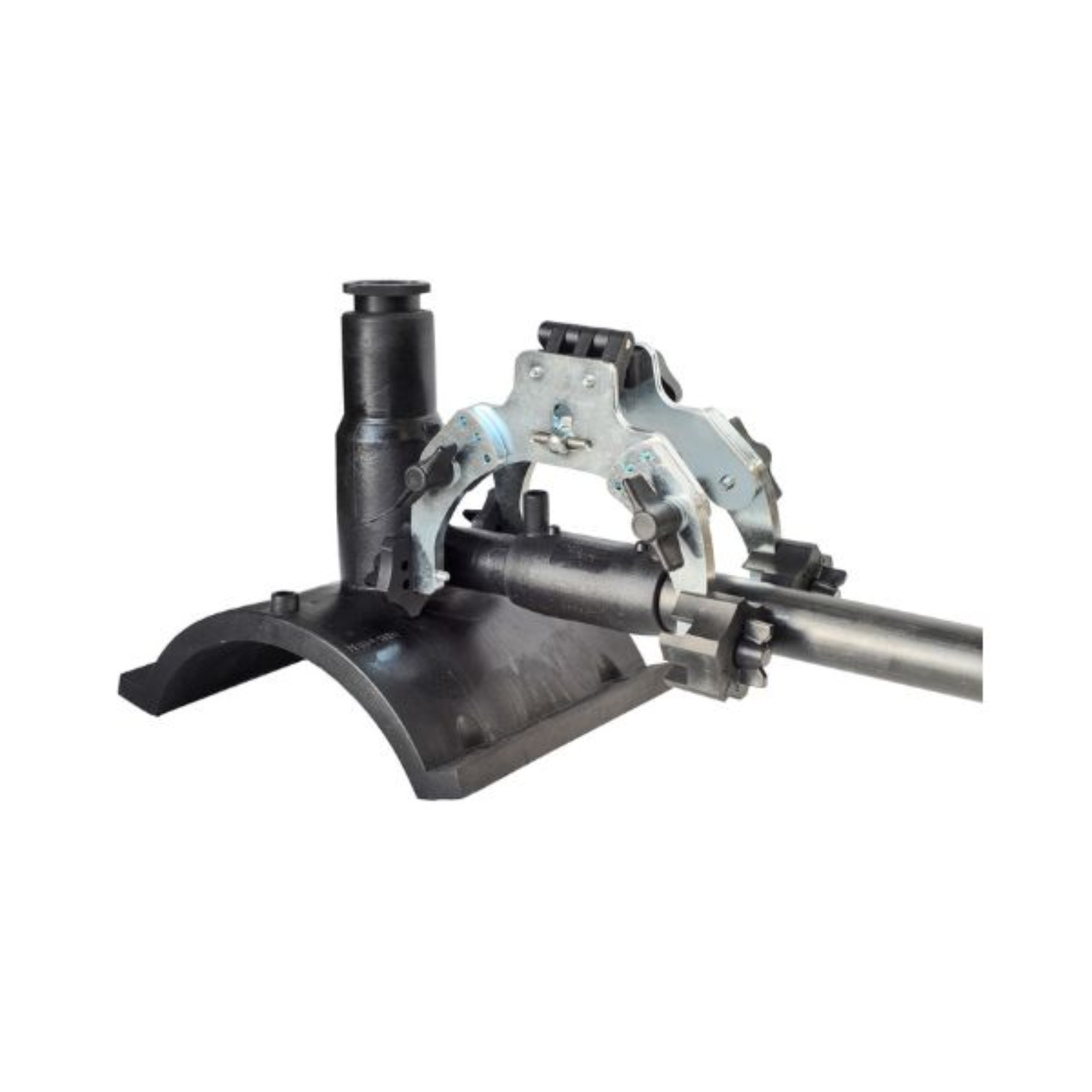

Thanks to its particular clamp design, it is possible to aligne pipes and fittings in a straight position or at 45° and 90°.
Kela is equipped with two plates: a wide and a narrow one, to be used according to the application.
The wide plates are used for the straight alignement and give a better grip and positioning, while the narrow plates are designed to make Kela more compact and therefore easier to use in the 45° and 90° application, as well as in narrow working conditions or electrofusion saddles welding.
The working range can be easily adjusted thanks to these interchangeable plates.
Kela is supplied with a transport bag and it is available in metric version with working range Ø 16 ÷ 63 mm;
in inches CTS: Ø ½” ÷ 2” CTS
in inches IPS: Ø ½” ÷ 2” IPS
