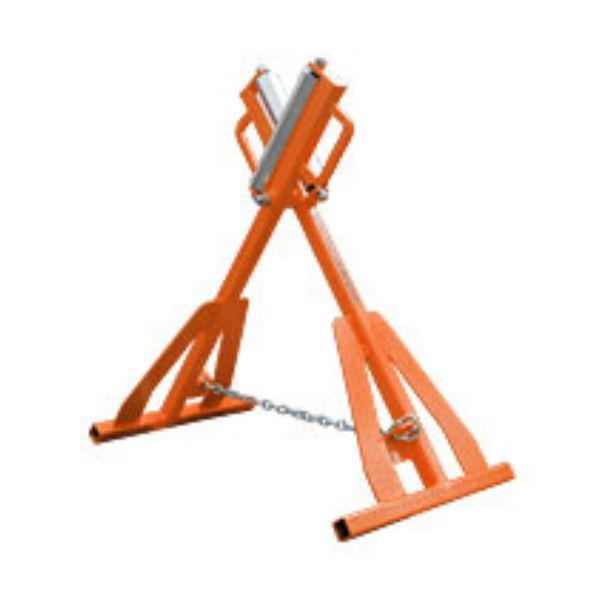

HS ROLLERS

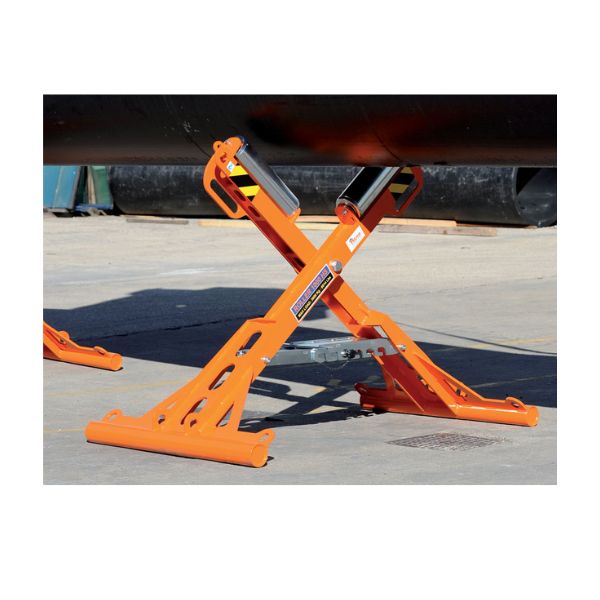

ROLLER HS, this device is essential for supporting the pipes while they are being welded with the butt fusion machines. The rollers minimise pipe friction and drag force no matter which is the construction site condition.
Special design for ALL TERRAIN and TRAILER LINE.
- Delivered across India
- Operator training offered
- 1 Year Warranty
- Call +91 9003096815 for Queries
ROLLER HS, this device is essential for supporting the pipes while they are being welded with the butt fusion machines. The rollers minimise pipe friction and drag force no matter which is the construction site condition.
Special design for ALL TERRAIN and TRAILER LINE.

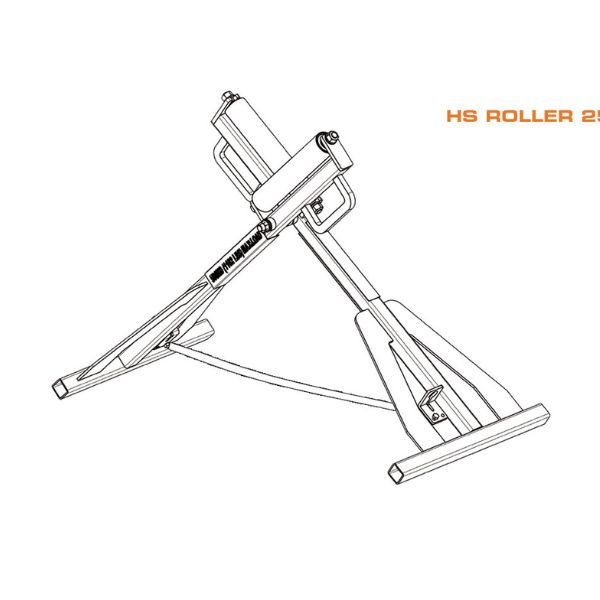

– HS ROLLER 250 which can sustain pipes up to Ø 250 mm 8″ IPS

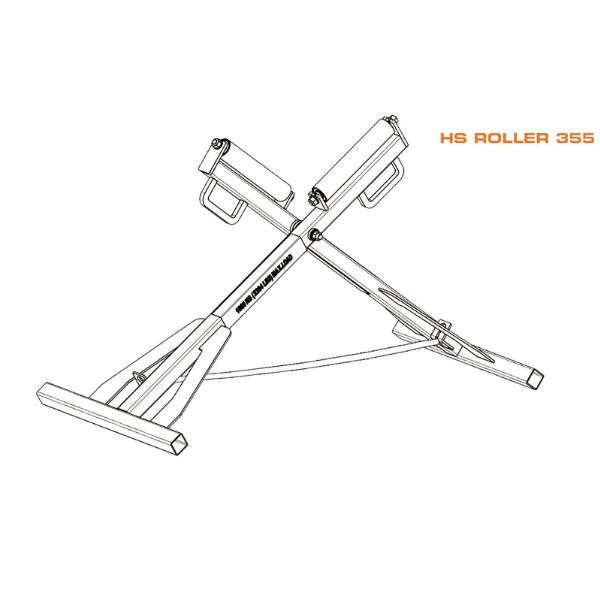

– HS ROLLER 355 with a working range up to Ø 355 mm 14” IPS
– HS ROLLER 630 with a working range up to Ø 630 mm 24” DIPS
– HS ROLLER 1000 with a working range up to Ø 1000 mm 36” DIPS
| HS ROLLER 250 | |
| Working range | max Ø 250 mm 8″ IPS |
| Dimensions | 1150 x 500 x 756 mm |
| Weight | 26 Kg |
| Weight capacity | 500 Kg |
| HS ROLLER 355 | |
| Working range | max Ø 355 mm 14″ IPS |
| Dimensions | 1421 x 600 x 818 mm |
| Weight | 33 Kg |
| Weight capacity | 1000 Kg |
| HS ROLLER 630 | |
| Working range | max Ø 630 mm 24″ DIPS |
| Dimensions | 1766 x 800 x 982 mm |
| Weight | 55 Kg |
| Weight capacity | 2000 Kg |
| HS ROLLER 1000 | |
| Working range | max Ø 1000 mm 36″ DIPS |
| Weight | 140 Kg |
| Weight capacity | 3000 Kg |
