Heating Plates

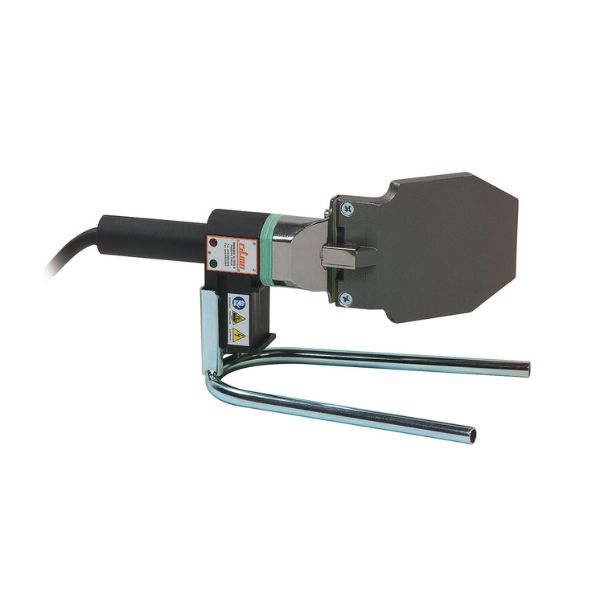

Heating plates – series of manual instruments equipped with an aluminum heating plate Teflon-coated (PTFE) and a practical heat-insulated plastic handle. Available in two versions: one with a fixed mechanical thermostat (TF) and one with an adjustable electronic thermoregulator (TE).

Technical features:

Materials TE version:
HDPE – PP – PVC – PVDFTF version:
HDPE
Working range TP 125 – max Ø 125 mm
TP 125/45° – max Ø 110 mm
TP 200 – max Ø 180 mm
TP 300 – max Ø 280 mm
Power supply 230 V single phase 50/60 Hz
Total abdorbed power TP 125 – 700 W
TP 125/45° – 500 W
TP 200 – 1200 W
TP 300 – 1300 W
Working temperature TE: 180° ÷ 280° C
TF: 210° C ± 5%
Dimensions and weight TP 125 – 140x50x410 mm – 2,16 Kg
TP 125/45° – 140x130x370 mm – 1,95 Kg
TP 200 – 200x50x440 mm – 3,21 Kg
TP 300 – 300x50x550 mm – 5,09 Kg
Request Quote
  • Check Mark Delivered across India
  • Check Mark Operator training offered
  • Check Mark 1 Year Warranty
  • Check Mark Call +91 9003096815 for Queries
    Guaranteed Safe And Secure Delivery

    Heating plates – series of manual instruments equipped with an aluminum heating plate Teflon-coated (PTFE) and a practical heat-insulated plastic handle. Available in two versions: one with a fixed mechanical thermostat (TF) and one with an adjustable electronic thermoregulator (TE).
    The heating plates are available in different shapes and working ranges according to the operator’s requirements.

    Available in two versions: one with a fixed mechanical thermostat (TF) and one with an adjustable electronic thermoregulator (TE).

    Models:
    TP 125
    TP 125/45°
    TP 200
    TP 300

    STANDARD COMPOSITION
    – Heating plate with a fork support

    ON REQUEST (ACCESSORIES)
    -Box or steel case
