FM 630/125

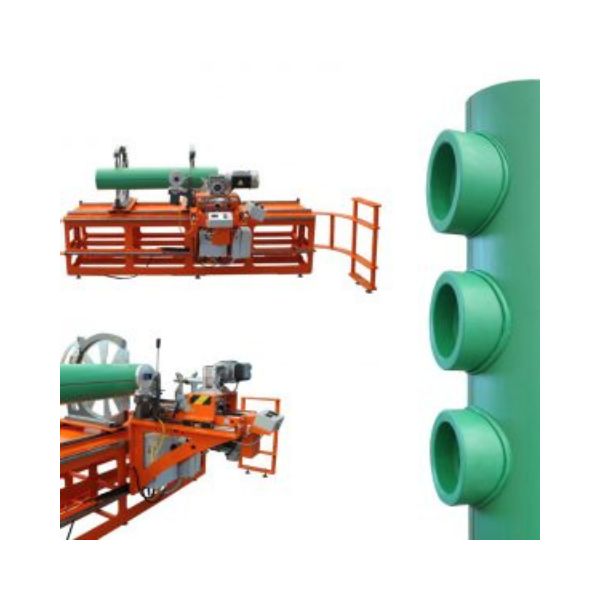

FM 630 – 125 FITTINGS’ MANIFOLD

Workshop Machine for the fabrication of PP-R manifolds
Materials: PP; PP-R

Technical features:

Materials PP-R
Working range Main pipe OD range
Ø 50 ÷ 630 mmReduced pipe OD range
Ø 20 ÷ 125 mm
Inserts 50 ÷ 560 mm
Power supply 230 V Single Phase 50/60 Hz
Total absorbed power 3100 W
Weight 1100 Kg
Dimension 3967 x 1895 x 1571 mm
Request Quote
  • Check Mark Delivered across India
  • Check Mark Operator training offered
  • Check Mark 1 Year Warranty
  • Check Mark Call +91 9003096815 for Queries
    Guaranteed Safe And Secure Delivery

    FM 630 – 125 FITTINGS’ MANIFOLD

    Workshop Machine for the fabrication of PP-R manifolds
    Materials: PP; PP-R

    The machine is composed by a support frame with two self-centering clamps that are free to slide independently along
    the whole length. An off-set work station also free to move along the frame where are positioned: the welding machine, the driller, two control panels and the power supplier.

    The drilling machine always guarantees a centered hole in the middle of the pipe. The trolley system of the work station, with an electric motion regulated by a potentiometer, always allows easy operations during the movement, drilling and welding phases. The machine is equipped with two anti-tilt systems at the sides.

    Hole saws
    Dimensions of hole saws and connection shafts depend on physical characteristics of the PP-R fittings.

    Welding sockets
    Saddle sockets available for different brands.
