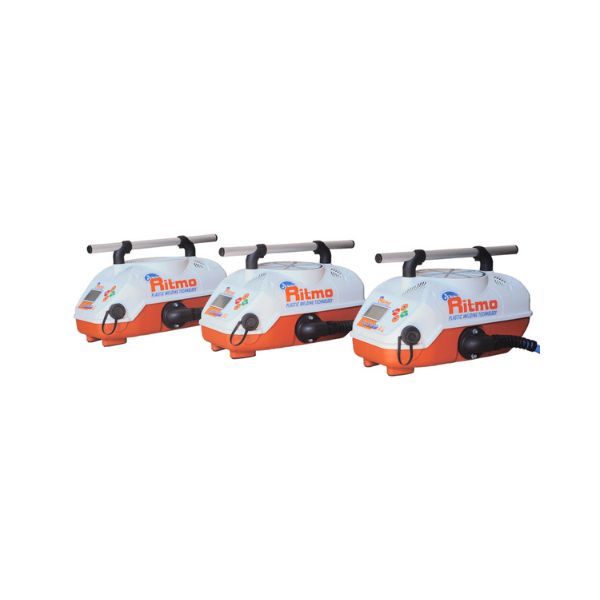

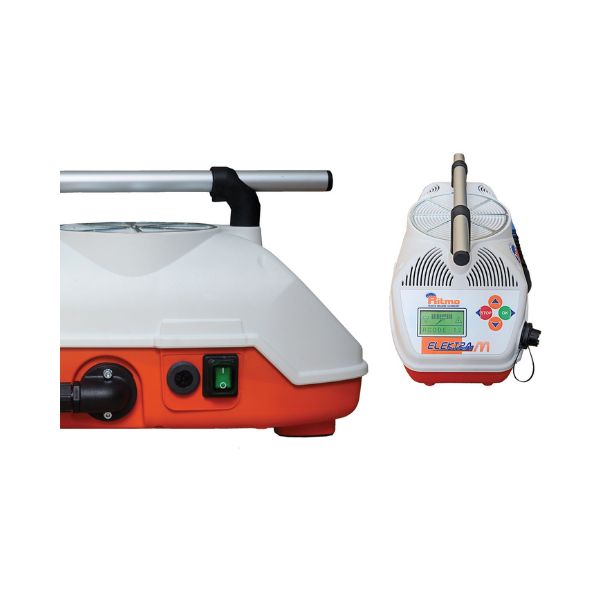

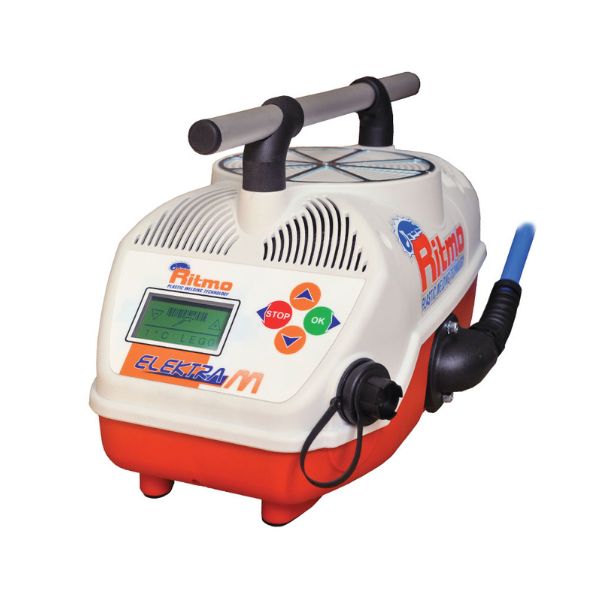

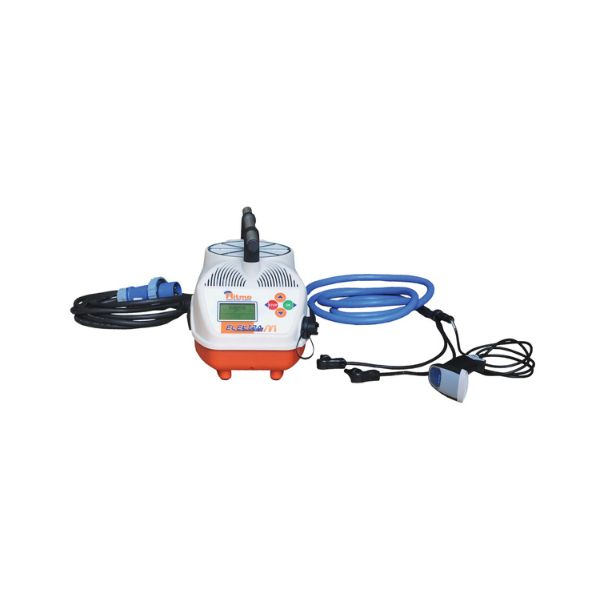

Elektra M

ELEKTRA M is an universal electrofusion machine characterized by high performance and reduced weight. It is available in two different power supplies: 230V and 110V. The welding machine has been designed to weld EF fittings up to OD 315 mm (230 V version) or 500 mm (110 V version) for PE, PP, PP-R high pressure pipelines. It can weld EF fittings within the range 8 ÷ 48 V. Provided with:

Materials HDPE/PP/PP-R
Working range Ø 20 ÷ 500 mm – 1/2″ IPS ÷ 20″ IPS (110 V)
Ø 20 ÷ 315 mm –  1/2″ IPS ÷ 12″ IPS (230 V)
Power supply 110 V ±15% single phase 50/60 Hz
230 V ±15% single phase 50/60 Hza
Total abdorbed power (60% Duty Cycle output) 2200 W (110 V)
2300 W (230 V)
Max output current 80 A – 110 V
100 A – 230 V
Working temperature range -20° +50° C
Memory capacity 4000 reports
Protection degree IP 54
Dimensions 246 x 390 x 240 mm
Dimensions carryng case 290 x 445 x 295 mm
Weight machine body + welding and
power supply cable + laser scanner		 9,2 Kg
Request Quote
  • Check Mark Delivered across India
  • Check Mark Operator training offered
  • Check Mark 1 Year Warranty
  • Check Mark Call +91 9003096815 for Queries
    Guaranteed Safe And Secure Delivery
