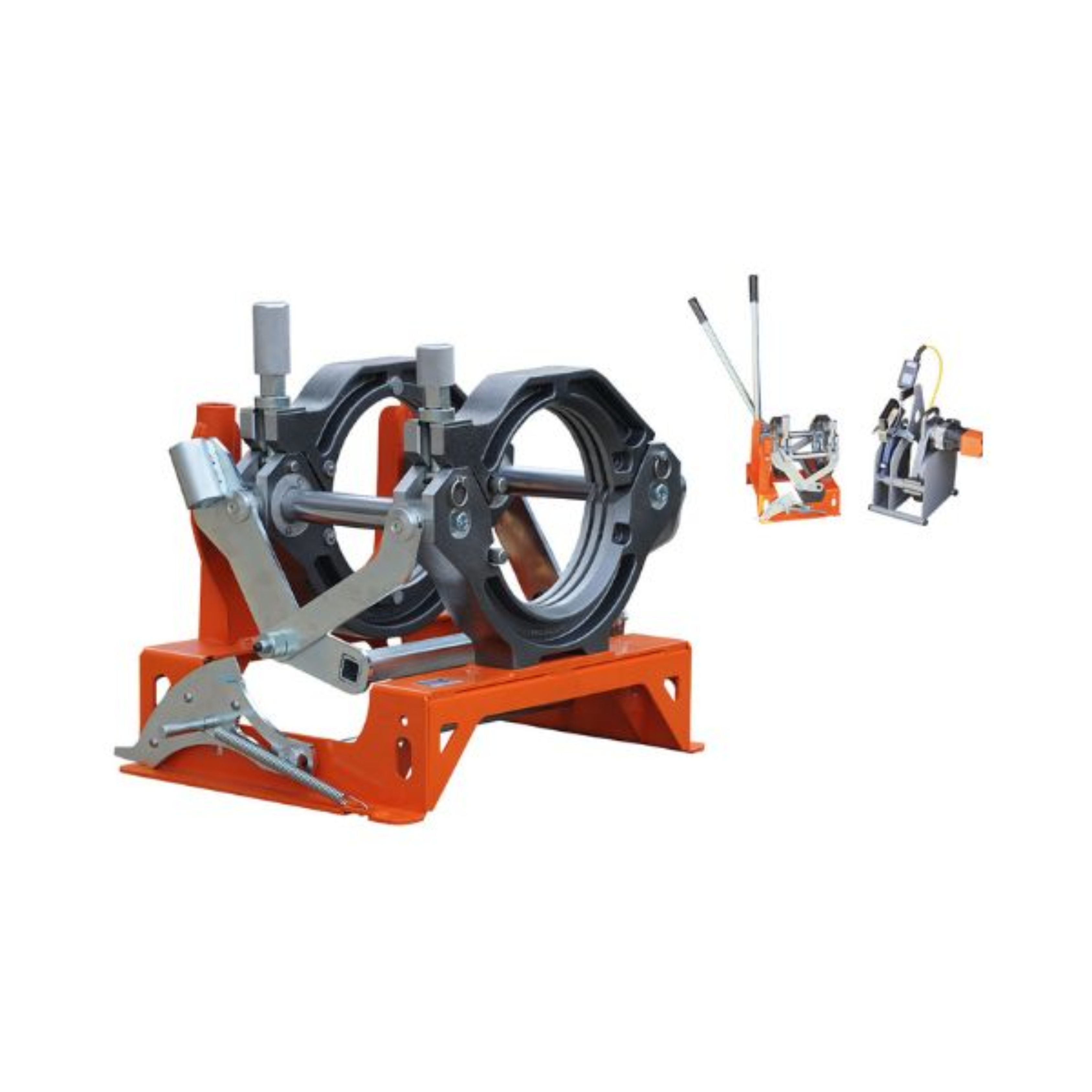

Delta 200 M

DELTA 200 M is a manual butt fusion welder for pipes up to Ø 200 mm (6″ DISP). Leading particulars are the restricted weight, minimum overall dimensions and versatility.

Materials HDPE/PP
Working range Ø 63 ÷ 200 mm
Power supply 110 V – 230 V Single phase 50/60 Hz
Total absorbed power 3000 w
Working temperature 180° ÷ 280° C
Outside temperature range -10° ÷ 40° C
Weight machine body 30 Kg
Dimension 529 x 499 x 1100 mm
20.8″ x 19.6″ x 43.3″
Request Quote
  • Check Mark Delivered across India
  • Check Mark Operator training offered
  • Check Mark 1 Year Warranty
  • Check Mark Call +91 9003096815 for Queries
    Guaranteed Safe And Secure Delivery

    DELTA 200 M is a manual butt fusion welder for pipes up to Ø 200 mm (6″ DISP). Leading particulars are the restricted weight, minimum overall dimensions and versatility.

    Featuring:
    a machine body, two clamps, an extractable electric milling cutter provided with a safety micro-switch, an extractable heating plate (with an independent thermometer to see the
    real working temperature and an electronic thermoregulator “Digital Dragon” with display), DELTA 200 M have a locking device clamps  aligner that helps the operator to apply the necessary welding force. The Digital Dragon is an high precision electronic thermoregulator (± 1° C accuracy) with digital display and regulating buttons. This new system includes Led indicators to check if the machine is working normally (live tension and working temperature), contingent probe’s failures and/or temperature anomalies.

    ON REQUEST (ACCESSORIES)
    – Clamps’ inserts from Ø 63 to 180 mm;  2″ ÷ 6″ IPS; 3″ ÷ 6″ DIPS
    – Lateral support
    – Trolley for machine transportation and support
    – Rollers
