Delta 1000 trailer

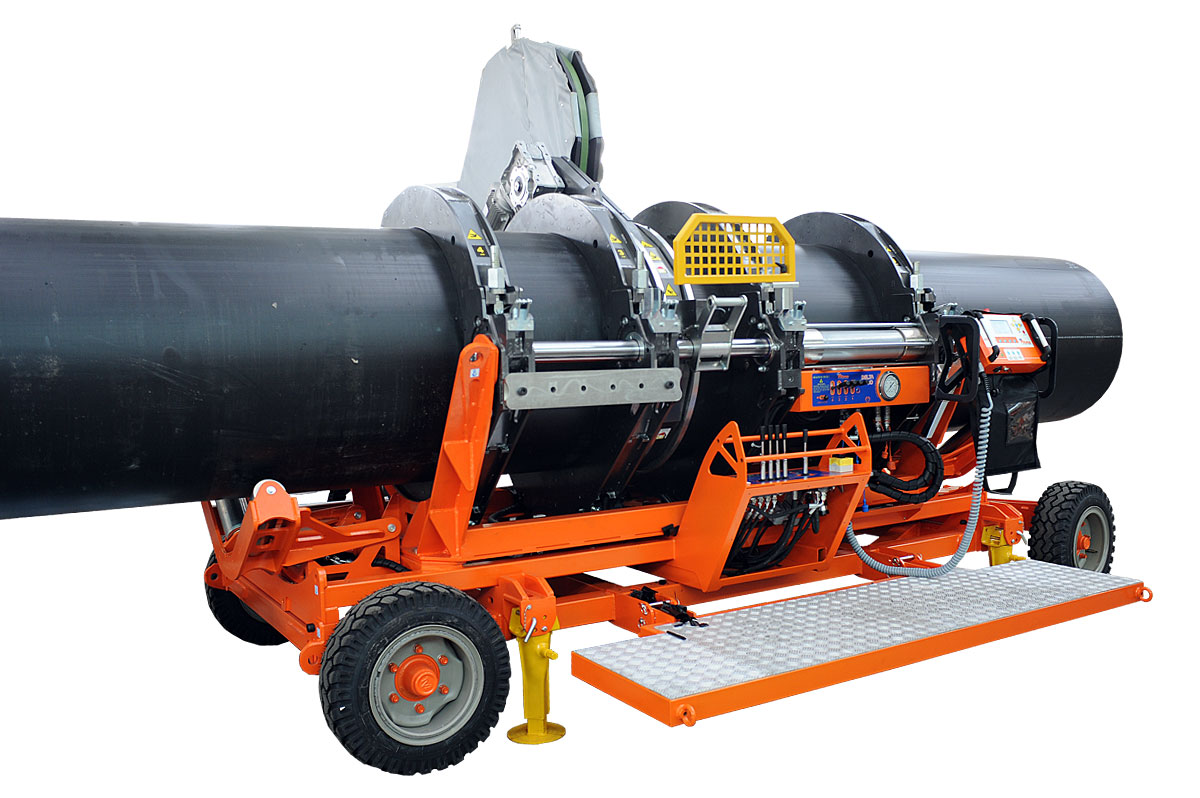

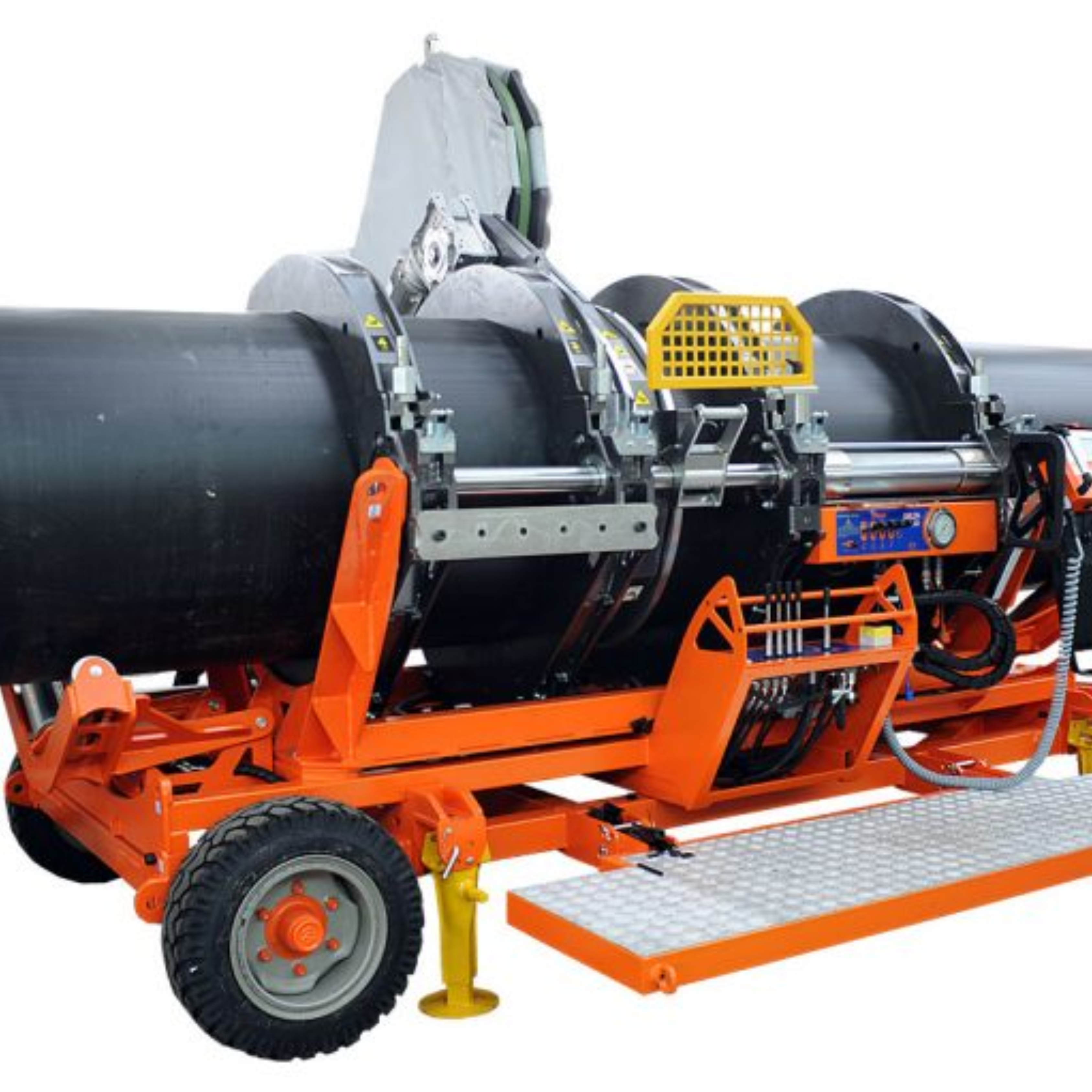

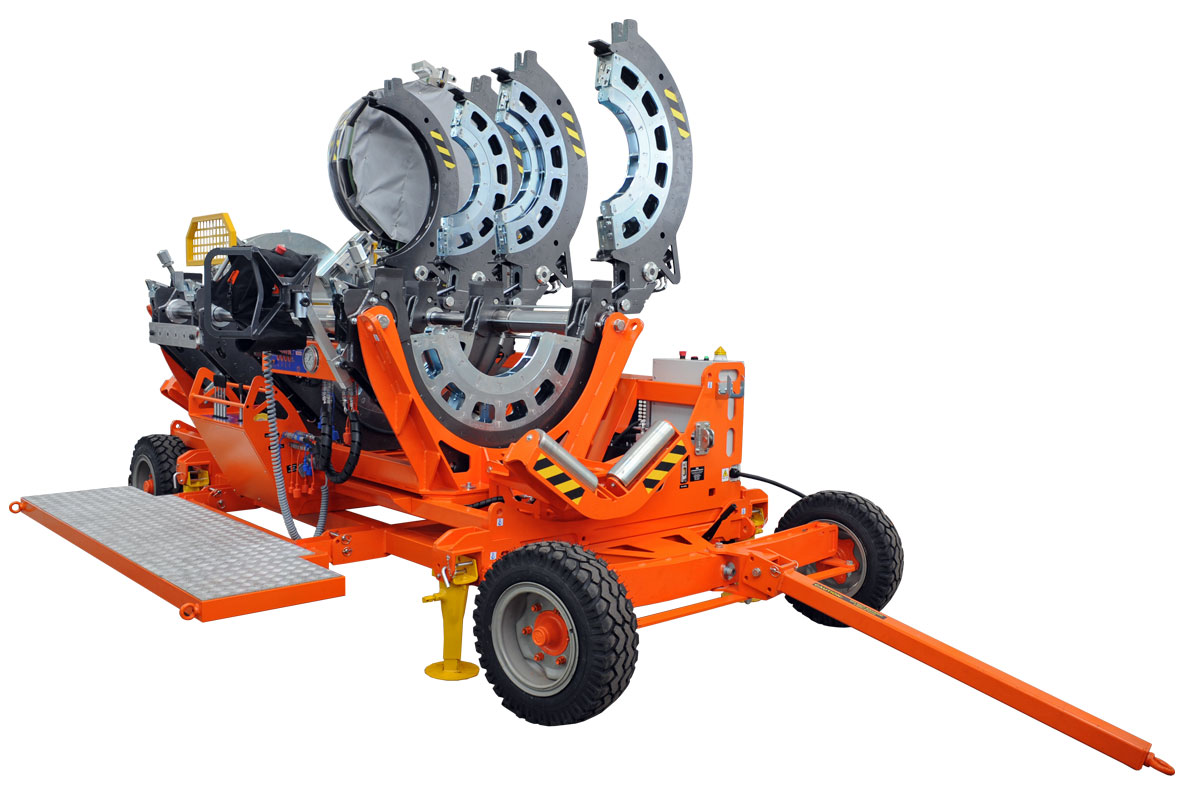

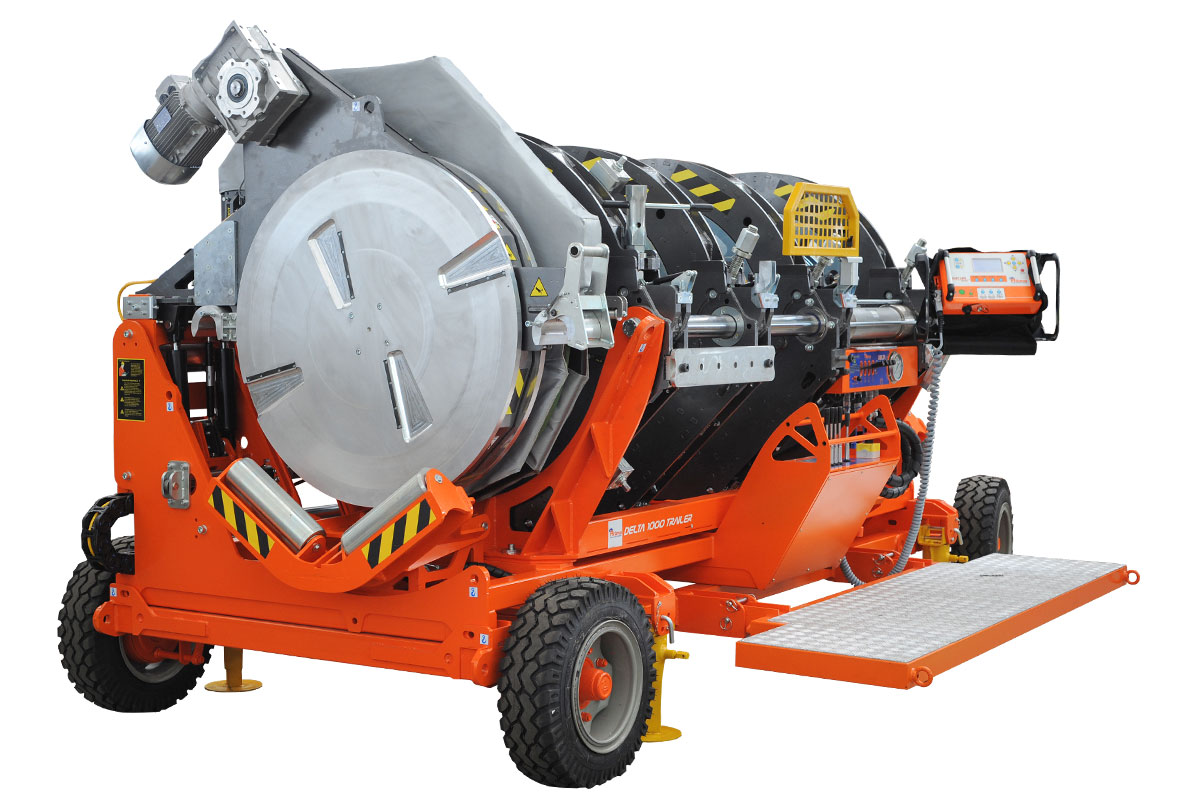

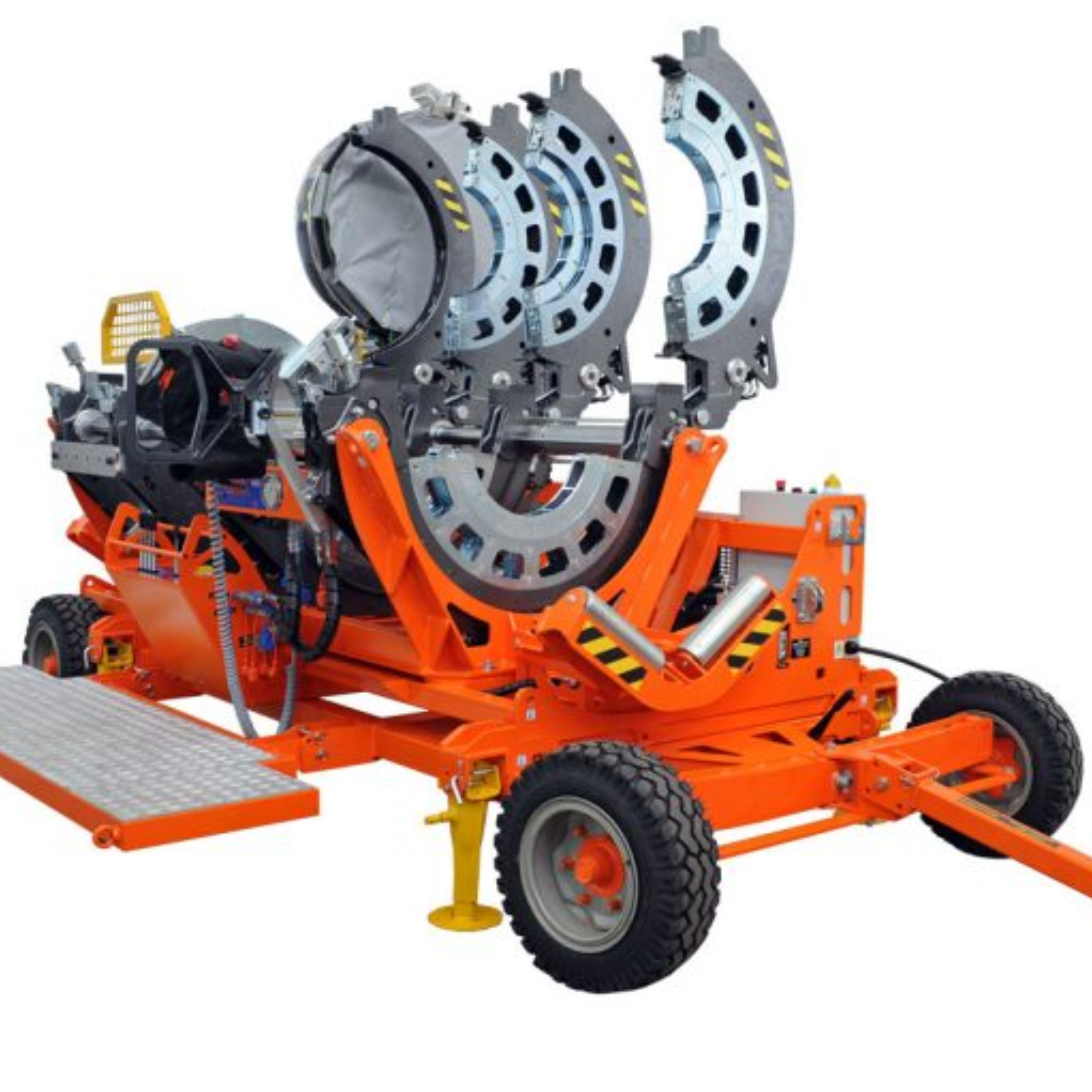

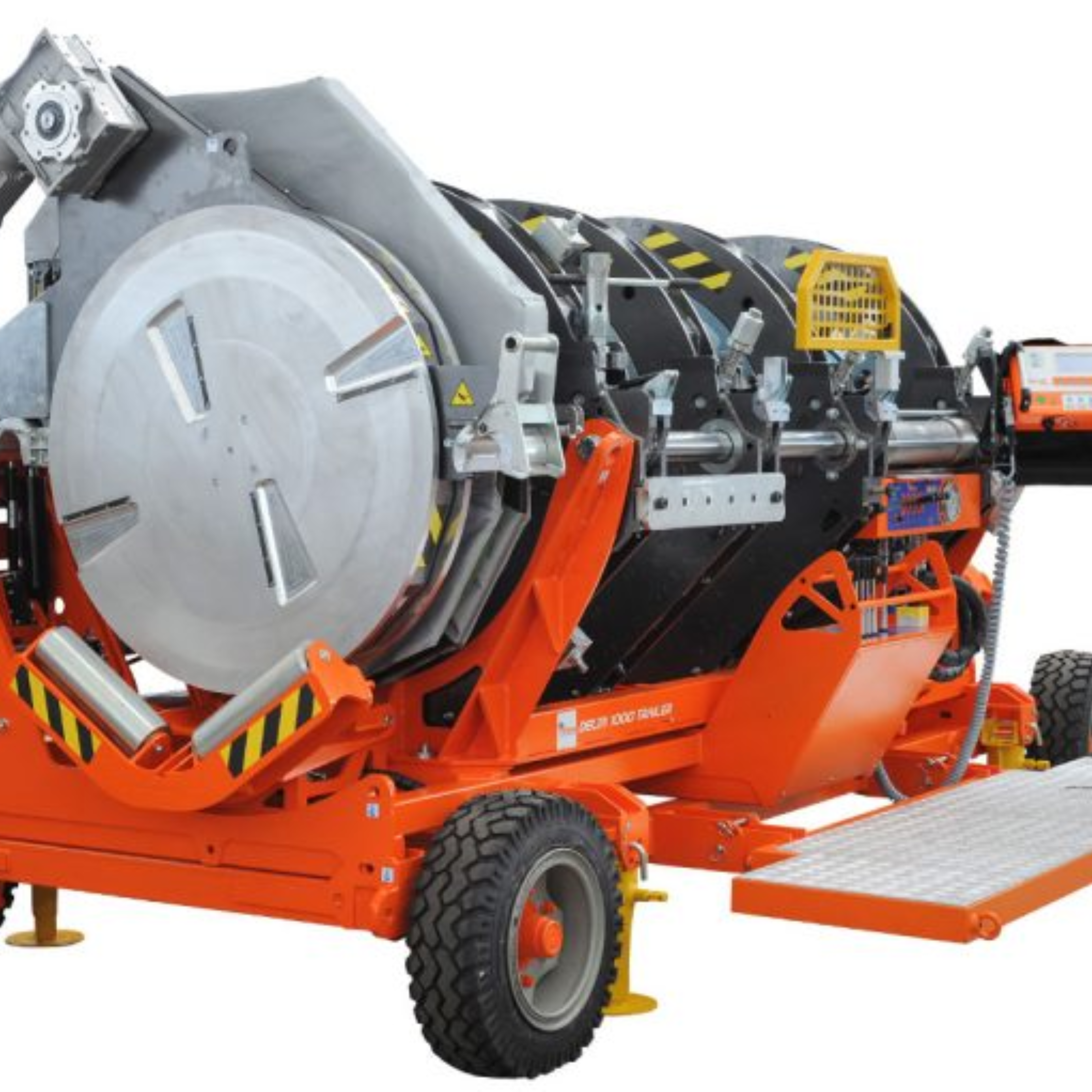

DELTA 1000 TRAILER is a self-aligning fusion machine, suitable for welding thermoplastic pipes for the transport of water, gas and other fluids under pressure, up to Ø 1000 mm ( 36″ IPS/DIPS).
Machine can fuse pipes according to the ISO 21307 High Pressure standard.

Standard machine features:

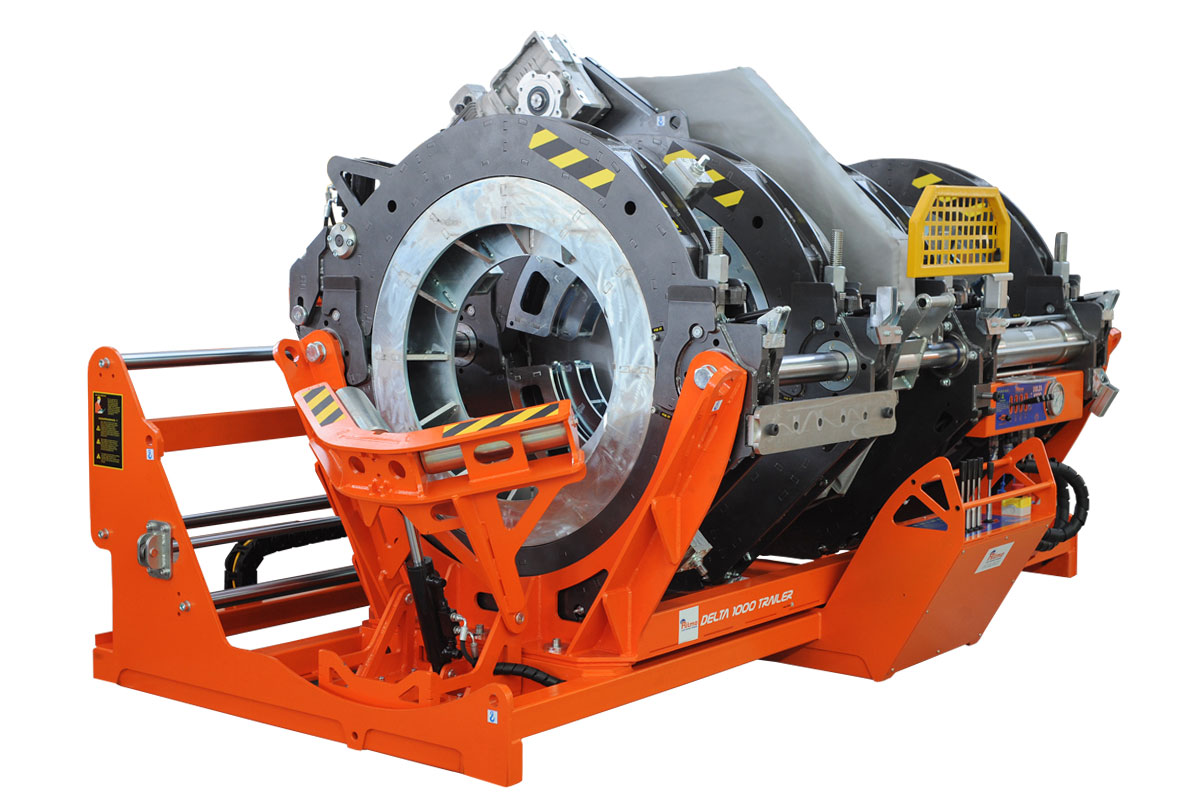

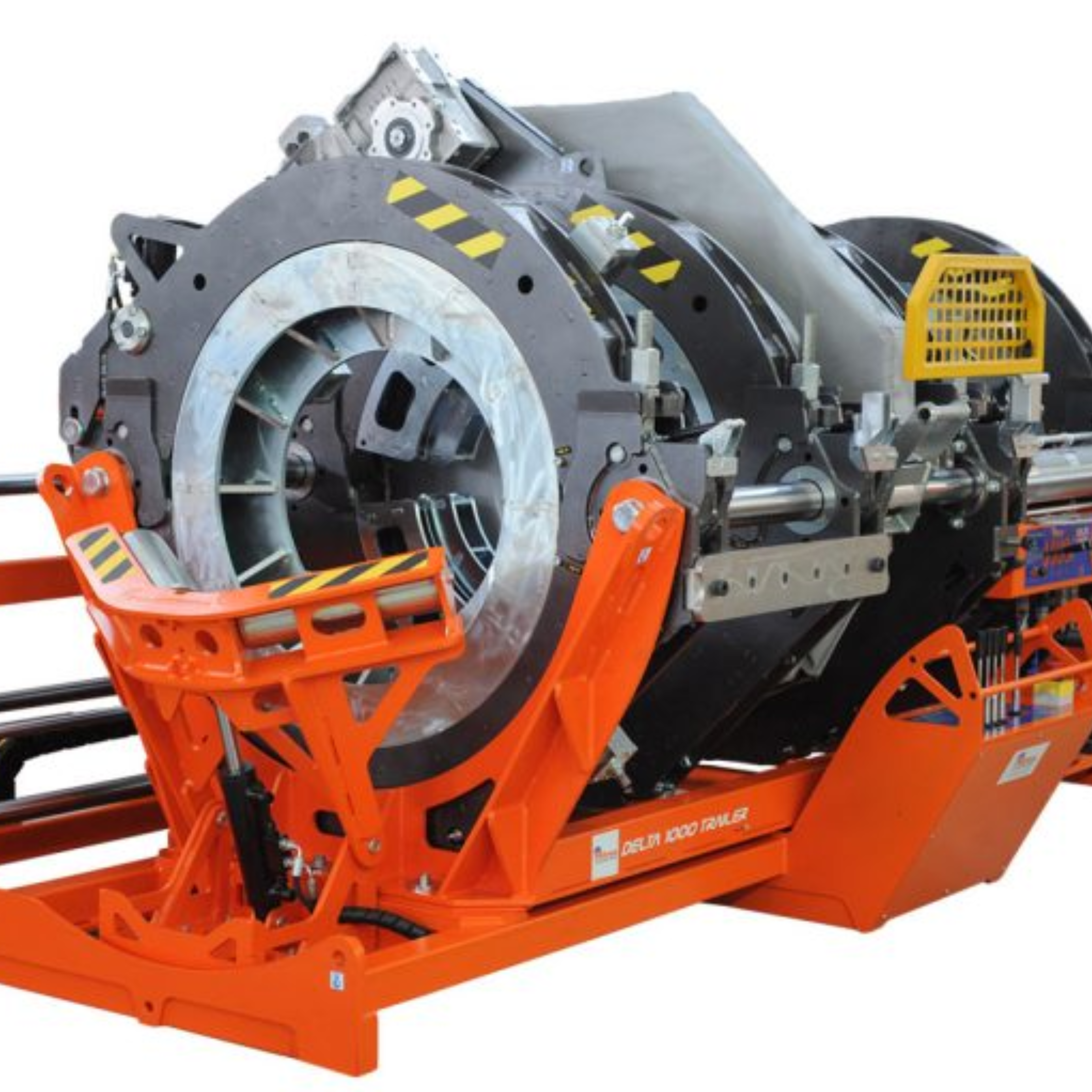

– Machine body mounted on a 4 wheeled chassis, easily removable for working in tight spaces; steel hydraulic clamping with the fast-locking inserts, which allows to place and remove inserts in seconds; self detaching device: helps removing the heating plate during welding procedure.

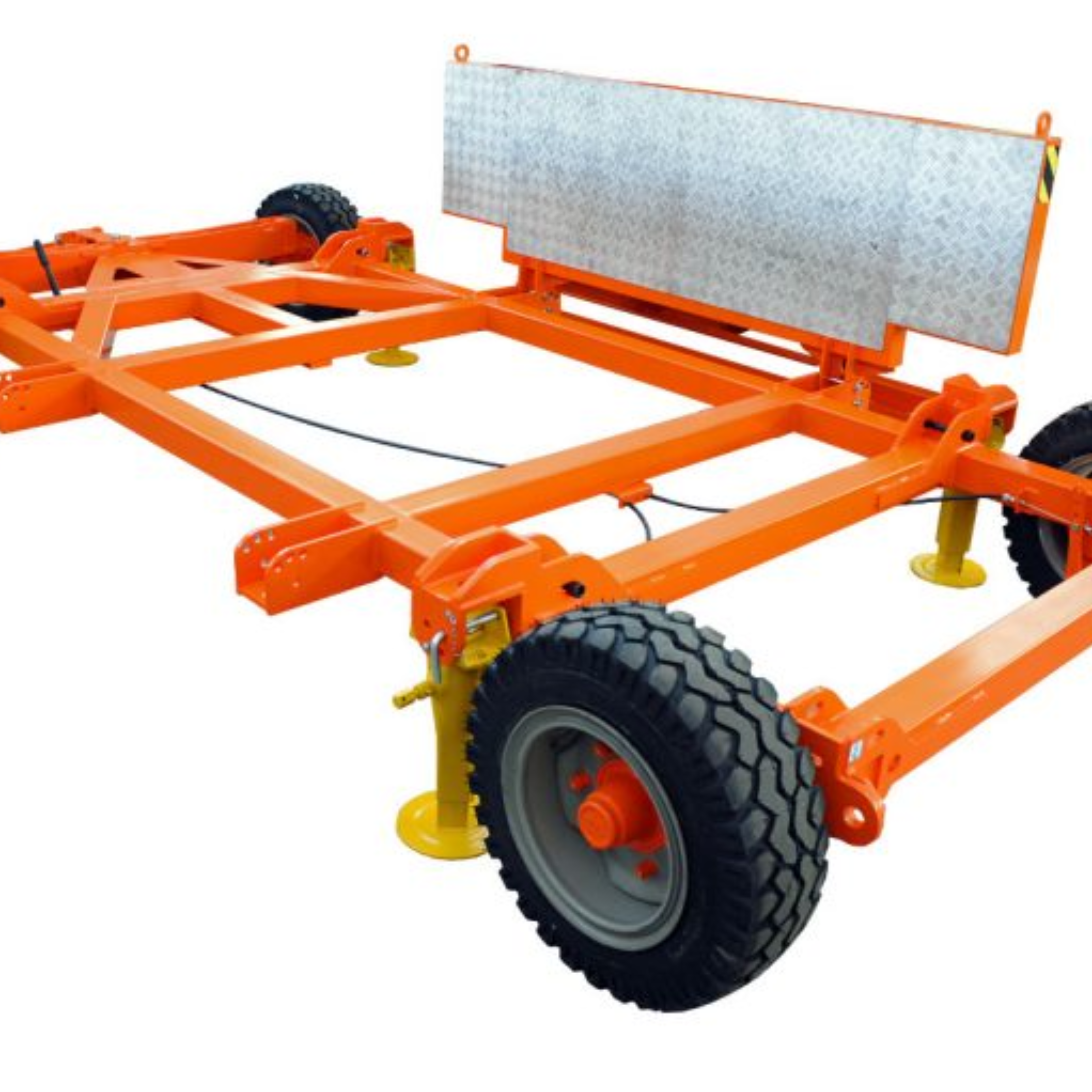

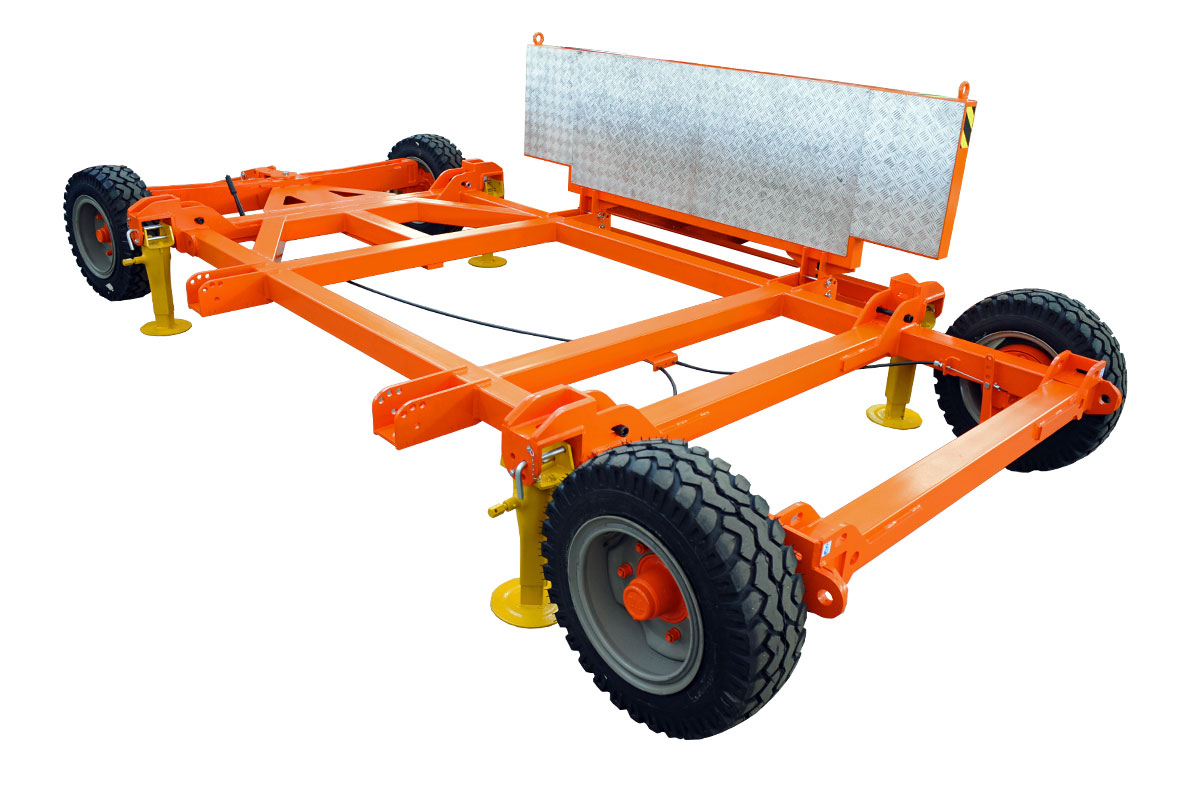

– 4 wheeled chassis with 2 steering wheels and a safety brake
– An on-board hydraulic electric facer that is equipped with a safety microswitch to prevent from accidental starts, a thermal circuit breaker to protect motor

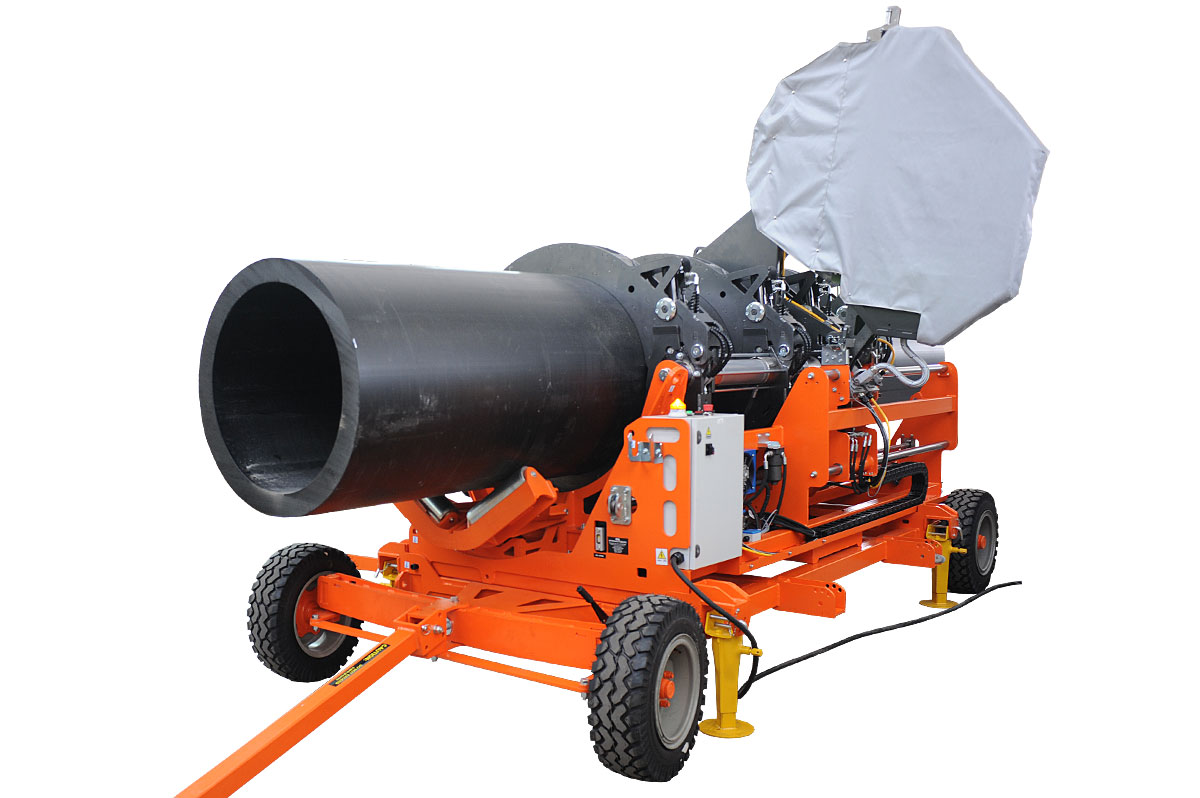

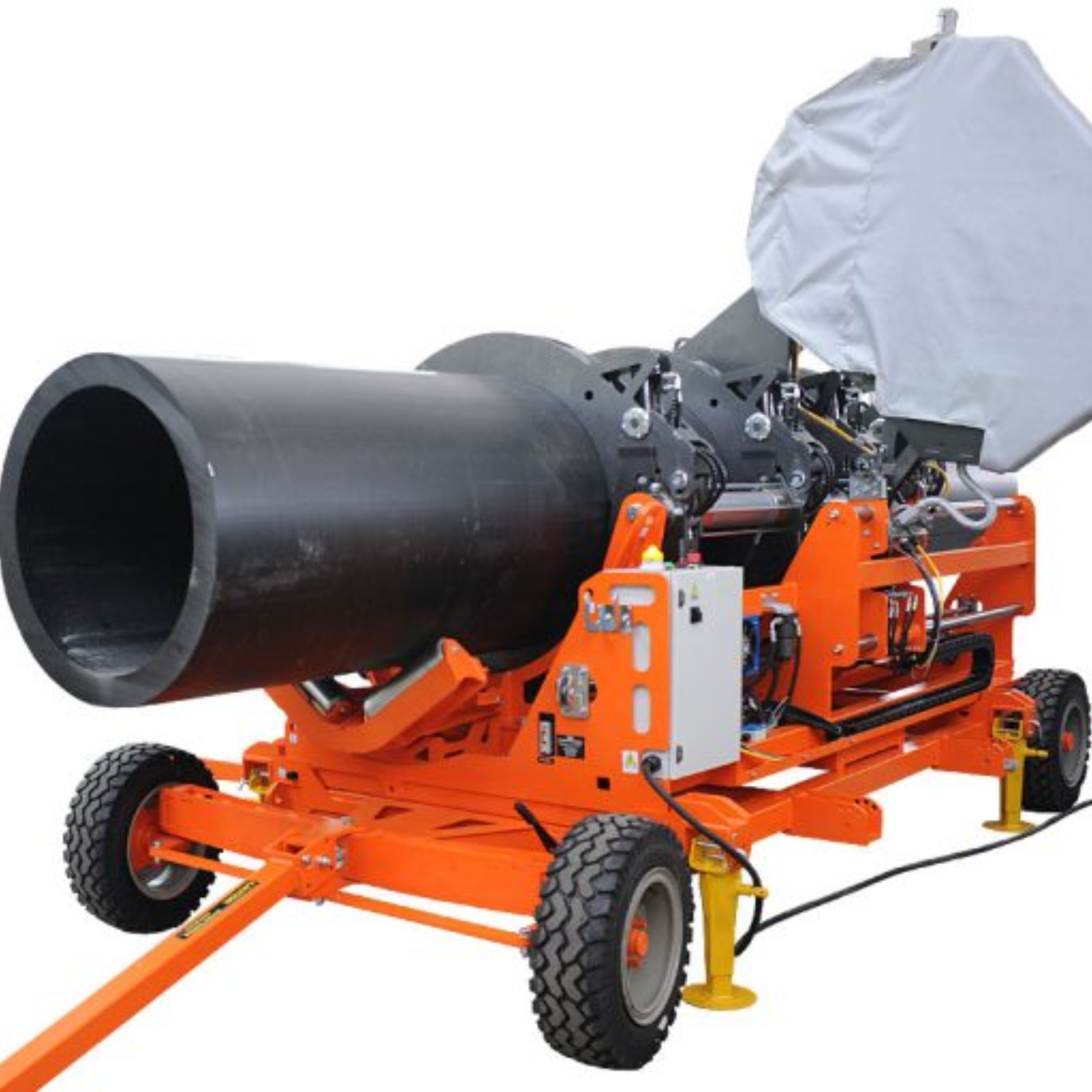

– An on-board hydraulic heating plate Teflon-coated (PTFE) which comes with a high-temperature-proof bag, which also avoid the heating element from being scratched
– An EASY LIFE control panel with a large graphic display and GPS traceability, which is also removable from the machine body to be able to weld from outside the ditch. Allows the operator to program and pilot all the welding cycle in an easy, fast and very intuitive way. Includes a data-logging system to store full welding data, downloadable through a USB port straight into PDF files. The EASY LIFE system has the capability store up to 4000 joint reports.
Possibility to pre-set 20 customized
– Two hydraulic lateral rollers
– Control panel for hydraulic movements.

DELTA 1000 TRAILER allows to easily weld fittings like elbows, tees, Y-branches and stub flanges.

ON REQUEST (ACCESSORIES)
– Clamps’ inserts from Ø 335 to 900 mm; 14″ ÷ 36″ IPS; 14″ ÷ 36 ” DIPS
– Trolley
– Tool for flange necks
– Kit serial printer
– Kit for IN-DITCH use
– Kit hoist
