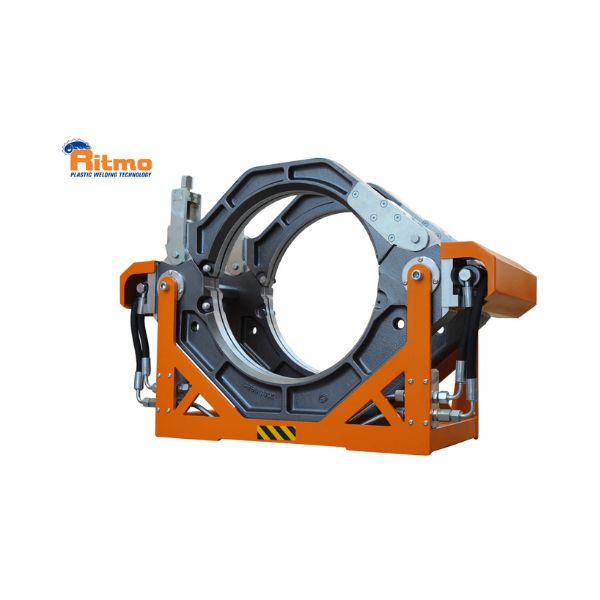

Compact 355
COMPACT 355 is a worksite machine for pre-insulated pipes in PE, HDPE, PP, from OD 125 to 355 mm.
Its small dimensions allow it to operate easily inside a dig, plus:
– the machine has a 2-clamp machine body, to lock the outer coating of the pre-insulated pipe
– its heating plate features the well known Digital Dragon high precision thermoregulator
– the electrohydraulic gearcase comes inside a protective box
– the milling cutter has a safety microswitch
- Delivered across India
- Operator training offered
- 1 Year Warranty
- Call +91 9003096815 for Queries
COMPACT 355 is a worksite machine for pre-insulated pipes in PE, HDPE, PP, from OD 125 to 355 mm.
Its small dimensions allow it to operate easily inside a dig, plus:
– the machine has a 2-clamp machine body, to lock the outer coating of the pre-insulated pipe
– its heating plate features the well known Digital Dragon high precision thermoregulator
– the electrohydraulic gearcase comes inside a protective box
– the milling cutter has a safety microswitch
STANDARD COMPOSITION
Machine body, electrohydraulic gearcase, milling cutter, heating plate with high precision thermoregulator, milling
cutter/heating plate support, tool kit.
ON REQUEST
– OD Ø 125 ÷ 315 mm inserts with a Master Ø 250 mm adapter,
– Tool for flange necks.
| Materials | PE /HDPE/PP |
| Working range | Ø 125 ÷ 355 mm |
| Power supply | 110V; 230 V 50/60 Hz |
| Total absorbed power | 5100 W |
| Working temperature | 180° ÷ 280° C |
| Weight only body machines | 59 Kg |
| Weight standard composition | 144 Kg |
| Dimension machine body | 458 x 790 x 580 mm |
