Alfa 630 T

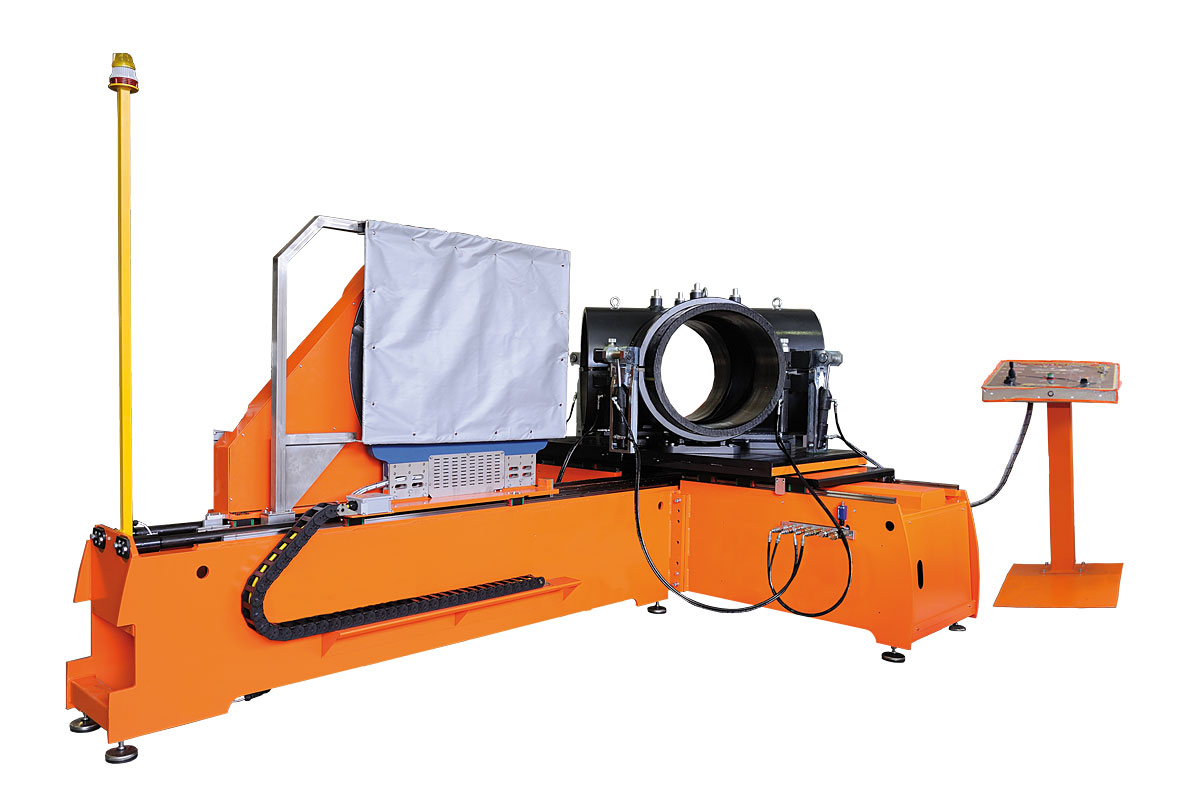

ALFA 630 T is a workshop welding machine designed to fabricate fittings by joining pipe segments, with the help of special jaws.

Elbows – Tees – Crosses – Wyes  Ø 225 ÷ 630 mm (8″  IPS ÷ 24″ DIPS)

All jaws movements are electro-hydraulically operated, both the open/close movement and the blocking mechanism.

The ALFA 630 T can also weld special and moulded fittings such as elbows, tees and flange necks, thanks to a different type of special jaws.

Composed of:
– A machine body with two hydraulically controlled carriages

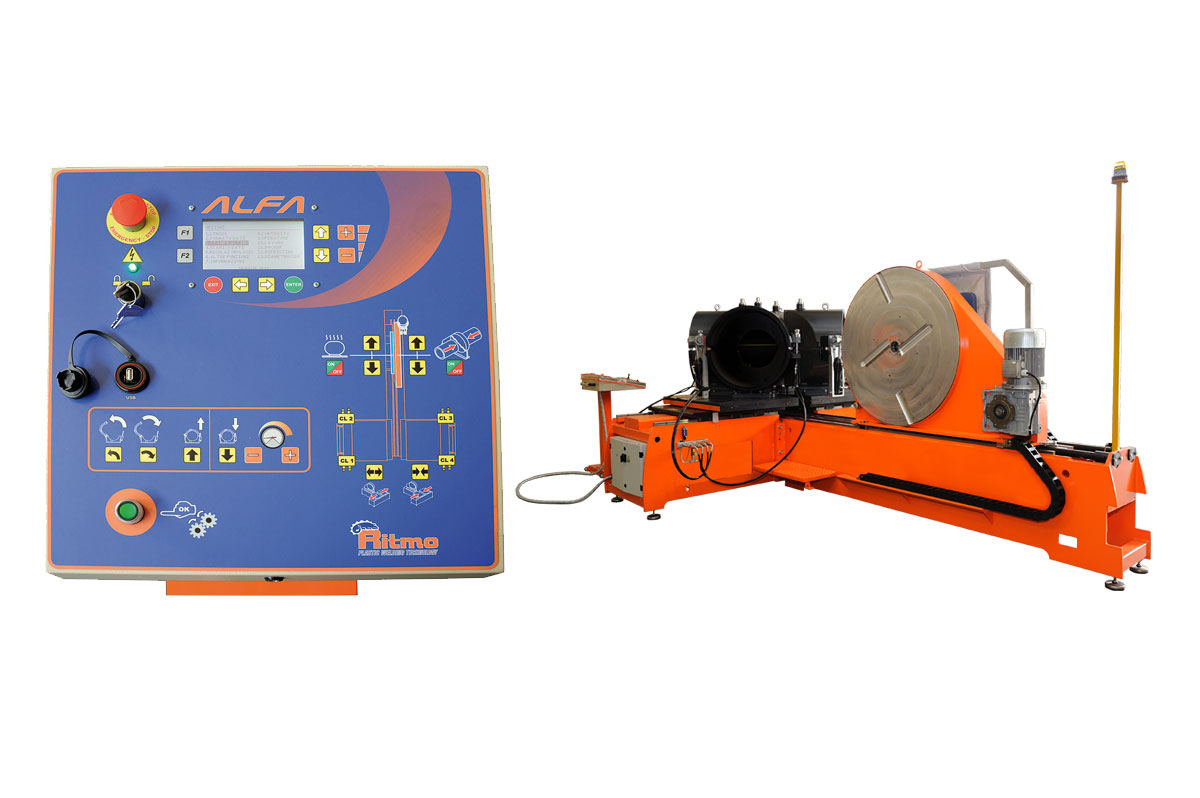

– A control panel that features the CNC system, thanks to this would eliminate any risk of error due to the operator. The CNC incorporates a data-logging that can store up to 4000 cycles.
Possibility to pre-set 20 customized.
It is possible to download the data via USB slot; PDF report
– A Teflon-coated heating plate with electrical movement (in/out) on spherical bearings guides
– A milling cutter with electrical movement (in/out) on spherical bearings guides, operated by an electrical engine

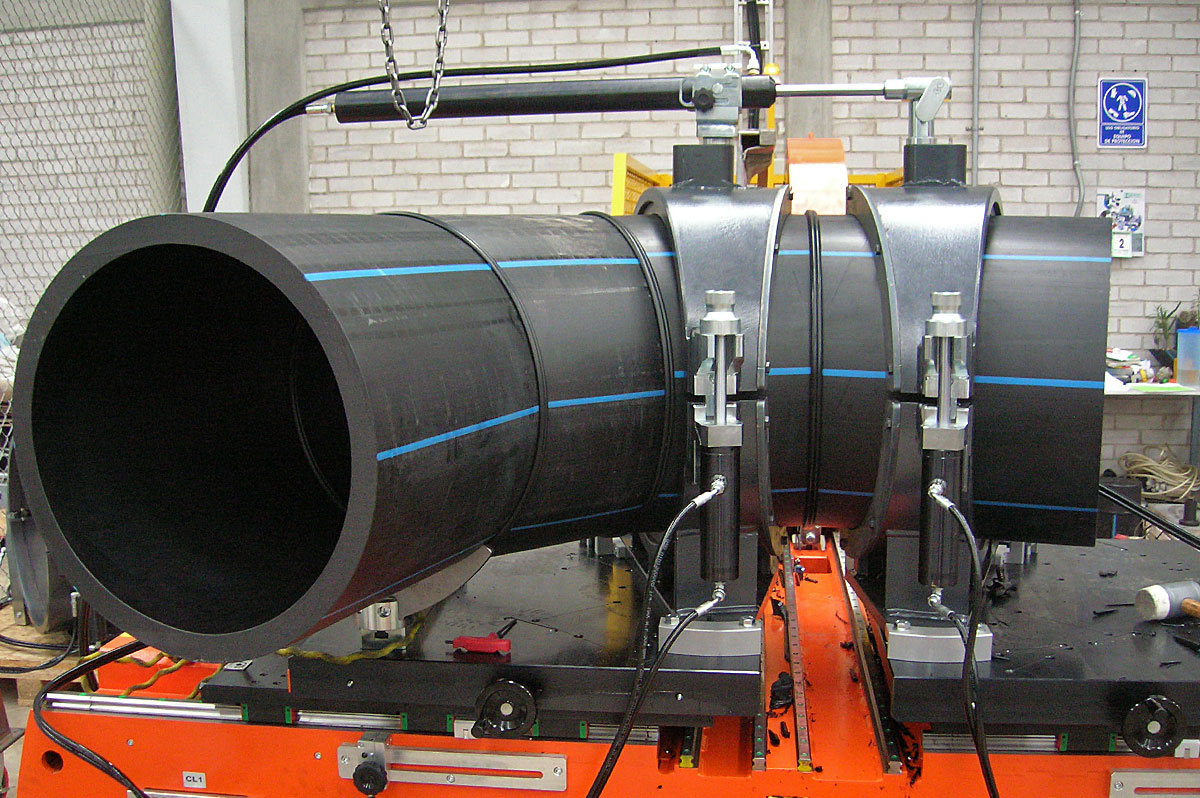

– An upper cylinder, to be positioned on the jaws, for welding extra thick pipes and/or whenever it is necessary to apply high pressures.

STANDARD COMPOSITION
– Machine body with control panel CNC
– Elbows jaws complete with inserts from Ø 315 to Ø 630 mm
– Heating plate
– Milling cutter
– Upper cylinder and service tools

ON REQUEST (ACCESSORIES)
– Elbows jaws inserts from Ø 225 to Ø 280 mm

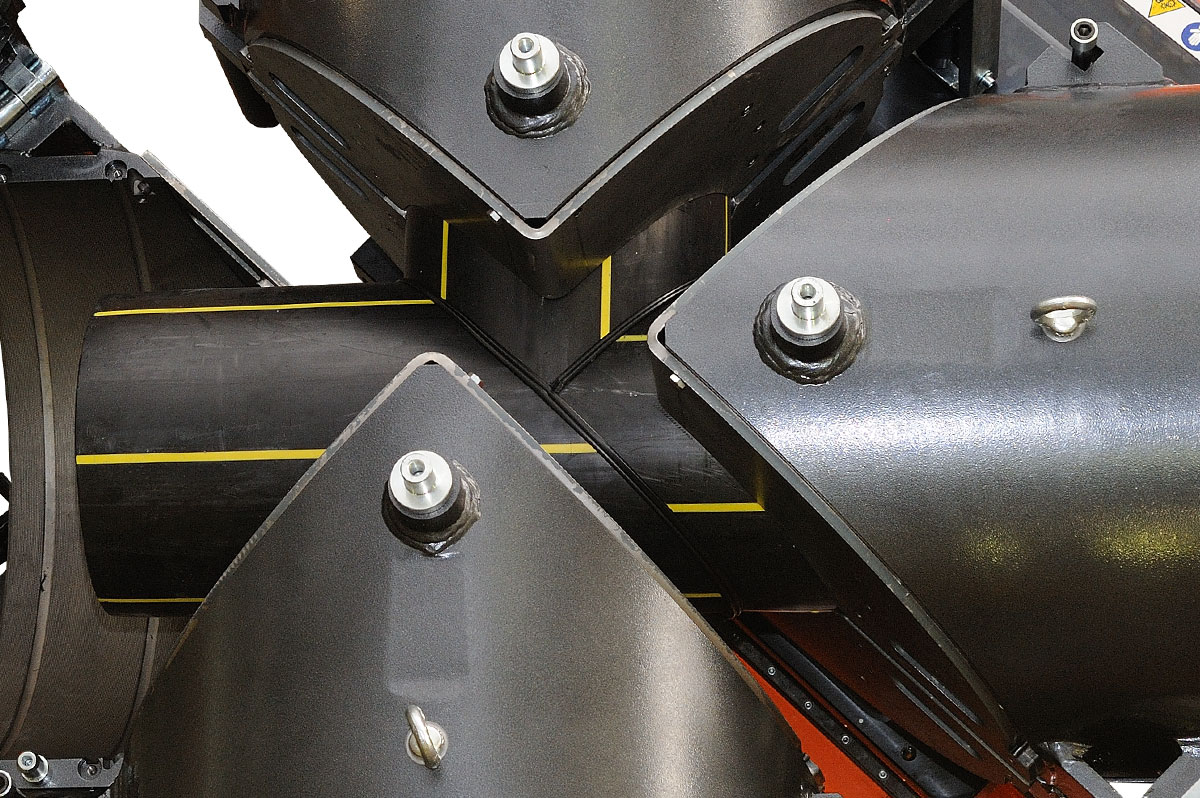

– Wyes – Tees – crosses jaws Ø 630 mm inserts from Ø 225 to Ø 630 mm
– Right or left special jaws (open manually) with inserts from Ø 315 to Ø 630 mm
