Alfa 400 Manual

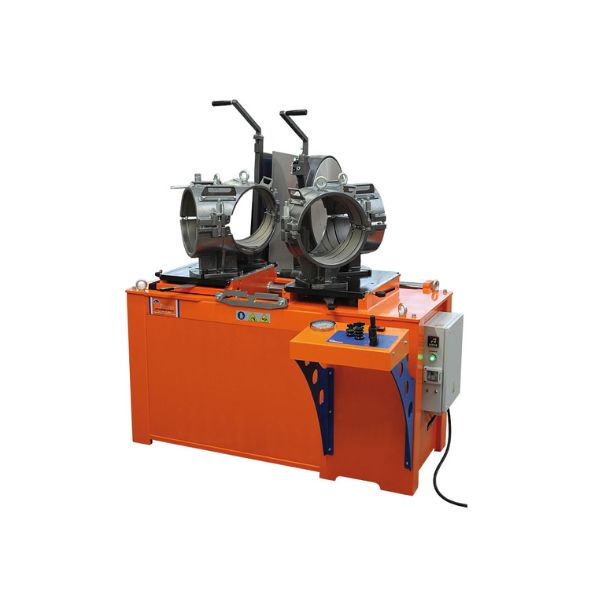

ALFA 400 Manual Workshop welding machine designed to fabricate fittings by joining pipe segments, with the help of special jaws:
- Delivered across India
- Operator training offered
- 1 Year Warranty
- Call +91 9003096815 for Queries

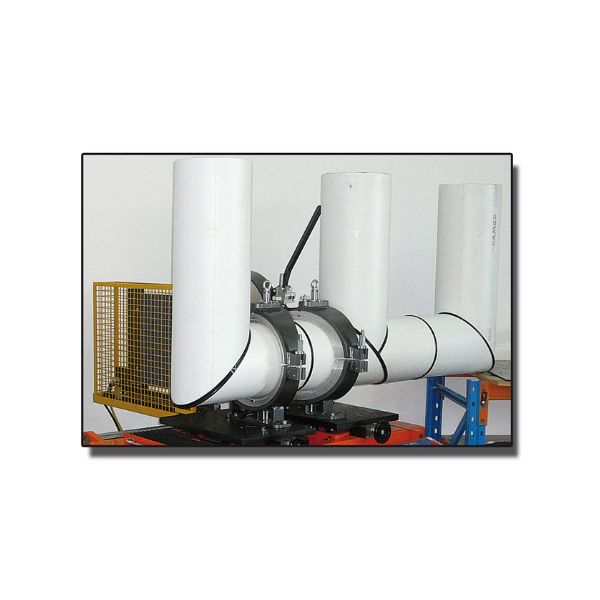

ALFA 400 Manual Workshop welding machine designed to fabricate fittings by joining pipe segments, with the help of special jaws:
elbows: from Ø 90 mm to 400 mm
tees – crosses – wyes: from Ø 90 mm to 315 mm
The ALFA 400 Manual welding plastic materials such as: HDPE, PP.

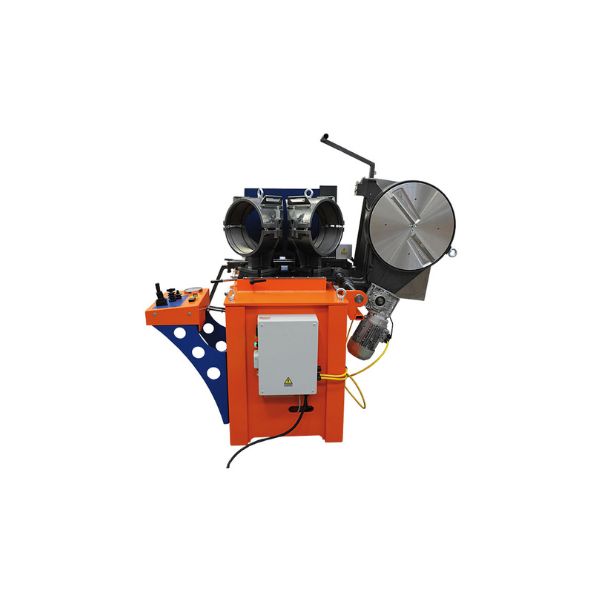

Composed of:
– A machine body with two carriages, one of which driven by a hydraulic system
– A manual hydraulic control panel for the welding cycle
– A milling cutter
– A Teflon-coated heating plate, power supply 230 V 50/60 Hz
STANDARD COMPOSITION
– Machine body with manual control panel
– Heating plate
– Milling cutter
– Service tools
– Elbows jaws Ø 400 mm with lateral support inserts from Ø 90 to Ø 355 mm
ON REQUEST (ACCESSORIES)
– Tees/crosses jaws Ø 315 mm inserts from Ø 90 to Ø 315 mm
– Wyes jaws jaws Ø 315 mm inserts from Ø 90 to Ø 315 mm
– Right or left special jaws Ø 400 inserts from Ø 110 to Ø 355 mm
– Tool for flange necks
| Materials | HDPE/PP |
| Working range | ELBOWS Ø 90 ÷ 400 mmY – TEES – CROSSES Ø 90 ÷ 315 mm |
| Welding system | Manual |
| Power supply | 230 V Single Phase 50/60 Hz |
| Total absorbed power | 7400 W |
| Working Temperature | 165° ÷ 280° C |
| Weight | 647 Kg |
| Dimension | 1490x2020x1700 mm |
